Treasure Garden AG28 Assembly And Operation Manual

11’oc cantilever
Hide thumbs Also See for AG28:

Advertisement

Quick Links

Download this manual
AG28
11'
O C
Cantilever
Assembly and Operation Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the AG28 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Treasure Garden AG28

Summary of Contents for Treasure Garden AG28

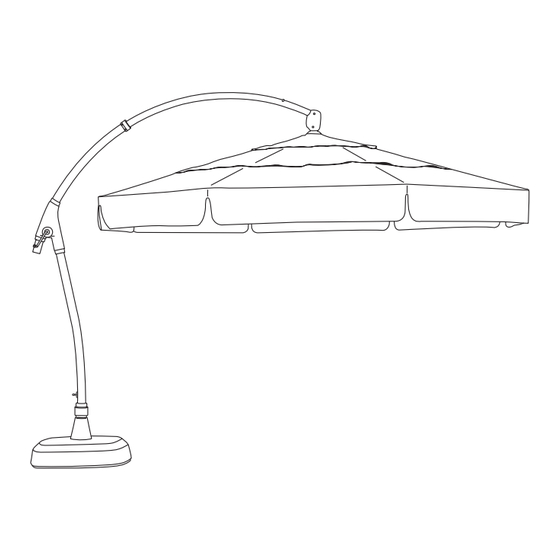

  • Page 1 AG28 11’ Cantilever Assembly and Operation Guide...
  • Page 2 We recommend a two-person team for assembly and disassembly. Save information for future reference. Prior to assembly it is important to decide on the location of the AG28 umbrella. The umbrella measures approximately 123” in height when opened.
  • Page 3 AG28 CHECKLIST - Base Shell and Base Lid J - Double Wind Vent Canopy B - Collar Base Stem K - Removable Crank Handle C - Main Frame L - Socket A - To open and extend arm D - Housing...
  • Page 4 (Fig. 3) base shell. CAUTION: Fully assembled, the AG28 umbrella weighs over 300 lbs. Moving the umbrella fully assembled will increase the risk of damage to your umbrella and can cause serious injury. We recommend a two-person team to assemble the umbrella.
  • Page 5 (Fig. 6). NOTE: To avoid damage to your base, do not over-tighten base stem. Insert clamp into base stem (Fig. 7). Attach collar to top of the base stem by engaging threading (Fig. 8). Do not completely tighten before inserting AG28 umbrella frame.
  • Page 6 S T E P 3 Assemble AG28 Frame To prevent scratching frame during assembly, lay umbrella parts on soft surface. Remove packaging from umbrella. NOTE: Keep canopy structure and frame arm strapped. Attach the bottom pole into the housing, bottom pole only fits one way. Line up holes and secure the two bolts with hexagon wren ch (Fig.
  • Page 7 S T E P 4 Opening and Closing To Open and Extend Arm: Insert crank handle fully into socket A (Fig. 13), crank handle will snap into place, then slowly crank the handle clockwise until crank handle stops and arm is fully extended outward.
  • Page 8 S T E P 5 Rotating AG28 Pull out the locking rotation knob to disengage lock (Fig. 16) and place second hand on Socket B crank system simultaneously to rotate in either direction (Fig. 17). After desired location is reached, release rotation knob to lock into one of the 12 preset locking positions.
  • Page 9 AG28 Features To Attach an Umbrella Light: Loosen the light adapter built into the umbrella runner by turning counter-clockwise (Fig. 18). After loosening, pull down light adapter post (Fig. 19) to attach the umbrella light (sold separately). To Remove Umbrella Light and Close Adapter: Remove umbrella light, and gently push up the light adapter post back into umbrella runner and tighten turning clockwise (Fig.

  • Page 10: Care And Maintenance

    • Check the condition and function of the umbrella. Any defects must be repaired by a professional. CAUTION: Fully assembled, the AG28 umbrella weighs over 300 lbs. Moving the umbrella fully assembled will increase the risk of damage to your umbrella and can cause serious injury.

  • Page 11: Warranty

    Returned product that (upon receipt and workmanship appears during the warranty inspection) is deemed to be “not covered” period; Treasure Garden will (at its option) under our warranty, will be shipped/billed repair or replace the product without at your expense.
  • Page 12 ©2018 Treasure Garden, Inc. - All Rights Reserved. Rev. 9/18...
