SiUS092231E
Display/Signal
1)

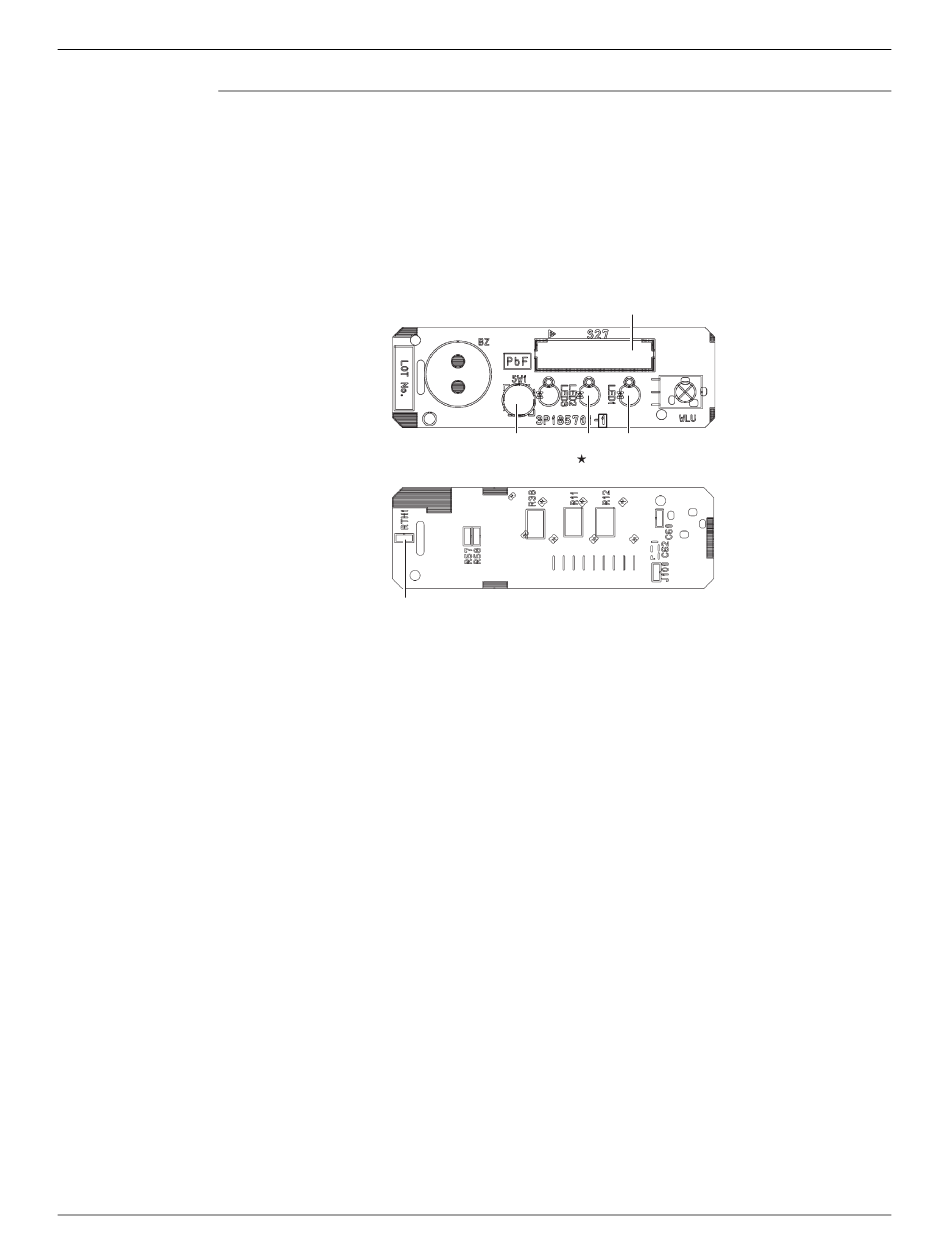

Receiver PCB
2)
(PCB2)
3)
4)
5)
Part 3 Printed Circuit Board Connector Wiring Diagram
S27 Connector for control PCB (PCB1)
SW1 Indoor unit ON/OFF switch
(Forced cooling operation ON/OFF switch)
Refer to page 206 for details of forced cooling operation.
LED1 LED for operation (green)
LED2 LED for timer (yellow)
RTH1 Room temperature thermistor
(Solder side)
RTH1
S27
SW1 LED2 LED1
LED3 is not mounted.
3P185701-4
Indoor Unit
