ARC480A8

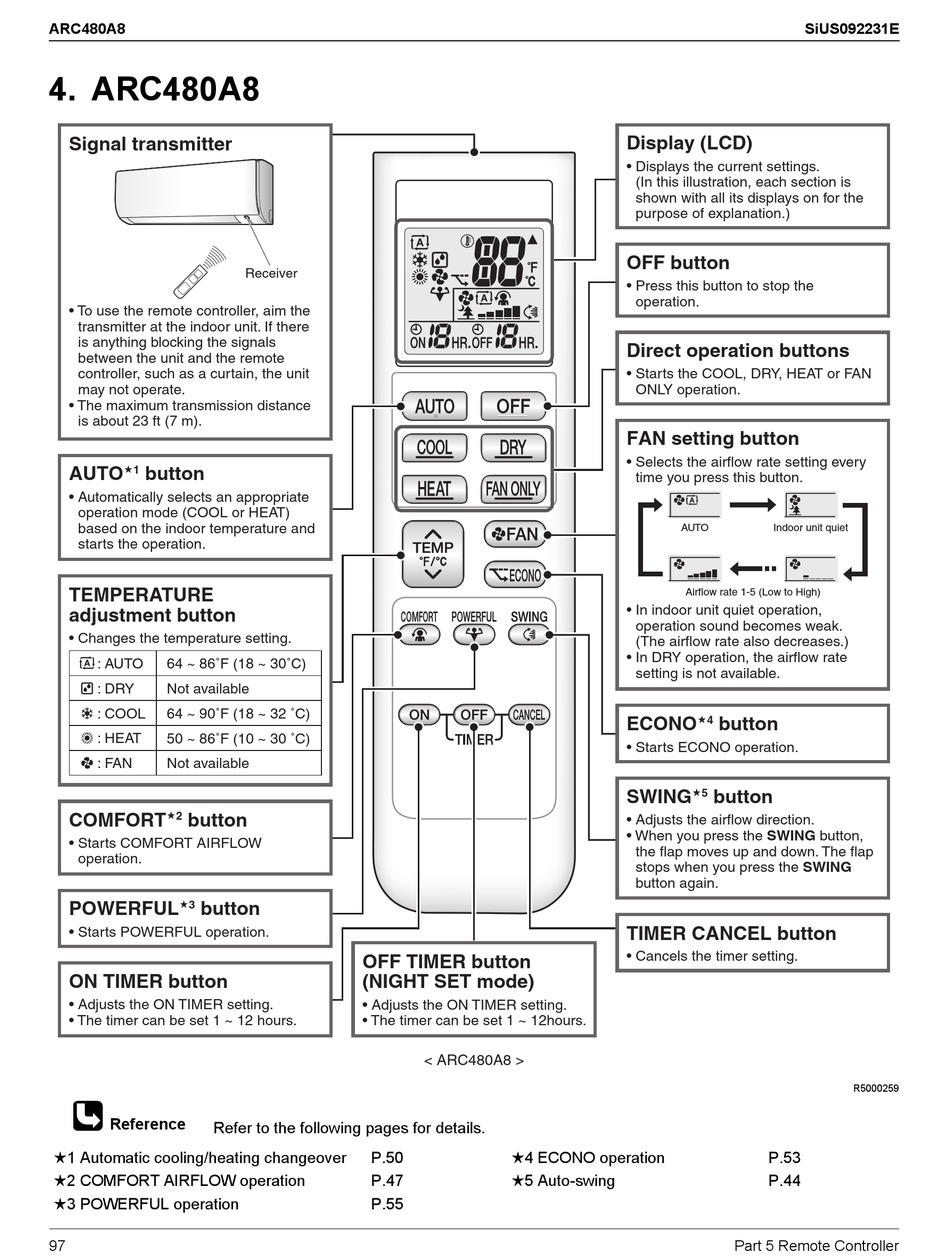

4. ARC480A8

Signal transmitter
• To use the remote controller, aim the
transmitter at the indoor unit. If there
is anything blocking the signals
between the unit and the remote
controller, such as a curtain, the unit
may not operate.
• The maximum transmission distance
is about 23 ft (7 m).
1
AUTO button
• Automatically selects an appropriate
operation mode (COOL or HEAT)
based on the indoor temperature and
starts the operation.
TEMPERATURE
adjustment button
• Changes the temperature setting.
: AUTO 64 ~ 86˚F (18 ~ 30˚C)
: DRY Not available
: COOL 64 ~ 90˚F (18 ~ 32 ˚C)
: HEAT 50 ~ 86˚F (10 ~ 30 ˚C)
: FAN Not available
2
COMFORT button
• Starts COMFORT AIRFLOW
operation.
3
POWERFUL button
• Starts POWERFUL operation.
ON TIMER button
• Adjusts the ON TIMER setting.
• The timer can be set 1 ~ 12 hours.
Reference
Refer to the following pages for details.
1 Automatic cooling/heating changeover
2 COMFORT AIRFLOW operation
3 POWERFUL operation
97
Receiver
OFF TIMER button
(NIGHT SET mode)
• Adjusts the ON TIMER setting.
• The timer can be set 1 ~ 12hours.
< ARC480A8 >
P.50
P.47
P.55
Display (LCD)
• Displays the current settings.
(In this illustration, each section is
shown with all its displays on for the
purpose of explanation.)
OFF button
• Press this button to stop the
operation.
Direct operation buttons
• Starts the COOL, DRY, HEAT or FAN
ONLY operation.
FAN setting button
• Selects the airflow rate setting every
time you press this button.
AUTO
Airflow rate 1-5 (Low to High)
• In indoor unit quiet operation,
operation sound becomes weak.
(The airflow rate also decreases.)
• In DRY operation, the airflow rate
setting is not available.
ECONO
• Starts ECONO operation.
SWING
• Adjusts the airflow direction.
• When you press the SWING button,
the flap moves up and down. The flap
stops when you press the SWING
button again.
TIMER CANCEL button
• Cancels the timer setting.
4 ECONO operation
5 Auto-swing
SiUS092231E
Indoor unit quiet
4
button
5
button
R5000259
P.53
P.44
Part 5 Remote Controller
