MANUAL

ENGLISH

Shark Scan One

Ordercode: 45025

Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Need help?

Do you have a question about the Shark Scan One and is the answer not in the manual?

Questions and answers

Summary of Contents for SHOWTEC Shark Scan One

Page 1 MANUAL ENGLISH Shark Scan One Ordercode: 45025 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
Page 2 Shark Scan One Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Frontside..................................6 Backside ..................................
Page 3 Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Shark Scan One ● Pro power to Schuko power cable (1,5 m) ●...
Page 4 For replacement use fuses of same type and rating only. ● The user is responsible for correct positioning and operating of the Shark Scan One. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
Page 5 When rigging, derigging or servicing the Shark, always make sure, that the area below the installation place is blocked and staying in the area is forbidden. The Shark Scan One can be placed on a flat stage floor or mounted to any kind of truss by means of the mounting bracket.
Page 6 Shark Scan One Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE...

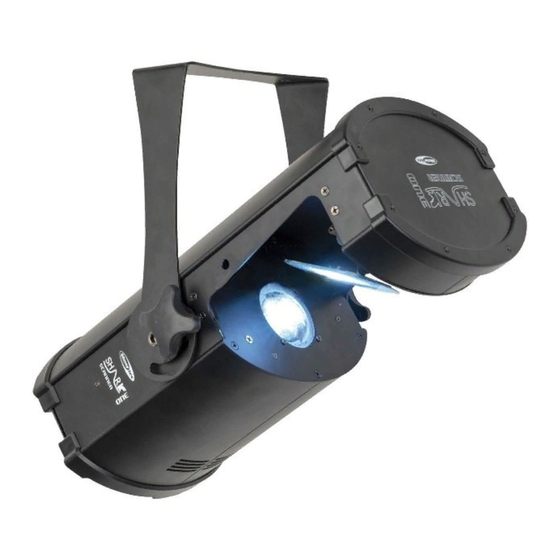

Page 7 Shark Scan One Description of the device Features The Showtec Shark Scan One is a compact scanner effect with high output and great effects. ● Light Source: 100W white LED module ● Input Voltage: 100-240 VAC, 50/60Hz (auto ranging) ●...
Page 8 10) Pro power connector Gray OUT Installation Remove all packing materials from the Shark Scan One. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly.
Page 9 Shark Scan One Control Modes There are 4 modes: ● Auto mode ● Sound-controlled ● Master/Slave Mode ● DMX-512 (8CH, 14CH) One Shark (Auto mode) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
Page 10 Shark Scan One Multiple Sharks (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Sharks and other devices.
Page 11 FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m). ● DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30. The Shark Scan One can be operated with a controller in control mode or without the controller in stand- alone mode. Ordercode: 45025...
Page 12 Shark Scan One Control Panel A) OLED display Menu button C) Down button D) Up button Enter button Fig. 05 DMX Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address the next time.)
Page 13 Shark Scan One Menu Overview Main Menu Options 01) Upon start-up, the Shark will show its current version number: 02) Press the ENTER button to open main menu. 03) Press the UP/DOWN buttons to scroll through the menu. The display will show: 04) Press the ENTER button to open the desired menu.
Page 14 Shark Scan One 1. DMX Address In this menu you can set the DMX address. 01) In main menu, press the UP/DOWN buttons until the display shows DMX ADDRESS. 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to select the required address from 001–512.
Page 15 Shark Scan One 4. Programs In this menu you can run individual built-in programs. 01) In main menu, press the UP/DOWN buttons until the display shows PROGRAMS. 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to select one of the 8 built-in programs. The display will show: 04) Press the ENTER button to confirm your choice.
Page 16 Shark Scan One 5.1. Calibration In this menu you can set the initial movement and color parameters of the Shark. 01) Once you have chosen CALIBRATION (see page 14) press the ENTER button to open the menu. 02) You will now need to insert the password, in order to access the menu. Press the UP/DOWN buttons until the display shows 018 and press the ENTER button to confirm.
Page 17 Shark Scan One DMX Channels 8 Channels Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0–255, 128-center). The head can be turned by 160° and stopped at any position you wish.
Page 18 Shark Scan One 14 Channels Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0–255, 128-center). The head can be turned by 160° and stopped at any position you wish.
Page 19 Shark Scan One Channel 9 – Gobo wheel Dimmer and shutter must be open 0–7 Open/White 8–19 Gobo 1 20–31 Gobo 2 32–43 Gobo 3 44–55 Gobo 4 56–67 Gobo 5 68–71 Gobo 6 72–79 Gobo 7 80–88 Gobo Shake 1 from slow to fast 89–97...
Page 20 03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 04) The electric power supply cables must not show any damages or material fatigue. The Showtec Shark Scan One requires almost no maintenance. However, you should keep the unit clean.
Page 21 Shark Scan One 03) Remove the 3 screws (A). 04) Remove the 4 screws on the backside (B). 05) Remove the small cover (C). 06) Remove the 3 screws (D). 07) Slide the metal cover upwards (E). 08) Turn the gobo wheel, with the gobo you want to remove, to the upside.
Page 22 Suspect three potential problem areas as: the power supply, the LEDs, the fuse. 01) Power supply. Check if the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Shark to your Showtec dealer. 03) The fuse. See page 19 for replacing the fuse 04) If all of the above appears to be O.K., plug the unit in again.
Page 23 Shark Scan One No Response to DMX Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Page 24 Shark Scan One Product Specifications Model: Showtec Shark Scan One Input Voltage: 100-240 VAC, 50/60Hz Power consumption: 137W max. at full output DMX linking: 30pcs Fuse: F4AL/250V Dimensions: 380 x 250 x 297 mm (LxWxH) Weight: 6,6 kg Operating and Programming:...
Page 25 Shark Scan One Dimensions Ordercode: 45025...
Page 26 Shark Scan One Notes Ordercode: 45025...
Page 27 Shark Scan One Ordercode: 45025...
