- Page 1 Starzone Inferno DMX ORDERCODE 31323...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Inferno brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Inferno Product Guide ™ Warning.................…...……………..…………………………….………..….. Safety-instructions………………………………………………………………………………………………………… Operating Determinations.…………………………………………………………………………………………….. Rigging.…………………………………………………………………………………………………………………….. Description................…...………………………………………….………..… Features and Overview ………………………………...….……………….………….……….……….……………… Backside…………………………………………………...…...….……………….…………………...……………….… Installation................…...…………………………………………………..….. Installing the Lamp ............…………………………………………………….……….. Set Up and Operation............................... One Inferno……..............................Multiple Inferno’s.……............................DMX-Protocol................................DMX Channels..............................Control Mode............................... DMX Addressing..............................Control Board…..............................Maintenance...................………..………….…….……………………..……... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used. -
Page 7: Description

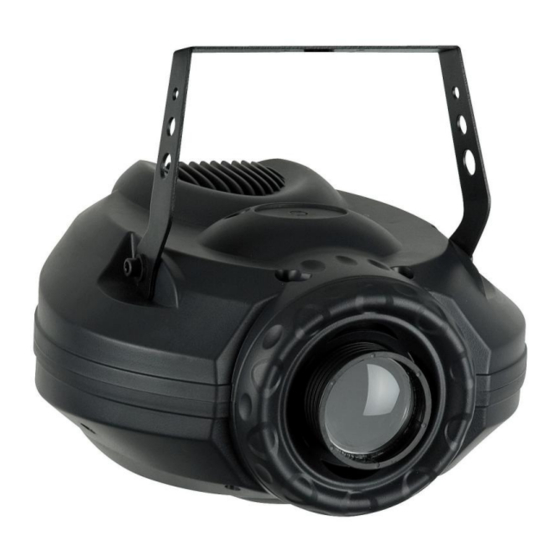

Description of the device Features The Showtec Inferno is a lighteffect with high output and great effects. • Standalone mode • DMX-512 • 1channels • Variable direction and variable speed • Flowing Fire Effect • Fixed Colour • LCD Display •... -
Page 8: Backside
Backside Fig. 2 4) DMX signal connector (OUT) 5) DMX signal connector (IN) IEC Power connector + Fuse... -
Page 9: Installation
Installation Installing the Lamp The Showtec Inferno uses the EFP GZ6.35 12V 100W (80810 / 80810O / 80810S / 82399 / 82403) reflectorbulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 10: One Inferno
One Inferno 1. Fasten the Inferno onto firm trussing. Leave at least 1 meter on all sides for air circulation. 2. Plug one end of the electric mains power cord into the IEC socket on the unit. Then plug the other end of the cord into a proper electric power supply socket. If the display shows , you can change the speed of the gobo-wheel by using the Up/Down buttons. -
Page 11: Control Mode
Control Panel When the indicator light is on, means the Inferno is working Fig. 5 A. Power LED D. [MENU] Button G. [ENTER] Button B. Display E. Up Button H. Sound LED C. DMX LED F. Down Button DMX Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 12: Control Board
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Inferno requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. -
Page 13: Troubleshooting
Osram EFP GZ6.35 12V 100W (50 hr, 750 Lumen) ordercode 80810O Sylvania EFP GZ6.35 12V 100W (50 hr, 550 Lumen) ordercode 80810S Showtec EFP GZ6.35 12V 100W (50 hr) ordercode 82399 Showtec EFP GZ6.35 12V 100W (50 hr,) ordercode 82403 Electro-mechanical effects Max.
