Control Panel Functions

For synchronous operation of multiple fixtures the fixtures must all be connected on a data-link.
Note: Disconnect the fixtures from the DMX controller before operating, otherwise data collisions can
occur and the fixtures will not work properly!
It's necessary to insert the XLR termination plug (with 120 Ohm ) into the input of the first fixture and into
the output of the last fixture in the data-link, in order to ensure proper transmission on the data link.

DMX Addressing

With this menu you can set the DMX address.

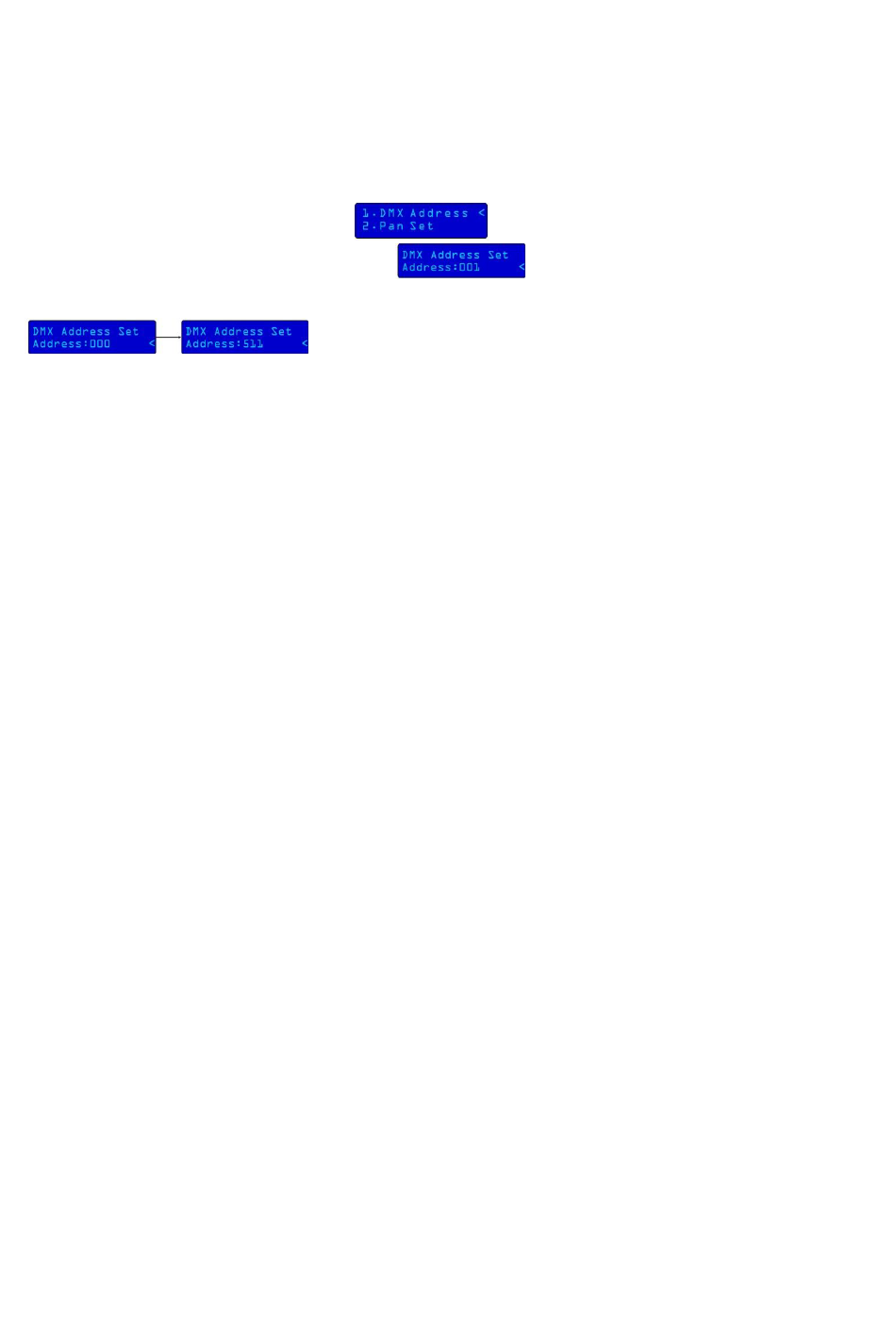

1) Press Mode/Esc, until the display shows
.
2) Press Enter to confirm, the display will show
(with actually stored address).
3) You can choose 512 different DMX addresses.
Use the Up / Down buttons to select the required address from 000 – 511.
