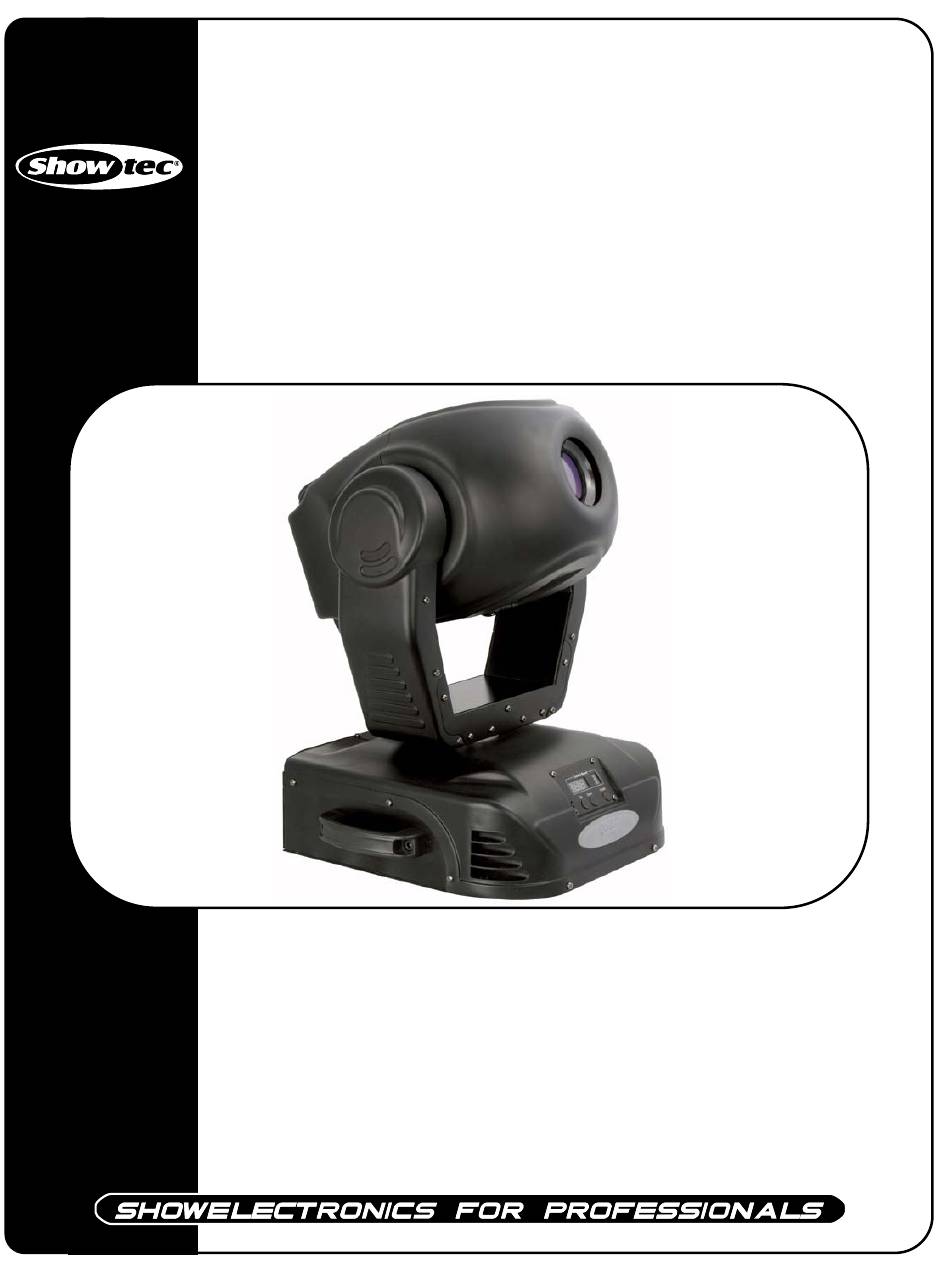

- Page 1 Club Spot 575 ORDERCODE 40135...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Club Spot 575 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Club Spot 575 Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Rigging…………………………………………………………………………………………………………. Description..…................……….………………………………… Features and Overview ………………………………...….……………….………….………………….…. Backside…………………………………………………...…...….……………….…………………...….…. Installation................…...…………………………………….….. Installing the Lamp ............………………………………………..………… Set Up and Operation..............……..……………………………….… One Club Spot ................………………………………………… Multiple Club Spots................………………………………….. DMX-Protocol…...........……………………………………………………………. Control Panel….....……........………………………………………………………. Control Mode........………………………………………………………………………... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the projector is lowered from the ceiling or high joists, professional trussing systems have to be •... - Page 7 Mounting a clamp to the underside of the club Spot moving head 1) Clamp 2) Safety-cable 3) Eye bolt 4) Mounting plate Improper installation can cause serious damage to people and property ! Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place.
-
Page 8: Description
Description of the device Features The Showtec Club Spot 575 is a moving head with high output and great effects. • 1 Color-wheel with 7 colored gobos, and open • 1 Gobo-wheel with 2 glass and 5 metal interchangeable rotating gobos plus open •... -
Page 9: Backside
Backside Fig. 2 DMX signal connector (OUT) DMX signal connector (IN) IEC power connector 7) ON / OFF... -
Page 10: Installation
Installation Installing the Lamp The Showtec Club Spot 575 uses the HMI 575 (ordercode 80901O) reflectorbulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 11: Set Up And Operation
Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. One Club Spot 1. - Page 12 Fig. 5...
-
Page 13: Dmx-Protocol
DMX Protocol Channel 1 – Colours Linear color change following the movement of the slider. In this way you can stop the color-wheel in any position – also between two colors creating double-colored beams. Between 128 - 191 and between 192 - 255, the color-wheel rotates continuously the so-called “Rainbow”... - Page 14 Channel 4 – Static Gobos Open / white 9-15 Gobo 1 16-23 Gobo 2 24-31 Gobo 3 32-39 Gobo 4 40-47 Gobo 5 48-55 Gobo 6 56-63 Gobo 7 64-71 Open / white 72-79 Gobo 1 80-87 Gobo 2 88-95 Gobo 3 96-103 Gobo 4...
-
Page 15: Control Panel
The Club Spot 575 can be operated with a controller in control mode or without the controller in stand- alone mode. Control Panel When the indicator light is on, means the Club Spot is working Fig. 6 A. Up Button B. -
Page 16: Functions Control Panel
Dmx Mode: DMX Mode: Light 1 Light 2 Master Mode: Slave Mode: Sound-control Slave 1 Master Mode: Slave-Mode Slow Slave 2 Master Mode: Slave-Mode Standby Slave 3 Use Time: Slave-Mode Hour Slave 4 Pan Mode: Tilt-Mode Positive Positive Pan Mode: Tilt-Mode Negative Negative... -
Page 17: Stand-Alone Mode
Remotely controllable functions Colour-wheel The Club Spot contains a colour-wheel with 7 colours and white. The colour-wheel can be positioned between two adjacent colours in any position. It is also possible to rotate the colour-wheel continuously at different speeds ( “Rainbow effect” in both directions). Rotating gobo-wheel This rotating gobo-wheel has 5 metal gobos, 2 glass gobos and open. -
Page 18: Rotating Gobowheel, Static Gobowheel And Colorwheel
Gobowheel Static Gobowheel Rotating Fig. 8 Fig. 9 Colorwheel Fig. 10... -
Page 19: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Club Spot 575 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. -
Page 20: Replacing A Gobo
Replacing a Gobo Gobo-wheel with rotating gobo’s 1. Disconnect mains power supply and set the switch to OFF. 2. Make sure that the gobo you want to insert has the same size. 3. Remove the maintenance caps. 4. Turn the gobo wheel, with the gobo you want to remove, to the upside. 5. - Page 21 Problem Probable cause(s) Remedy No power to the fixture ·Check that power is switched on and One or more cables are plugged in. fixtures are Primary fuse blown. ·Replace fuse. completely dead. Fixtures reset The controller is not connected. ·Connect controller. correctly, but all 3-pin XLR Out of the controller ·Install a phase reversing cable...
-
Page 22: Product Specifications
Product Specification Model: Showtec Club Spot 575 Voltage: 240V-50Hz (CE) Power: 800W Fuse: 10A / 250V Dimensions: 360x325x530mm (LxWxH) Weight: 25 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+) Set Up and Addressing: LED control panel... - Page 23 2005 Showtec.
