Lamp Adjustment

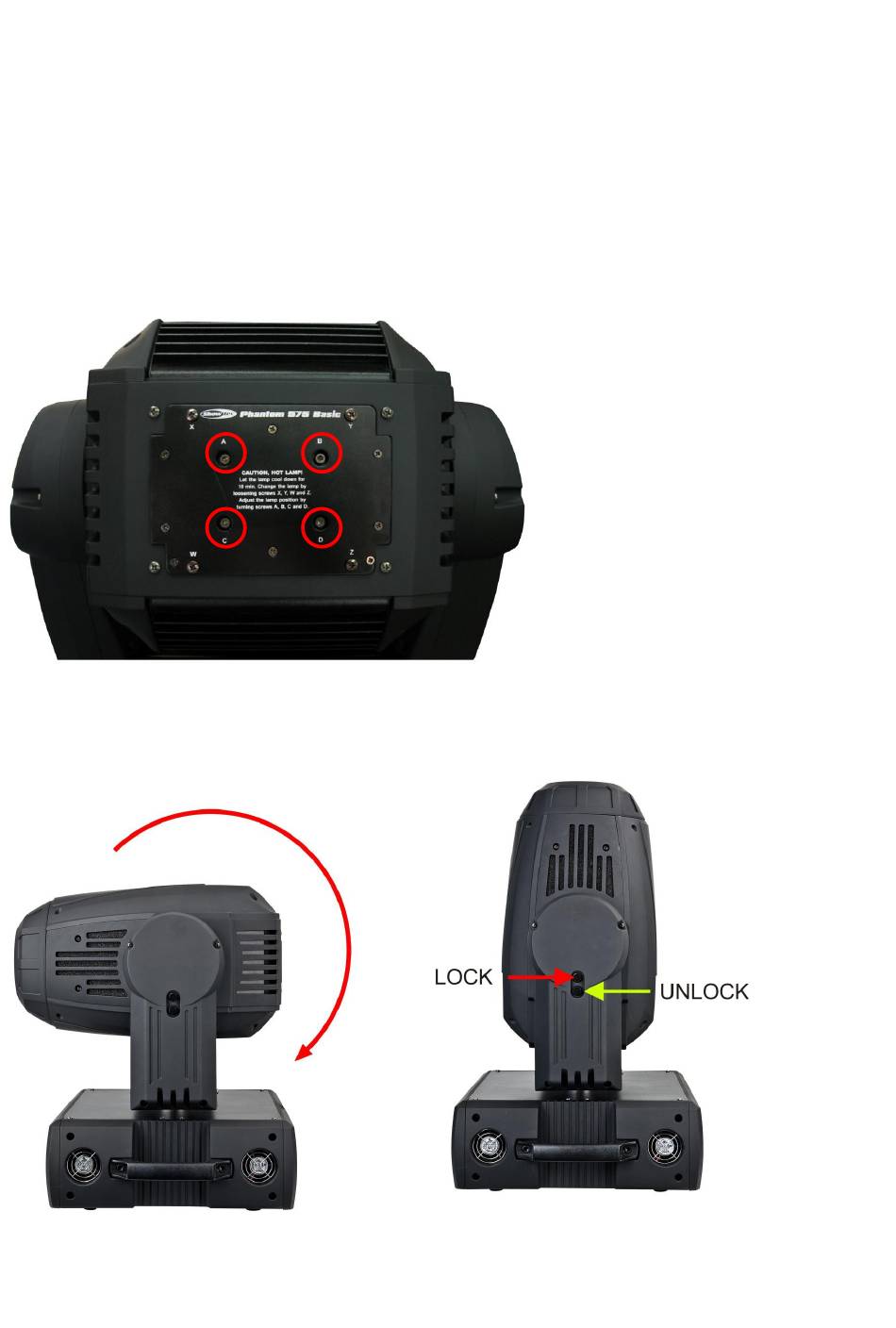

You can adjust the lamp's position by turning the screws A, B, C, D.
The lamp position is set in the factory. As the lamps, which can be used, differ from manufacturer to
manufacturer, it can be necessary to readjust the position. The lamp must be readjusted e.g., if the light
does not seem to be evenly distributed within the ray of light.
Ignite the lamp and focus the ray of light on an even surface (wall). As the optimal distance between the
lamp and the lens was already set during the installation. Only the "Hot Spot" ( the brightest part of the
ray of light) must be centered. If the Hot Spot appears too bright, you can weaken its intensity, by moving
the lamp closer to the reflector. Turn in addition all screws (A, B, C, D), until the light is evenly distributed. If
the light at the outside edge of the ray of light appears brighter as in the center, the lamp is too close to
the reflector. In this case move the lamp away from the reflector, until the light is evenly distributed and
the ray of light appears bright enough.
Lock / Unlock the Moving-head
You can lock the moving head by pressing the top button (Red).
To unlock you have to press the bottom button (Green).
Backside Lamp Board
8
Fig. 4
Fig. 5
