Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
One / Multiple Phantom(s) DMX Control
1. Fasten the effect light onto firm trussing (Use a 30-kg rated or stronger C-clamp fastened onto the
Phantom ). Leave at least 1 meter on all sides for air circulation.
2. Always use a safety cable (ordercode 70140 / 70141).

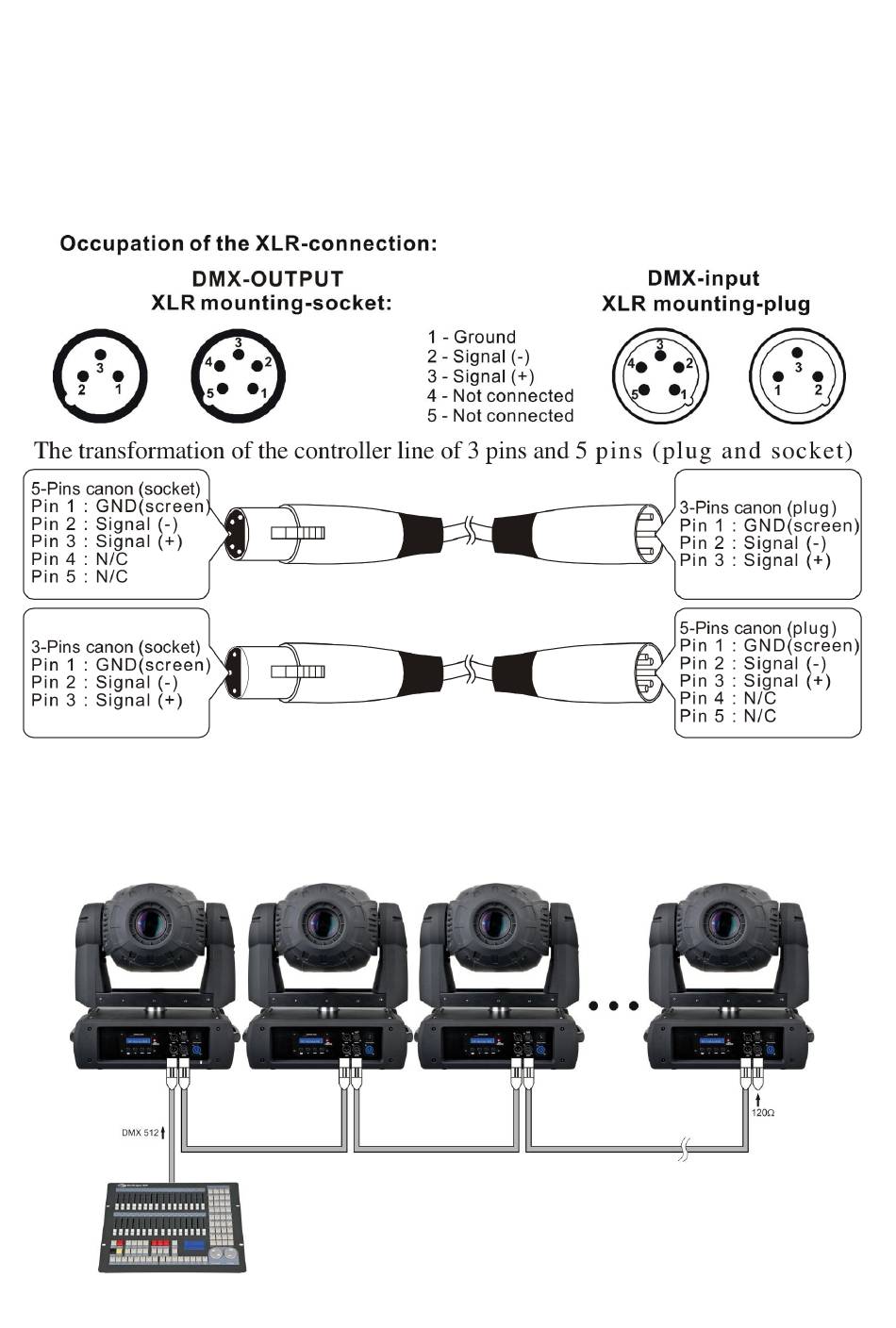

3. Use a 3-p or 5-p XLR cable to connect the Phantoms and other devices.
3. Link the units as shown in (figure 5), Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
4. Supply electric power: Plug electric mains power cords into each unit's Powercon socket, then plug the
other end of the mains power cord into proper electric power supply sockets, starting with the first unit.
Do not supply power before the whole system is set up and connected properly.
Note : Link all cables before connecting electric power
Multiple Phantoms DMX Set Up
9
Fig. 6
