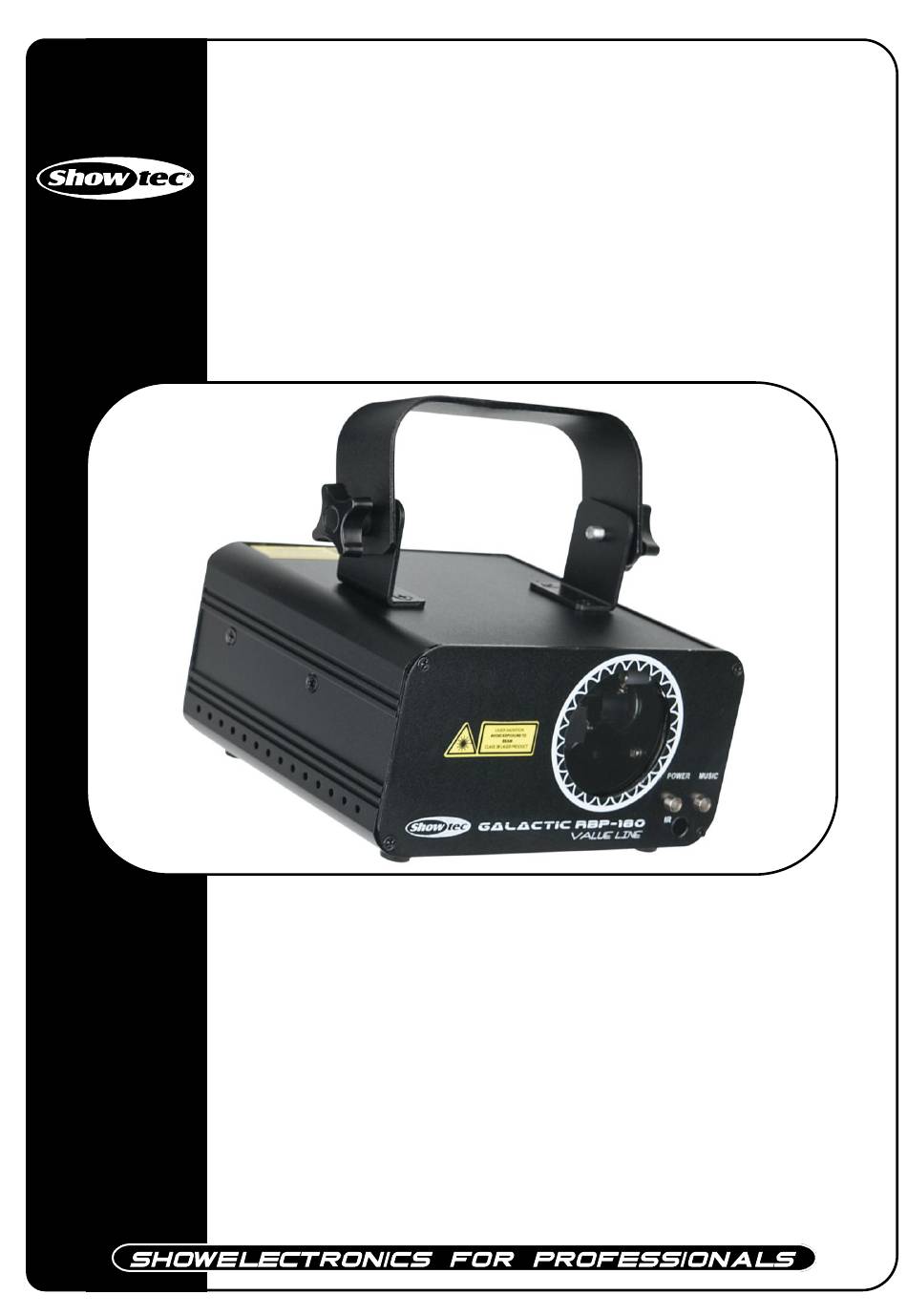

- Page 1 Galactic RBP-180 ORDERCODE 51337 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec Galactic RBP-180 Product Guide ™ Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................5 Rigging .................................... 5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Overview ..................................7 Backside ..................................8 Remote Control Operation ............................ -
Page 4: Warning
Warning FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
- Page 6 CAUTION: AVOID EXPOSURE TO BEAM: Avoid direct eye contact with laser light. Never intentionally expose your eyes or others to direct laser radiation. Compliance Statement Your Galactic RBP-180 Laser has been designed to comply with FDA and IEC Standards for it classification.
-
Page 7: Operating Determinations
Proper Usage Safety and Compliance Information According to FDA Regulations you should operate this product as stated on the left. Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. •... -
Page 8: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN... -
Page 9: Description Of The Device
Description of the device Features The Showtec Galactic RBP-180 is a light effect with high output and great effects. • When using multiple units together, you can make a great and cost effective beam-show • Power Input: AC 100-240V, 50/60Hz •... -
Page 10: Backside
Backside Fig. 2 4 5 6 7 8 9 10 1) Mountingbracket with adjustment screw 7) Earth connection 2) 3-pin DMX Out 8) Remote Control 3) ON/OFF 9) Lock On/Off 4) Fuse 1A/250V 10) Safety Eye 5) IEC Powerconnector 11) LCD Display + Menu Buttons 6) 3-pin DMX In 12) Built-in Microphone... -
Page 11: Remote Control Operation
Remote Control Operation ON/OFF: mode, use this button to turn the laser ON/OFF. In every mode, excepted SLA mode, press 2 seconds to activate REM mode. AUTO: Automatic running show SOUND activated show. The blue music LED indicator is flashing when sound signal is detected During a sound-controlled Show, press MUSIC+B+1~9 to set the sensitivity. -
Page 12: Installation
Installation Remove all packing materials from the Galactic RBP-180. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. -
Page 13: Control Modes
Control Modes There are 4 modes: • Auto run (visual effects) • Sound-controlled • Master/Slave • DMX512 One Galactic RBP-180 (Auto run visual effects) 1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 2. -
Page 14: Multiple Galactic Rgy-140 (Dmx Control)
Multiple Galactic RBP-180 (DMX Control) Fasten the effect light onto firm trussing Leave at least 1 meter on all sides for air circulation. 2. Always use a safety cable (ordercode 70140 / 70141). Use a 3-p XLR cable to connect the Galactic RBP-180 lasers. Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out"... -
Page 15: Control Panel
Control Panel Fig. 5 A. LED Display D. Down Button B. Func Button E. Enter Button C. Up Button Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. DMX Addressing The control panel on the front side of the base allows you to assign the DMX fixture address, which is the first channel from which the Galactic RBP-180 will respond to the controller. -
Page 16: Menu Overview
Menu Overview The Galactic RBP-180 will only show its version number at start-up ! -
Page 17: Main Menu Options
Main Menu Options 1. DMX address 2. Master/Slave 3. Remote Control 4. Test 5. Automatic 6. Sensitivity You can only change a certain setting when the display is blinking. If you can’t change a certain value, please press the Function-button once and then change the value. 1. -
Page 18: Built-In Programs Mode / Sound Mode
5. Built-in Programs Mode / Sound Mode 1) Press the FUNC button, until the display shows . This is the Auto Mode. 2) You can choose 8 different modes, 4 Auto Modes and 4 Sound Modes. 3) Use the Up / Down buttons to select: 4) Use the ENTER button to store your setting. -
Page 19: Dmx Channels
DMX Channels 10 Channels Channel 1 – Control Modes 0-29 Auto show with original pre-programmed color 30-59 Auto show with Blue 60-89 Auto show with Red 90-119 Auto show with Purple Sound-activated show with original pre-programmed color 120-149 150-179 Sound-activated show with Blue 180-209 Sound-activated show with Red 210-239... -
Page 20: Patterns
Channel 9 – X-axis Rolling 0-127 0-359 degree fixed X Axis rolling 128-191 Counterclockwise rolling from slow to fast 192-255 Clockwise rolling from slow to fast Channel 10 – Z-axis Rolling 0-127 0-359 degree fixed X Axis rolling 128-191 Counterclockwise rotation from slow to fast 192-255 Clockwise rotation from slow to fast Patterns... -
Page 21: Maintenance
Maintenance The Showtec Galactic RBP-180 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and a soft cloth. - Page 22 Problem Probable cause(s) Remedy No power to the fixture • Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. • Replace fuse. completely dead. Fixtures reset The controller is not connected. •...
-
Page 23: Product Specification
Product Specification Model: Showtec Galactic RBP-180 • When using multiple units together, you can make a great and cost effective beam-show • Power Input: AC 100-240V, 50/60Hz • Power Consumption: 16 Watt • Beam Diameter <5mm at aperture • Pulse Data All pulses < 4Hz (>0.25sec) •...
