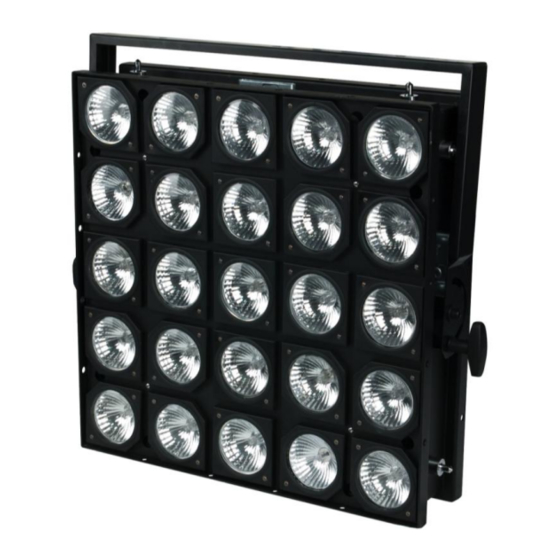

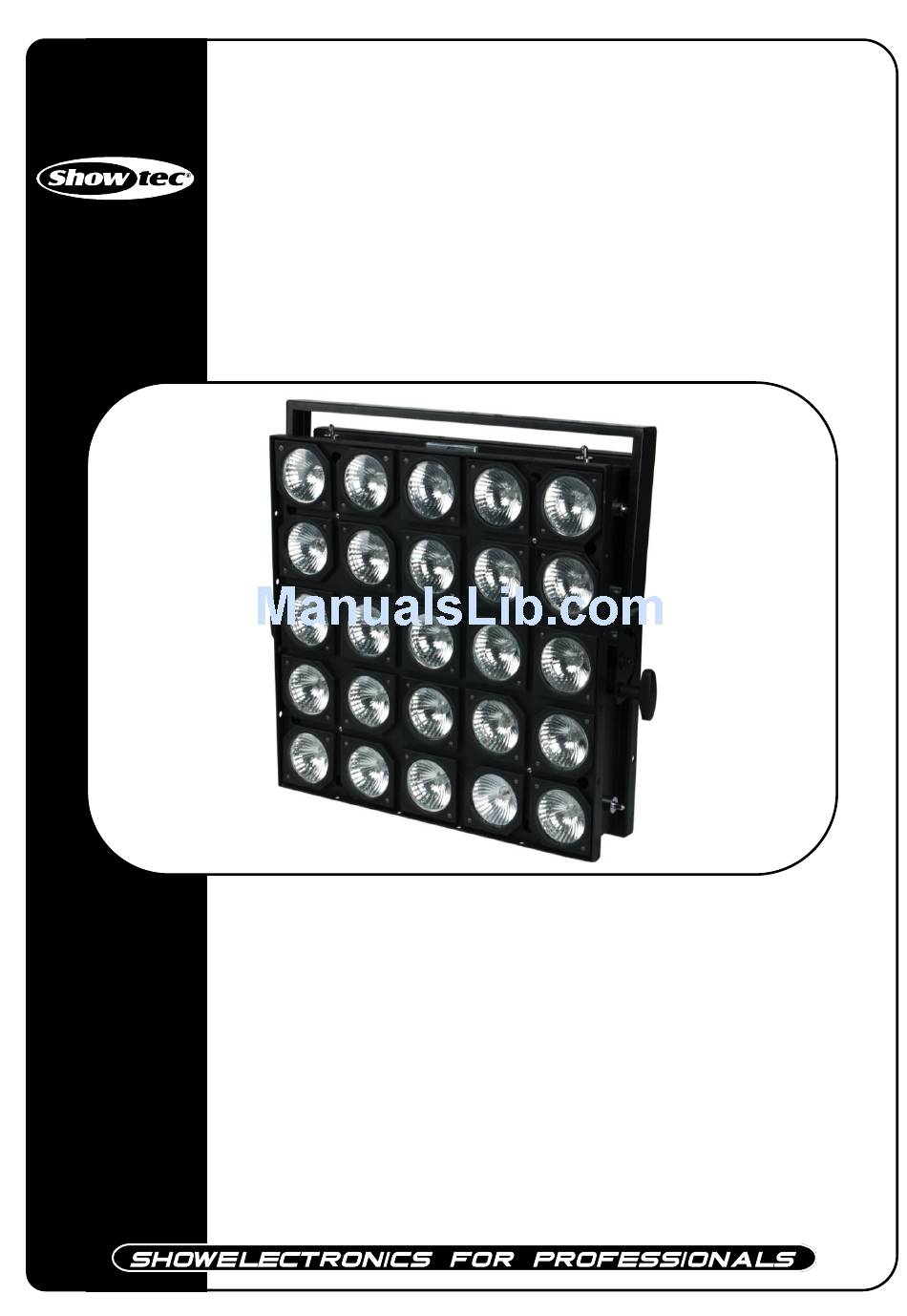

- Page 1 Matrix 5x5 Blinder ORDERCODE 30711 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 New products are being launched regularly. We work hard to keep you, our customer, satisfied. For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec !
-
Page 3: Table Of Contents
Showtec Showtec Matrix Blinder Product Guide ™ Warning.................…...……………..…………………………….…………. Safety-instructions………………………………………………………………………………………………………. Operating Determinations.…………………………………………………………………………………………… Rigging.…………………………………………………………………………………………………………………… Return Procedure……………………………………………………………………………........Claims……………………………………………………………………………............Description................…...………………………………………….………… Features and Overview ………………………………...….……………….………….……….……….……………. Backside…………………………………………………...…...….……………….…………………...……………….. Installation................…...…………………………………………………..… Installing the Lamp ............…………………………………………………….…….. Set Up and Operation............................One / Multiple Matrix Blinder DMX Control........……………………………………………. DMX-Protocol…...........……………………………………………………………………….. Fixture Linking…………………....……..……………………………………..…………………..…………..……... -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec Matrix Blinder with 25x Osram Par 30 lamp • Bracket included • User manual... - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
OPERATING DETERMINATIONS • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light-output and the illuminated surface must be more than 1 meter. •... -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description
Description of the device Features The Showtec Matrix Blinder is a blinder with high output and great effects. • Extraordinary and multifunctional Audience blinder. • 4 different DMX modes: 4 CH Basic Mode 9 CH Zone Mode 25 CH Matrix Mode 29 CH Advanced Mode (control all lamps and all macro's independently) •... -
Page 9: Backside
Backside Fig. 2 6 7 8 9 10 11 12 13 1) Locking Mechanism (Hex key 8mm separately available, ordercode SPHK016) 2) Powercon 3) Automatic Fuse 10A 4) Earth/Ground 5) ON/OFF 6) LCD Display 7) Mode Button 8) Up Button 9) Down Button 10) DMX signal connector (IN) 5-pin 11) DMX signal connector (IN) 3-pin... -
Page 10: Installation
Installation Installing the Lamp The Showtec Matrix Blinder uses the Par 30 E27 Spot (ordercode 80120) bulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 11: One / Multiple Matrix Blinder Dmx Control
One / Multiple Matrix Blinder(s) DMX Control 1. Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation. 2. Use a 3-p or 5-p XLR cable to connect the Matrix Blinders and other devices. 3. -
Page 12: Dmx-Protocol
Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 13: Control Panel
Control Panel When the DMX indicator LED is blinking, means the Matrix Blinder is working Fig. 5 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address the next time.) DMX Addressing The control panel on the front side of the base allows you to assign the DMX fixture address, which is the... -
Page 14: Control Panel Functions
Control Panel Functions For synchronous operation of multiple fixtures the fixtures must all be connected on a data-link. Note: Disconnect the fixtures from the DMX controller before operating, otherwise data collisions can occur and the fixtures will not work properly! It’s necessary to insert the XLR termination plug (with 120 Ohm ) into the input of the first fixture and into the output of the last fixture in the data-link, in order to ensure proper transmission on the data link. -
Page 15: Dmx Channels
DMX Protocol 4 Channels (BASIC) Channel 1 – Dimmer intensity 0-255 From black to brightest Channel 2 – Static Macros No Function 1-255 Static Macro 1-255 (see page 18) Channel 3 – Dynamic Macros 0-255 No Function 1-43 Dynamic Macro (Chase 1-43) (see page 19) 44-127 No Function 128-230... -
Page 16: Channels (Matrix)
Channel 6 – Dimmer intensity Zone 2 0-255 From black to brightest Channel 7 – Dimmer intensity Zone 3 0-255 From black to brightest Channel 8 – Dimmer intensity Zone 4 0-255 From black to brightest Channel 9 – Dimmer intensity Zone 5 0-255 From black to brightest Protocol 25 Channels (Matrix Mode 1-25) - Page 17 Channel 11 – Dimmer intensity Lamp 11 0-255 From black to brightest Channel 12 – Dimmer intensity Lamp 12 0-255 From black to brightest Channel 13 – Dimmer intensity Lamp 13 0-255 From black to brightest Channel 14 – Dimmer intensity Lamp 14 0-255 From black to brightest Channel 15 –...
-
Page 18: Channels (Advanced)
Protocol 29 Channels (Matrix Mode 1-25) Channel 1 – Dimmer intensity 0-255 From black to brightest Channel 2 – Static Macros No Function 1-255 Static Macro 1-255 (see page 18) Channel 3 – Dynamic Macros 0-255 No Function 1-43 Dynamic Macro (Chase 1-43) (see page 19) 44-127 No Function 128-230... - Page 19 Channel 14 – Dimmer intensity Lamp 10 0-255 From black to brightest Channel 15 – Dimmer intensity Lamp 11 0-255 From black to brightest Channel 16 – Dimmer intensity Lamp 12 0-255 From black to brightest Channel 17 – Dimmer intensity Lamp 13 0-255 From black to brightest Channel 18 –...
-
Page 20: Static Patterns
Static Patterns... -
Page 21: Dynamic Patterns (Chases)
Dynamic Patterns (Chases) Chase 001 Chase 002 Chase 003 Chase 004 Chase 005 Chase 006 Chase 007 Chase 008 Chase 009 Chase 010 Chase 011 Chase 012 Chase 013 Chase 014 Chase 015 Chase 016 Chase 017 Chase 018 Chase 019 Chase 020 Chase 021 Chase 022... - Page 22 Chase 023 Chase 024 Chase 025 Chase 026 Chase 027 Chase 028 Chase 029 Chase 030 Chase 031 Chase 032 Chase 033 Chase 034 Chase 035 Chase 036 Chase 037 Chase 038 Chase 039 Chase 040 Chase 041 Chase 042 Chase 043...
- Page 23 Between 44-127 there are no chases. Chase 128 Chase 129 Chase 130 Chase 131 Chase 132 Chase 133 Chase 134 Chase 135 Chase 136 Chase 137 Chase 138 Chase 139 Chase 140 Chase 141 Chase 142 Chase 143 Chase 144...
- Page 24 Chase 145 Chase 146 Chase 147 Chase 148 Chase 149 Chase 150 Chase 151 Chase 152 Chase 153 Chase 154 Chase 155 Chase 156 Chase 157 Chase 158 Chase 159 Chase 160 Chase 161 Chase 162 Chase 163 Chase 164 Chase 165...
- Page 25 Chase 166 Chase 167 Chase 168 Chase 169 Chase 170 Chase 171 Chase 172 Chase 173 Chase 174 Chase 175 Chase 176 Chase 177 Chase 178 Chase 179 Chase 180 Chase 181 Chase 182 Chase 183 Chase 184 Chase 185 Chase 186 Chase 187 Chase 188...
- Page 26 Chase 190 Chase 191 Chase 192 Chase 193 Chase 194 Chase 195 Chase 196 Chase 197 Chase 198 Chase 199 Chase 200 Chase 201 Chase 202...
- Page 27 Chase 203 Chase 204 Chase 205 Chase 206 Chase 207 Chase 208 Chase 209 Chase 210 Chase 211 Chase 212 Chase 213 Chase 214 Chase 215 Chase 216 Chase 217 Chase 218 Chase 219 Chase 220 Chase 221 Chase 222 Chase 223 Chase 224...
- Page 28 Chase 225 Chase 226 Chase 227 Chase 228 Chase 229 Chase 230 Between 231-255 there are no chases.
-
Page 29: Video Over The Matrix (Arkaos Or Dmt)
In this setup, the Matrix grid is made op 4 x 3 panels. Each panel has 25 pixels. All is driven by Arkaos Media Master Express with Ledmapper. The node used is a Showtec Node-1 (50802). This Node is a DMX-Artnet 2 way Convertor. On one side you insert the Cat cable with the video and on... -
Page 30: Set Up Example 4X3 Panels
Set up Example 4x3 panels For more information about the Matrix, you can also view: Just click on the following link: Showtec 30711-Matrix 5x5 Blinder... -
Page 31: Maintenance
4. The electric power supply cables must not show any damages or material fatigue. The Showtec Matrix Blinder requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. -
Page 32: Troubleshooting
Troubleshooting No Light This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. If the light effect does not operate properly, refer servicing to a technician. - Page 33 Problem Probable cause(s) Remedy No power to the fixture · Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. · Replace fuse. completely dead. The flat cable inside the Matrix ·...
-
Page 34: Product Specifications
Product Specification Model: Showtec Matrix Blinder Voltage: 240V-50Hz (CE) Extraordinary and multifunctional Audience blinder. 4 different DMX modes: 4 CH Basic Mode 9 CH Zone Mode 25 CH Matrix Mode 29 CH Advanced Mode Easy to control the Matrix by its built-in macros.
