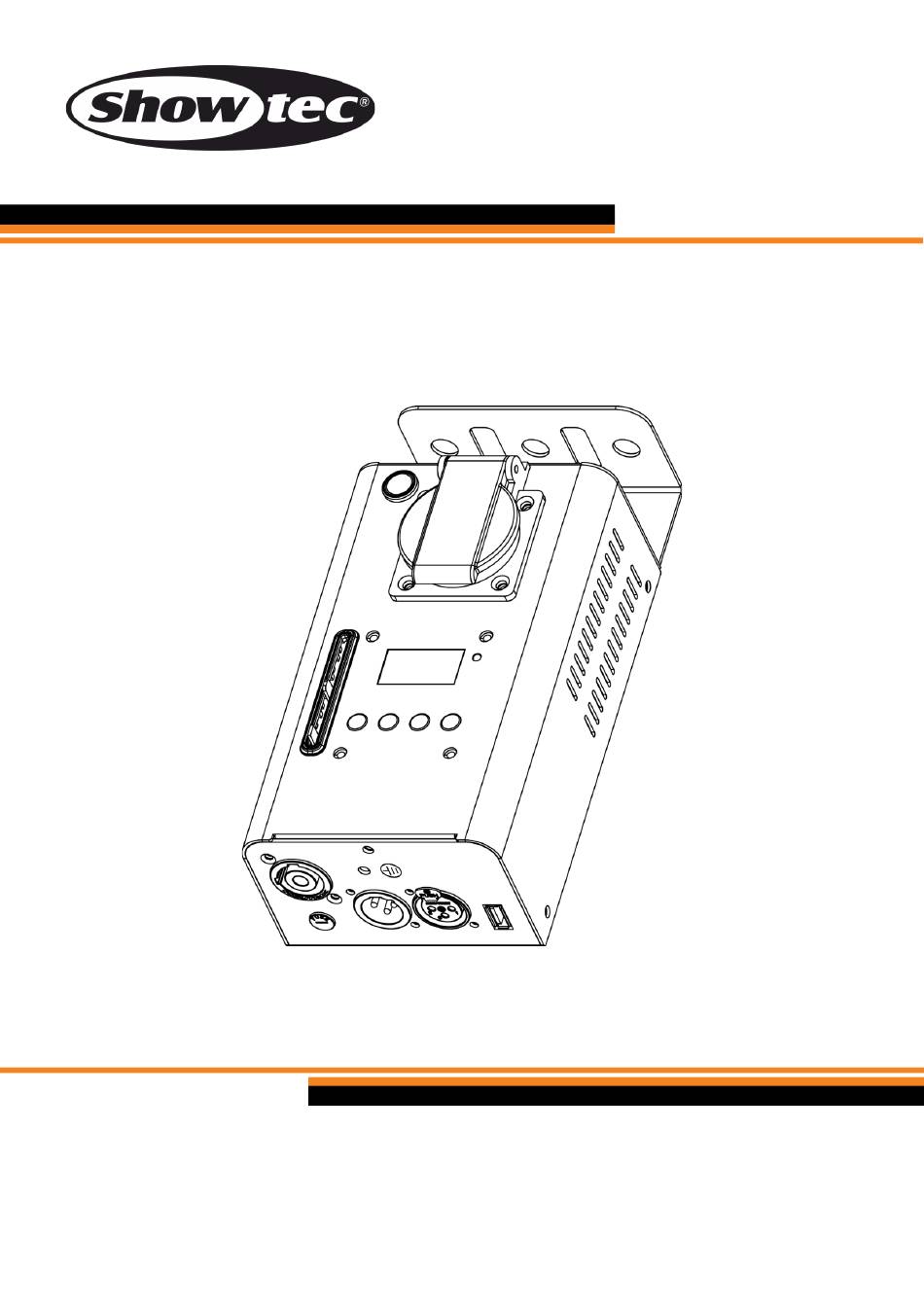

- Page 1 USER MANUAL ENGLISH TED Pack Single Product code: 50444 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 TED Pack Single Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
TED Pack Single Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Text Conventions ..............................4 Acronyms and Abbreviations .......................... 4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 TED Pack Single DMX Fail ..............................25 Dimmer Speed ............................25 Display OFF ..............................25 Display Invert ............................25 Factory Reset ............................25 DMX Channels ..............................26 RDM Information ...............................27 RDM Details ..............................27 Supported RDM PIDs for the Device .......................27 Troubleshooting ..............................28 Maintenance ..............................28 Safety Instructions for Maintenance ......................28...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec TED Pack Single ● Schuko to Seetronic power cable (1,5 m) ● User manual Fig. -
Page 6: Symbols And Signal Words
TED Pack Single Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
TED Pack Single Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 8 TED Pack Single Attention Power supply ● Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. ● Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the required power consumption of the device.
-
Page 9: Requirements For The User
TED Pack Single Attention Do not expose the device to conditions that exceed the rated IP class conditions. This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater than 12 mm, such as fingers, and no protection against harmful ingress of water. -

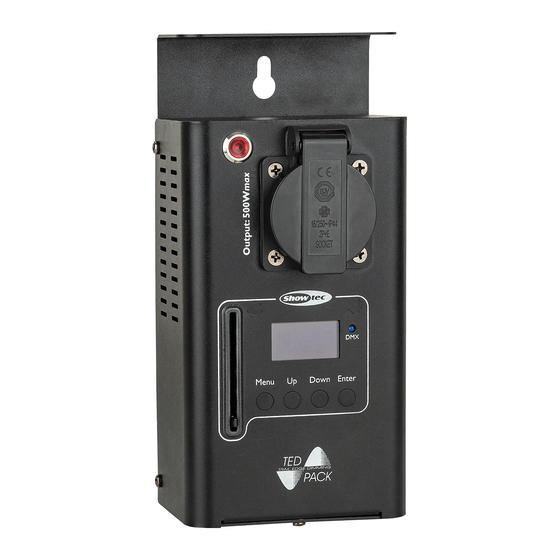

Page 10: Description Of The Device
FX modes. The device is compatible with LED and incandescent lights. The total load of the output shall not exceed 500 W and 2 A. The TED Pack Single uses MOSFETs to dim the output and can be switched between leading edge and trailing edge dimming. The FX mode offers a safety channel that prevents unintentional activation. -
Page 11: Top View
TED Pack Single Top View Mounting hole for clamp 2 x Safety eyes Fig. 04 Dimensions Fig. 05 Fig. 06 Product code: 50444... -
Page 12: Product Specifications
TED Pack Single Product Specifications Model: TED Pack Single Electrical: Input voltage: 220–240 V AC, 50 Hz Power consumption: Fuse: F3 A, 250 V Output wattage (per channel): 500 W max Output current (per channel): Physical: Dimensions: 221 x 105 x 80 mm (L x W x H) -
Page 13: Installation
TED Pack Single Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. -
Page 14: Connecting To Power Supply
TED Pack Single Fig. 07 Connecting to Power Supply DANGER Electric shock caused by short-circuit The device accepts AC mains power at 220–240 V and 50 Hz. Do not supply power at any other voltage or frequency to the device. -
Page 15: Setup
TED Pack Single Setup Warnings and Precautions Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. DMX Connection DMX-512 Protocol The TED Pack LC has 3-pin DMX signal IN and OUT connectors. -
Page 16: Dmx Linking
Fig. 09 Connecting Fixtures The TED Pack Single is compatible with both LED and incandescent lighting fixtures. It can be also used for controlling shooters, canons, drops, and similar fixtures. Make sure that the total load of the output does not exceed the maximum wattage (500 W) and the maximum current (2 A). -
Page 17: Operation
Trailing-edge Dimming vs. Leading-edge Dimming The TED Pack Single is a trailing-edge dimmer that supports also leading-edge dimming. See 6.7.5. Dimming Mode on page 23 for more information. -
Page 18: Leading-Edge Dimming
TED Pack Single Leading-edge Dimming Leading-edge dimming is a forward-phase dimming with a phase-cut at the beginning of each wave’s half cycle after the zero crossing (see Fig. 12). The leading-edge dimmers were originally developed to dim incandescent and halogen lamps. As they have a high minimum load, they are not suitable for low wattage LED lamps. -
Page 19: Operation Modes
TED Pack Single Operation Modes The TED Pack Single can be operated in dimmer mode, switch mode, and FX mode. Dimmer Mode In dimmer mode the device functions as a dimmer and you can control the intensity of the light output of the connected fixture(s). -
Page 20: Control Panel
Use the ENTER button to open the selected submenu. Start-up At start-up the display shows a splash screen with the logo of Showtec followed by the start screen. The start screen provides information about the selected DMX personality and the configuration of the output: ●... -
Page 21: Menu Overview
TED Pack Single Menu Overview Product code: 50444... - Page 22 TED Pack Single Product code: 50444...
-
Page 23: Main Menu Options
TED Pack Single Main Menu Options The main menu has the following options: DMX Address Curve DMX Person Manual Information DMX Fail Status Dimmer Speed Dimmer Mode Display OFF Min Output Display Invert Max Output Factory Reset DMX Merge Press the UP/DOWN buttons to navigate through the main menu. -
Page 24: Information
TED Pack Single Information In this menu you can view the device’s parameters: frequency, firmware version, date of installation of the firmware, and UID. Status In this menu you can view the dimming percentage selected in manual mode. See 6.7.10 Manual on page 24 for more information. -
Page 25: Maximum Output
TED Pack Single Maximum Output In this menu you can set the maximum light output of the connected fixture(s). Press the UP/DOWN buttons to set the maximum light output. The selection range is 49–100 %. Note: In switch mode and in FX mode you cannot set the maximum light output of the connected fixture(s). -
Page 26: Dmx Fail
TED Pack Single DMX Fail In this menu you can set the behavior of the device in case of a DMX failure. Press the UP/DOWN buttons to select one of the following 3 options: ● Manual: The device will use the values selected in manual mode. See 6.7.10. Manual on page 24 for more information ●... -
Page 27: Dmx Channels
TED Pack Single DMX Channels Dimmer Switch Function Value Setting 1 CH 1 CH 2 CH Dimmer 000–255 Output 1 adjustable (0–100 %) Switch 000–127 Output 1 disabled (set to 0 %) 128–255 Output 1 enabled (set to 100 %) Safety channel 000–120... -
Page 28: Rdm Information
TED Pack Single RDM Information This device supports RDM. Refer to 6.9.2. Supported RDM PIDs for the Device for more information. RDM Details ● Responder ID: 29B4:090XXXXX ● Manufacturer's ID: Showtec (Highlite International B.V.) ● Manufacturer Label: Showtec ● Model Description: TED Pack Single ●... -
Page 29: Troubleshooting
TED Pack Single Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 30: Preventive Maintenance
TED Pack Single Preventive Maintenance Attention Before use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. ● The safety devices are not damaged. -
Page 31: Deinstallation, Transportation And Storage
TED Pack Single Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 32 ©2022 Showtec...
