Summary of Contents for SHOWTEC Galactic RGB850

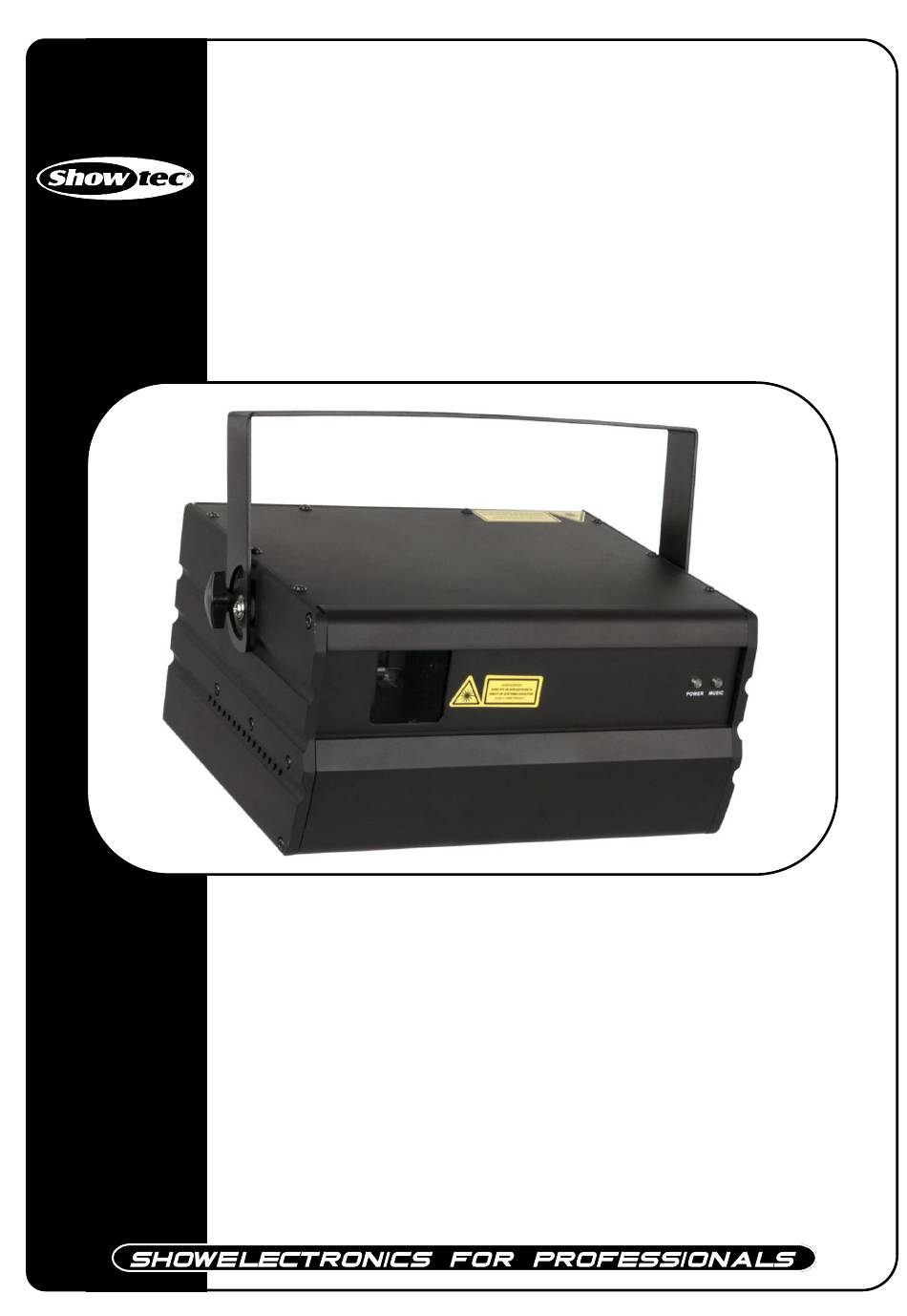

- Page 1 Galactic RGB850 ORDERCODE 51329 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 3 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 4: Table Of Contents
Showtec Showtec Galactic RGB850 Product Guide ™ Warning ....................................2 Safety Instructions ................................. 2 Laser safety for a Class 4 Laser Product ........................4 Operating Determinations ............................5 Rigging .................................... 5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Overview .................................. -
Page 5: Warning
Your shipment includes: • Galactic RGB850 with IEC powercable 1,75m • Rugged Case with keys • Remote plug and 2 keys •... - Page 6 For replacement use fuses of same type and rating only. The user is responsible for correct positioning and operating of the Galactic RGB850. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 7: Laser Safety For A Class 4 Laser Product
Laser safety for a Class 4 Laser Product CAUTION: AVOID EXPOSURE TO BEAM: Avoid direct eye contact with laser light. Never intentionally expose your eyes or others to direct laser radiation. Compliance Statement Your Galactic Laser has been designed to comply with FDA and IEC Standards for it classification. The Galactic is a Class 4 laser product. -
Page 8: Operating Determinations
Proper Usage Safety and Compliance Information According to FDA Regulations you should operate this product as stated on the left. Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. •... -
Page 9: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN... -
Page 10: Description Of The Device

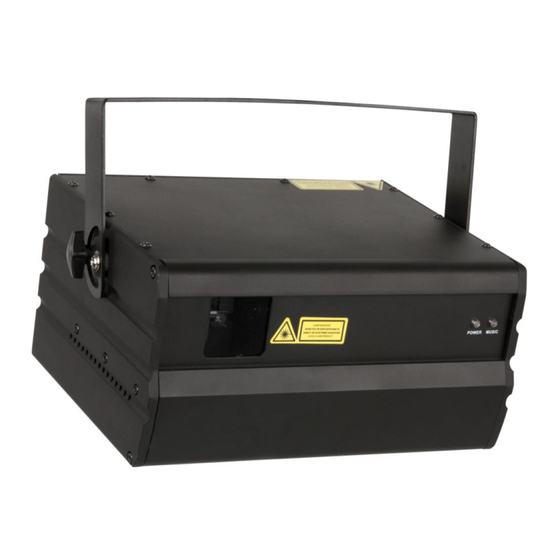

Description of the device Features The Showtec Galactic RGB850 is a laser effect with high output and great effects. • When using multiple units together, you can make a great and cost effective beam-show • Create your own designs and shows, with any kind of ILDA laser software •... -
Page 11: Backside
Backside Fig.2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1) Mountingbracket with adjustment screw 10) Microphone 2) SD Slot 11) Safety Eye 3) LCD Display + Menu Buttons 12) Cooling Fan 4) Music Sensitivity 13) 3-pin DMX Out 5) X-Size 14) ON/OFF, IEC Powerconnector + Fuse 1,6A... -
Page 12: Set Up And Operation
Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Connect the device to the main power supply. The device can be music-controlled by its built-in microphone. -
Page 13: Control Modes
Control Modes There are 4 modes: • Autoshow 1 Autoshow 2 • Musicshow 1 + Musicshow 2 • Master/Slave • DMX512 One Galactic (Autoshow 1+2) 1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 2. -
Page 14: Multiple Galactic (Dmx Control)
Multiple Galactic (DMX Control) Fasten the effect light onto firm trussing Leave at least 1 meter on all sides for air circulation. 2. Always use a safety cable (ordercode 70140 / 70141). Use a 3-p XLR cable to connect the Galactic lasers. Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out"... -
Page 15: Control Panel
Control Panel Fig. 5 A. LED Display D. Down Button B. Func Button E. Enter Button C. Up Button Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. DMX Addressing The control panel on the front side of the base allows you to assign the DMX fixture address, which is the first channel from which the Galactic will respond to the controller. -
Page 16: Menu Overview
Menu Overview... -
Page 17: Main Menu Options
Main Menu Options 1. Automatic / Sound-controlled Show 2. SD Show 3. DMX address 4. Master/Slave Mode 5. Setting Menu: Colours, Mirror, Sensitivity 1. Automatic / Sound-controlled Show 1) Press the FUNC button, until the display shows 2) Use the Up / Down buttons to scroll through the entire menu. is a fast and exhilarating show, which is better suited for disco applications is a slow and relaxing show, which is better suited for lounge applications is a fast and exhilarating show, which is better suited for disco applications... -
Page 19: Dmx Mode
4) Press ENTER to open a specific folder. 5) Press Up / Down buttons to choose your show mode: ILDA single show PRG preprogrammed show. 6) Press ENTER to confirm the desired laser show. 7) Use the Up / Down buttons to scroll through the entire file menu. Attention: Please ONLY put ILD-format laser shows on the SD card. -
Page 20: Settings Mode
5. Settings Mode With this menu you are able to create a special setup. 1) Press the FUNC button, until the display shows 2) Use the Up / Down buttons to choose between 3 main menus: Colour, Mirror or Music. 3) Press ENTER to open a specific menu. -
Page 21: Dmx Channels
DMX Channels 13 Channels Channel 1 – Built-in Programs / Sound-controlled Mode 0-73 Laser OFF 74-110 PRG Show only via the SD card 111-147 ILD Show only via the SD card 148-165 Auto Show 1 166-184 Auto Show 2 185-202 Music-controlled Show 1 203-221 Music-controlled Show 2... - Page 22 Channel 7 – Y-axis Rolling 0-10 No Rolling 11-110 0-359 degree fixed Y Axis rolling 111-255 Rolling from slow to fast Channel 8 – X-axis Rolling 0-10 No Rolling 11-110 0-359 degree fixed X Axis rolling 111-255 Rolling from slow to fast Channel 9 –...
-
Page 23: Patterns
Patterns 000-001 051-053 102-104 153-155 207-209 002-005 054-056 105-107 156-158 210-212 006-008 057-059 108-110 159-161 213-215 009-011 060-062 111-113 162-164 216-218 012-014 063-065 114-116 165-167 219-221 015-017 066-068 117-119 168-173 222-224 018-020 069-071 120-122 174-176 225-227 021-023 072-074 123-125 177-179 228-230 024-026 075-077... -
Page 24: Ild And Prg Files On Sd Card
ILD and PRG files on SD Card Beam Character Traffic 3_cube.ild 2_circle.ild alice.ild 747.ild 3D.PRG 8_circle.ild BELLE.ild balloon.ild maze.ild 8_flower.ild Character.PRG Camero.ild molecule.ild Beam.PRG MAGIC.ild DAYBOAT.ild mystify.ild beat.ild Naked.ild formula1.ild PLASMA.ild c_cirle.ild neptune.ild Galleon.ild SPIND.ild c_Line.ild Pamela.ild Jet.ild SWIRL.ild cir_roat.ild Vampress.ild plane.ild tunnel.ild... -
Page 25: Maintenance
Maintenance The Showtec Galactic requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and a soft cloth. - Page 26 Problem Probable cause(s) Remedy No power to the fixture • Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. • Replace fuse. completely dead. Fixtures reset The controller is not connected. •...
-
Page 27: Product Specification
Product Specification Model: Showtec Galactic RGB850 The Showtec Galactic RGB850 is a laser effect with high output and great effects. • When using multiple units together, you can make a great and cost effective beam-show • Create your own designs and shows, with any kind of ILDA laser software •...
