General monitoring functions

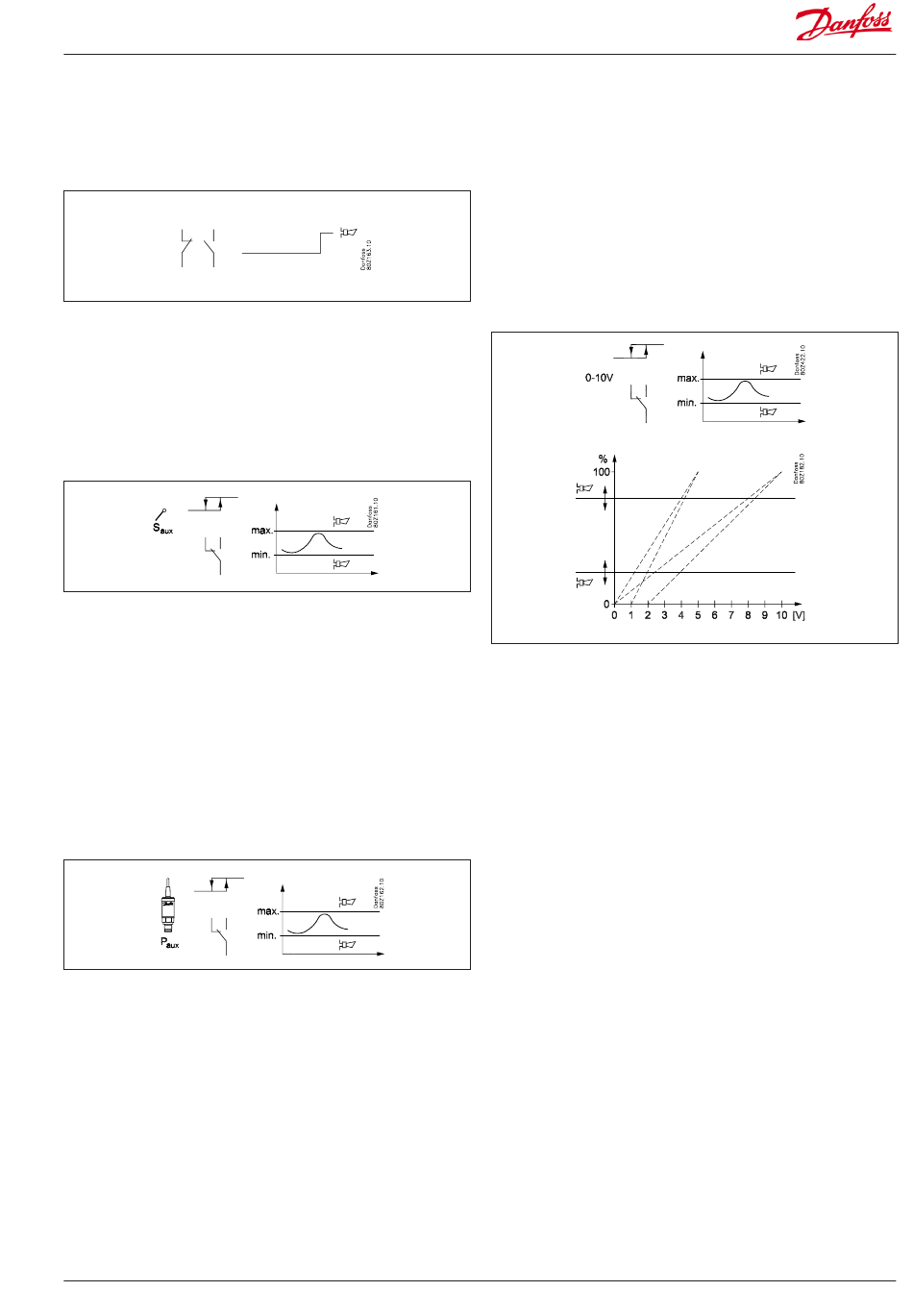

General alarm inputs (10 units)
An input can be used for monitoring an external signal.
The individual signal can be adapted to the relevant use as it is
possible to give the alarm function a name and to indicate your
own alarm text.
A time delay can be set for the alarm.
General thermostat functions (5 units)
The function may freely be used for alarm monitoring of the plant
temperatures or for ON/OFF thermostat control. An example could
be thermostat control of the fan in the compressor compartment.
The thermostat can either use one of the sensors used by the
regulation (Ss, Sd, Sc3) or an independent sensor (Saux1, Saux2,
Saux3, Saux4).
Cutin and cutout limits are set for the thermostat. Coupling
of the thermostat's output will be based on the actual sensor
temperature. Alarm limits can be set for low and high temperature,
respectively, including separate alarm delays.
The individual thermostat function can be adapted to the relevant
application as it is possible to give the thermostat a name and to
indicate alarm texts.
General pressure control functions (5 units)
The function may freely be used for alarm monitoring of plant
pressure or for ON/OFF pressure control regulation.
The pressure control can either use one of the sensors used by the
control function (Po, Pc) or an independent sensor (Paux1, Paux2,
Paux3).
Cutin and cutout limits are set for the pressure control. Coupling of
the pressure control's output will be based on the actual pressure.
Alarm limits can be set for low and high pressure, respectively,
including separate alarm delays.
The individual pressure control function can be adapted to the
relevant application as it is possible to give the pressure control a
name and indicate alarm texts.
AK-CC 750A RS8HP102 © Danfoss 2018-09
General voltage input with ancillary relay (5 units)
5 general voltage inputs are accessible for monitoring of
various voltage measurements of the installation. Examples are
monitoring of a leak detector, moisture measurement and level
signal - all with ancillary alarm functions. The voltage inputs can
be used to monitor standard voltage signals (0-5V, 1-5V, 2-10V or
0-10V). If required, one can also use 0-20mA or 4-20mA if external
resistance is placed at the inlet to adjust the signal to the voltage.
A relay outlet can be attached to the monitoring so that one can
control external units.
For each inlet, the following can be set/read out:
- Freely definable name
- Selection of signal type (0-5V, 1-5V, 2-10V, or 0-10V)
- Scaling of read-out so it corresponds to measuring unit
- High and low alarm limit including delay times
- Freely definable alarm text
- Attach a relay output with cut in and cut-out limits including
delay times
85
