Setup separate thermostat functions

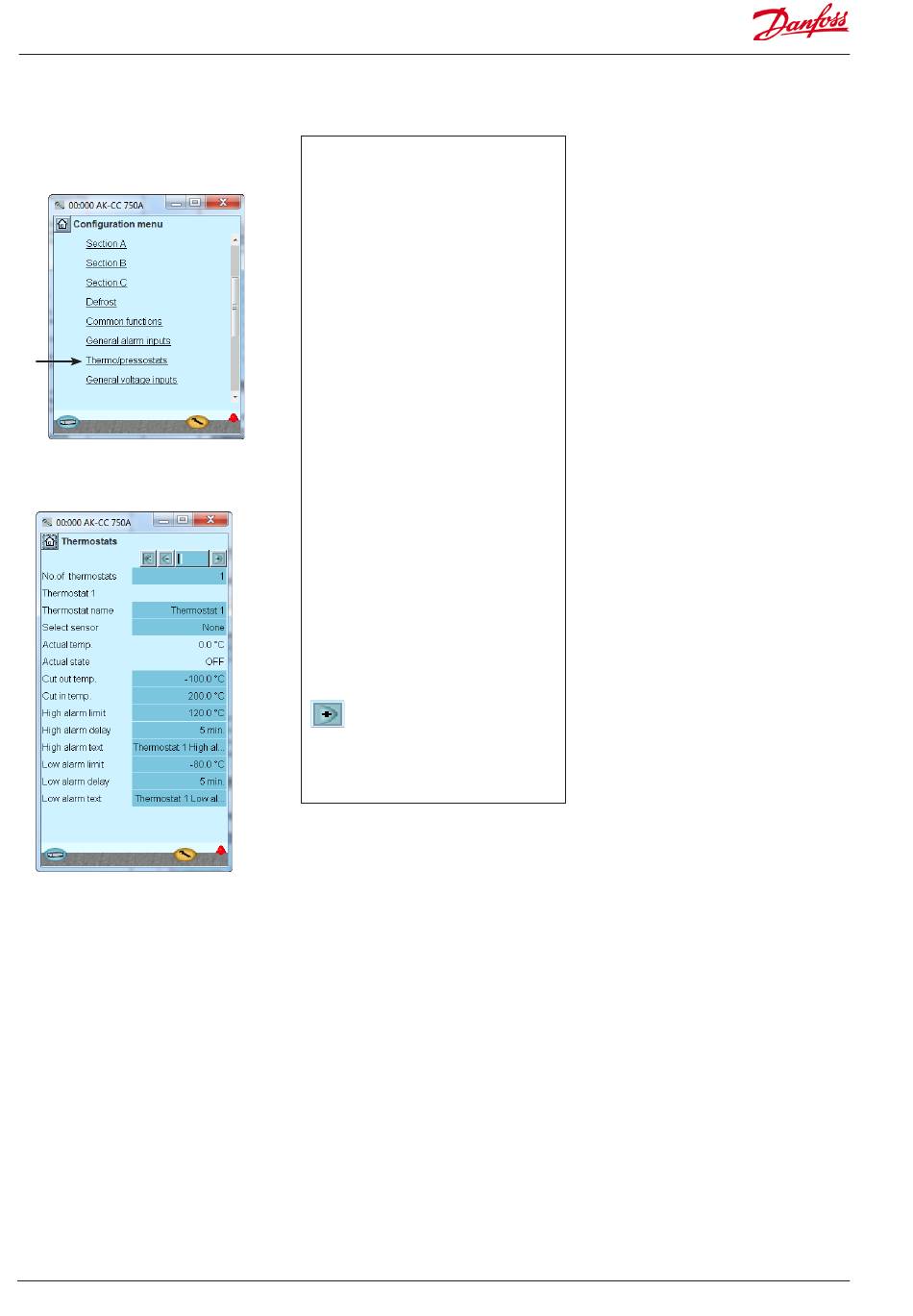

1. Go to Configuration menu
2. Select Thermostats
3. Define the required thermostat
function
58
In our example we are not using this function
so the image is more for information
purposes.
The name of the function can be xx and the
alarm text can be entered further down the
screen).
Via the +- button you can move to
similar settings for the pressure control
functions. (Not used in the example)
RS8HP102 © Danfoss 2018-09
3 - Thermostats
The general thermostats can be used to monitor
the temperature sensors that are used in the
control, as well as 4 extra temperature sensors.
Each thermostat has a separate outlet to control
external automation.
No. of thermostats
Set the number of general thermostats. (1-5)
For each thermostat adjust
• Name
• Which of the sensors is used
Actual temp.
Temperature measurement on the sensor that is
attached to the thermostat
Actual state
Actual status on the thermostat outlet
Cut out temp.
Cut-out value for the thermostat
Cut in temp.
Cut-in value for the thermostat
High alarm limit
High alarm limit
Alarm delay high
Time delay for high alarm
Alarm text high
Indicate alarm text for the high alarm
Low alarm limit
Low alarm limit
Alarm delay low
Time delay for low alarm
Alarm text low
Indicate alarm text for low alarm
3b - Pressostats
There are equal settings for up to 5 pressostat
functions
