Danfoss NovoCon S Operating Manual

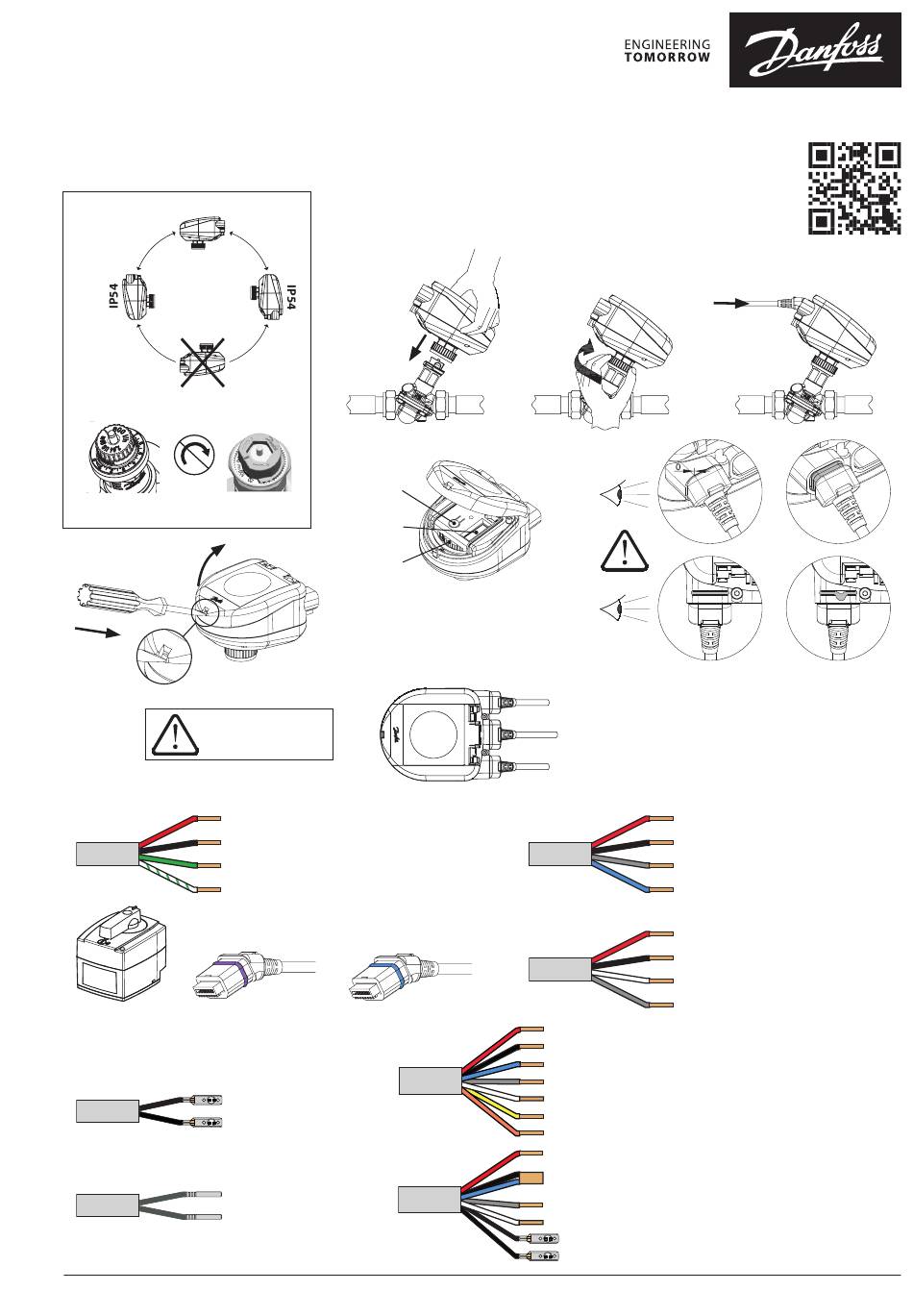

Operating Guide

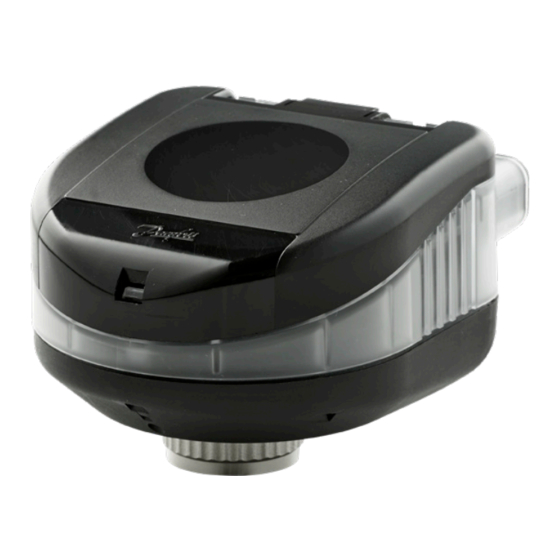

NovoCon® S - High Accuracy Actuator
IP54
❶ ①
②
DN 15 - 32
NO presetting!
DN 15, 20
10 [100 %]
②
❺
①
❼
Common ground shall be
used for all devices on the
same network.
NovoCon® digital cable
Red
Black
Green
White/green
Actuator NovoCon®
ChangeOver
NovoCon® Energy cable
- PT1000 surface sensors
NovoCon® Energy cable
- PT1000 immersed sensors
© Danfoss | 2024.03
❷
❻
①
DN 25, 32
100 %
②
③
Manuel Calibration: Press button ①
until two LED's are turned on, and
then release again.
DIP switch: ②
Manual override: Adjust wheel ③
Power
Common ground for power
and bus signal wire
´+´ non-inverting signal wire
´−´ inverting signal wire
Actuator NovoCon®
ChangeOver
6
Purple O-ring
Blue O-ring
NovoCon®
I/O cable
Cable NovoCon®
Temperature I/O
❸
Digital port
Port for CO6 actuator or Energy cable, I/O cable,
analog cable or voltage booster.
Digital port
NovoCon® analog cable
Actuator NovoCon® ChangeOver
6 Energy
Red
Black
Blue
Grey
White
Yellow
Orange
Red
Black
Blue
Grey
White
NovoCon® S / 73690900
❹


Red Power 24V
Black GND
Grey Analog input or Flow sensor
Blue Analog input ground
6 Flexible
Red Power 24V
Black GND
White CO6 Control signal
Grey CO6 Feedback signal
Power 24V
Power ground
Ground T1, T2, V/mA input & V output signal
V/mA input signal or Flow sensor
V output signal
T1, resistance input or Flow sensor
T2, resistance input or Flow sensor
Power 24V (in/out)
Power ground (in/out)
Ground T1, T2, V/mA input & V output signal
V/mA input signal or Flow sensor
V output signal
T1
T2
AQ251486498741en-010606 | 1


