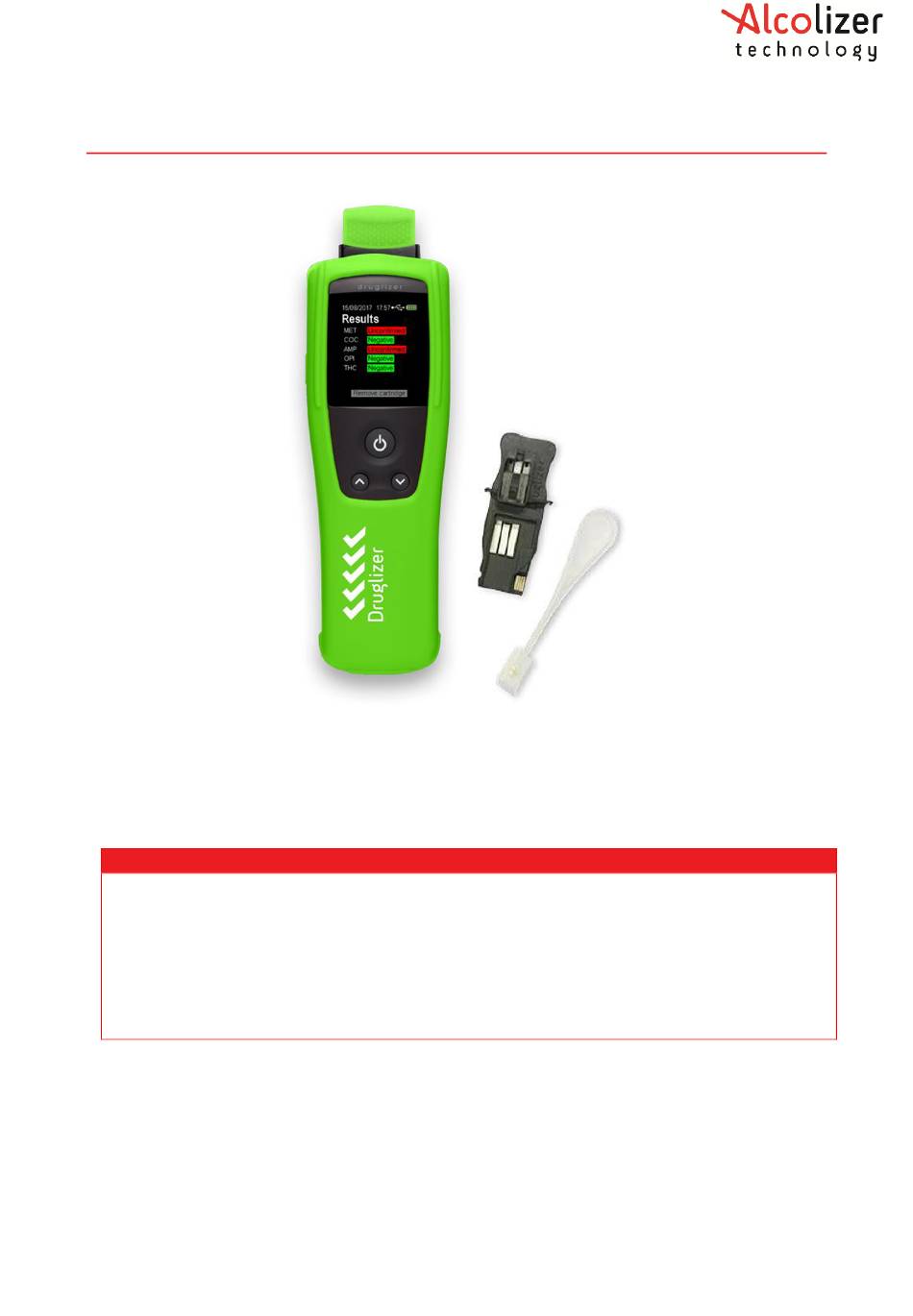

Druglizer LE5 Drug Tester User Manual
Di
Disclaimer – External Documents note to reader
The system is intended to be used by a trained professional to provide a first line screen. A
positive response will require confirmation by a laboratory-based reference assay like Gas
chromatography – Mass Spectrometry (GCMS) or Liquid Chromatography – Mass
Spectrometry (LC-MSMS). Neither the manufacturer, the distributor, nor the owner
accepts liability or responsibility due to any action or claim arising from the reading
produced by this instrument, whether used correctly or incorrectly.
REF: Druglizer LE5 Drug Tester User Manual V7.docx
Uncontrolled when printed
Page 1
© Alcolizer Technology
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alcolizer Druglizer LE5
Summary of Contents for Alcolizer Druglizer LE5
- Page 1 Spectrometry (LC-MSMS). Neither the manufacturer, the distributor, nor the owner accepts liability or responsibility due to any action or claim arising from the reading produced by this instrument, whether used correctly or incorrectly. REF: Druglizer LE5 Drug Tester User Manual V7.docx Page 1 © Alcolizer Technology...
-
Page 2: Table Of Contents
11 TEST RECORDS ........................15 12 SERVICE LIFE ........................16 12.1 Calibration alerts ....................16 12.2 Replacing sample module ..................17 13 TECHNICAL SPECIFICATIONS .................... 19 REF: Druglizer LE5 Drug Tester User Manual V7.docx Page 2 © Alcolizer Technology Uncontrolled when printed... -
Page 3: Introduction
1 INTRODUCTION The Druglizer LE5 Drug Testing System is for the rapid oral fluid screening of drugs of abuse. The system incorporates a Druglizer LE5 Drug Tester Cartridge (Druglizer LE5 Cartridge), a Druglizer Oral Fluid Collector and a Druglizer LE5 Drug Tester instrument (Druglizer LE5, purchased separately). -
Page 4: Test Principle
2 TEST PRINCIPLE The Druglizer LE5 Drug Testing System is based on a competitive lateral flow immunoassay technique where drug molecules that may be present in the oral fluid sample compete with the same drug attached to the nitrocellulose wicking membrane, for limited binding sites on tagged drug specific antibodies. -
Page 5: Warnings And Precautions
CAUTION Failure to follow this warning may result in an “Invalid” test. While the Druglizer LE5 is a robust instrument, it does contain sensitive instrumentation and should not be subject to rough handling or become submerged in water. Do not store instrument in direct sunlight or places where extreme temperature conditions can occur. -
Page 6: Functional Features
5 Functional Features Cartridge USB Port receptor Test Key LCD colour graphics display Up Key Silicon Down Key cover Charge Foil pouch Collector Cartridge REF: Druglizer LE5 Drug Tester User Manual V7.docx Page 6 © Alcolizer Technology Uncontrolled when printed... -
Page 7: Menu And Navigation
Configuration > Printing AlcoCONNECT Configure < Back Language Metafields < Back < Back About > Device Cartridge Status Service Authorisation Back Help < Back REF: Druglizer LE5 Drug Tester User Manual V7.docx Page 7 © Alcolizer Technology Uncontrolled when printed... -
Page 8: Records
6.2 Configuration 6.2.1 Printing The printing function enables the printing of records by connecting the Druglizer LE5 to a portable printer via Bluetooth connection. The instrument supports the printer “Bixolon SPP- R200”. For printing instructions please refer to section 7. -
Page 9: About
This menu allows you to switch the device off. 7 PRINTING AND BLUETOOTH The printing function enables the printing of records by connecting the Druglizer LE5 to a portable printer via Bluetooth connection. The instrument supports the following printer: •... -
Page 10: Battery Care And Charging
The Battery Charging Port is located beneath the wrist strap bracket and facilitates connection to the battery chargers included with the instrument. The Druglizer LE5 is equipped with rechargeable Li-ION batteries. As such it should not be tampered with in anyway. Should any problems occur that are related to the battery, contact your local Alcolizer Technology representative for advice. -
Page 11: Performing A Test
• A Collector Indicator is located opposite the Collector pad and will change to a blue colour when sufficient saliva is taken. REF: Druglizer LE5 Drug Tester User Manual V7.docx Page 11 © Alcolizer Technology Uncontrolled when printed... - Page 12 For optimal hygiene – both in a test and for a Druglizer LE5 – ensure the sampled Collector surface is not pooled with excessive saliva. REF: Druglizer LE5 Drug Tester User Manual V7.docx Page 12 © Alcolizer Technology Uncontrolled when printed...
- Page 13 • Results displayed are either of the following: • The Time Remaining counter is replaced by a “Remove cartridge” message. • REF: Druglizer LE5 Drug Tester User Manual V7.docx Page 13 © Alcolizer Technology Uncontrolled when printed...
-
Page 14: Interpretation Of Results
UNCONFIRMED (red) – concentration of drug is above detectable level of the test. • INVALID (grey) – likely due to insufficient or premature saliva sampling. REF: Druglizer LE5 Drug Tester User Manual V7.docx Page 14 © Alcolizer Technology Uncontrolled when printed... -
Page 15: Test Records
As the instrument automatically stores records, the memory will eventually reach capacity and the oldest record will be automatically overwritten. Regular downloading of records using AlcoCONNECT Toolbox is recommended. REF: Druglizer LE5 Drug Tester User Manual V7.docx Page 15 © Alcolizer Technology... -
Page 16: Service Life
12 SERVICE LIFE 12.1 Calibration alerts The Druglizer LE5 requires calibration every six months to maintain optimum performance. The instrument will display ‘Service Life Pending’ warning message 30 days before calibration is required. The ‘Service Life Pending’ will be displayed each time the instrument is turned on until calibration is performed. -
Page 17: Replacing Sample Module
12.2 Replacing sample module Rather than returning the instrument to Alcolizer for service, the module can be removed and sent in. This saves money and if the owner details are known and maintained with Alcolizer Technology, arrangements can be made to forward a replacement sample module prior to the calibration being overdue. - Page 18 Following the replacement of the sample module, send the out-of-calibration module back to Alcolizer. The instrument can be returned to Alcolizer Technology for calibration should the owner prefer prior to the number of days warning message period expiring. To arrange calibration, contact Alcolizer Technology.
-
Page 19: Technical Specifications
13 TECHNICAL SPECIFICATIONS REF: Druglizer LE5 Drug Tester User Manual V7.docx Page 19 © Alcolizer Technology Uncontrolled when printed...
