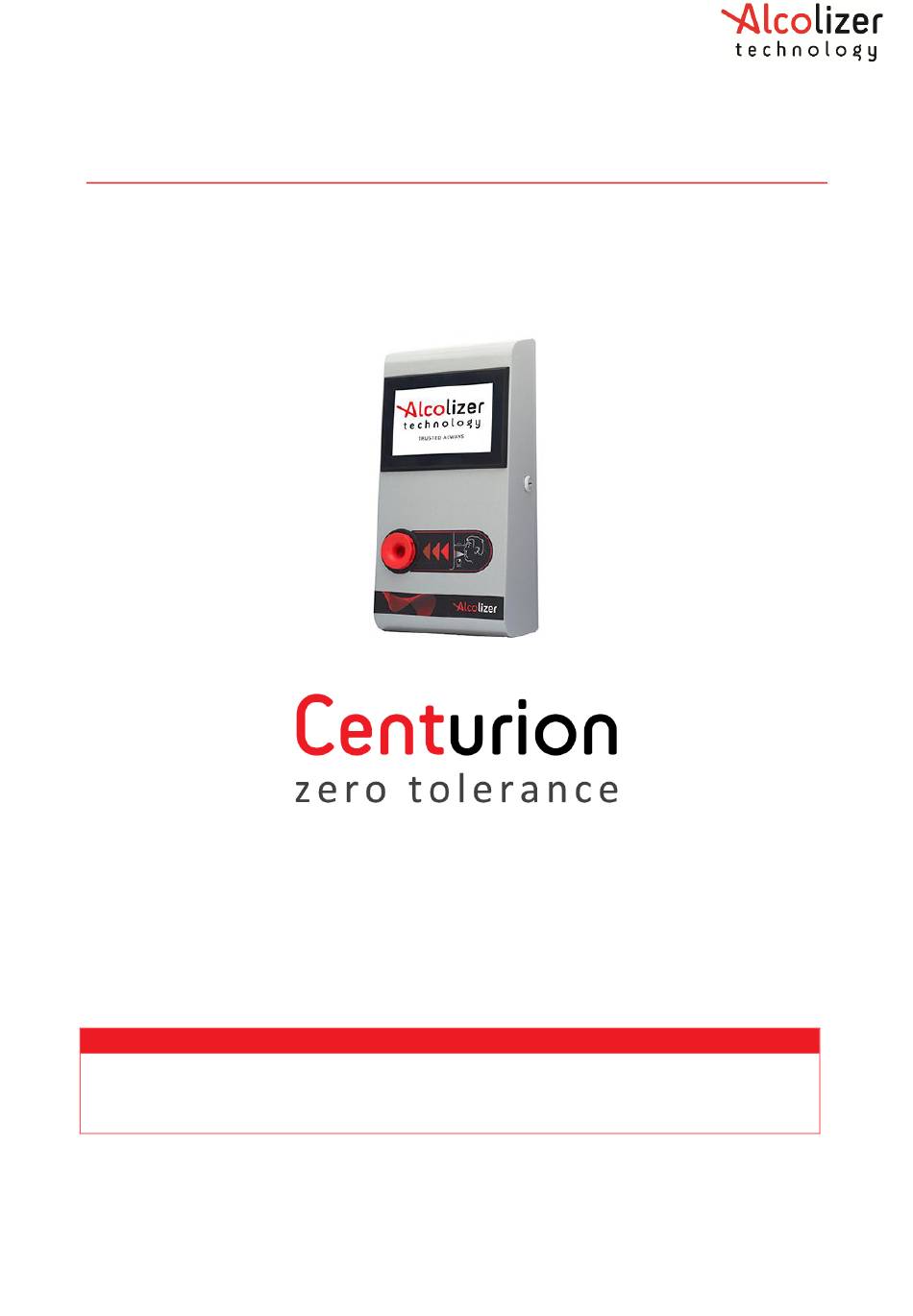

Alcolizer Centurion User Manual
Zero tolerance
For more information, please visit alcolizer.com
Table of Contents
Advertisement
Quick Links
Alcolizer Centurion User Manual
Product User Manual
Disclaimer – External Documents note to reader
The BAC reading obtained by correct use of this device is only considered accurate at the time of testing.
Great care has been taken to ensure the accuracy of each reading.
Neither the manufacturer, the distributor, nor the owner accepts liability or responsibility due to any action
or claim arising from the reading produced by this device, whether used correctly or incorrectly.
Di
REF: Centurion User Manual V3.docx
Page 1
© Alcolizer Technology
Advertisement
Table of Contents
Related Manuals for Alcolizer Centurion
Summary of Contents for Alcolizer Centurion
- Page 1 Neither the manufacturer, the distributor, nor the owner accepts liability or responsibility due to any action or claim arising from the reading produced by this device, whether used correctly or incorrectly. REF: Centurion User Manual V3.docx Page 1 © Alcolizer Technology...
-
Page 2: Table Of Contents
Contents INTRODUCTION ........................5 DESCRIPTION OF CENTURION .................... 5 The Instrument ......................5 Specifications....................... 5 Equipment Overview ....................6 2.3.1 External view ......................6 2.3.2 Internal view ......................7 INSTALLATION PROCEDURE ....................8 Installing the Back Plate ....................8 3.1.1 Mounting location.................... - Page 3 12.3.2 Instrument Status ....................31 12.3.3 Event Log Report ....................31 13 Relays ..........................31 13.1 Hardware ....................... 32 13.2 Configuration ......................33 14 Functions .......................... 33 14.1.1 Functions Menu ....................33 REF: Centurion User Manual V3.docx Page 3 © Alcolizer Technology...
- Page 4 Saving software into the USB stick ................ 35 16.2 Installing the update on your Centurion ............... 35 16.3 Checking the software version in your Centurion ..........37 17 CALIBRATION........................38 18 Epsom TM20 Printer Setup ....................39 19 Troubleshooting ....................... 39 REF: Centurion User Manual V3.docx...
-
Page 5: Introduction
2 DESCRIPTION OF CENTURION 2.1 The Instrument Centurion is equipped with the latest technology, and is designed to accommodate a wide range of uses across many industries. This Breathalyzer is designed for high volume, fixed point commercial and industrial alcohol breath testing applications where you need a “Go”... -
Page 6: Equipment Overview
If the supply cord is damaged, a risk of electrocution exists. It must be replaced by the manufacturer, an approved service agent or similarly qualified persons. Should the instrument be damaged or require servicing, contact Alcolizer on 1300 789 908. 2.3 Equipment Overview With a long lasting and durable steel construction, Centurion is manufactured to withstand long-term use. -
Page 7: Internal View
2.3.2 Internal view USB Ports Function buttons Sample Module Knob Thumb REF: Centurion User Manual V3.docx Page 7 © Alcolizer Technology... -
Page 8: Installation Procedure
The instrument must be mounted and positioned at a height to accommodate the majority of users and in such a way to allow access to the key lock and to allow the machine to swing open. REF: Centurion User Manual V3.docx Page 8 © Alcolizer Technology... -
Page 9: Mounting Instructions
6. Remove the screen protector film from the front of the display screen. 3.2.2 Initial starting Perform the following steps for the initial start-up: 1. The Centurion will automatically begin the start-up process once you plug it into the mains power. REF: Centurion User Manual V3.docx Page 9 ©... -
Page 10: Operating Instruction
For accurate results, food or drink must not be consumed for the 10 minutes prior to testing. a. Start blowing and continue blowing until the progress bar reaches 100%. During the blow sequence, a beeping sound will be heard. REF: Centurion User Manual V3.docx Page 10 © Alcolizer Technology... -
Page 11: Analysing The Breath Sample
The invalid blow screen is displayed if the user stops blowing half way through a sample being taken, they blow too softly, blow too hard or not blowing directly into module as indicated on the front of the Centurion . REF: Centurion User Manual V3.docx Page 11 ©... -
Page 12: Owner Servicing
4. Ensure the Sample Inlet is not blocked. Flow Sample Diverter Port Sample Inlet REF: Centurion User Manual V3.docx Page 12 © Alcolizer Technology... -
Page 13: Cleaning Frequency
6 USER CONTROLS 6.1 Buttons Inside the Centurion are buttons which can be used to access certain menus during setup and fault finding. Users should not access the machine and press these buttons unless specifically requested to by instructions in this manual or verbally when in contact with your Alcolizer Technology technical representative. -
Page 14: Keyboard
Alcolizer Technology technical representative. Access the USB ports by unlocking the Centurion and swinging it open. There are four ports located on the main circuit panel. REF: Centurion User Manual V3.docx Page 14 ©... - Page 15 When the unit is open or not installed on the back plate, electrical components are exposed. The following steps require the user to open the Centurion with power applied. During the procedures ensure only the ports mentioned are touched. Do not come in contact with any other exposed components.
-
Page 16: User Interface
To access the User Menu, perform the following steps: 1. Connect a keyboard in accordance with paragraph 6.2. 2. Press the F1 key to access the Centurion User Menu area. 3. Press the left Alt key to bring up available menu choices. -
Page 17: Status
The status page will provide a variety of information for the user: 7.2.1 Instrument • Serial Number: A number that uniquely identifies the Centurion. This number is also printed on the side panel safety label located on the side of the instrument. -
Page 18: Network Connections
WARNING When the instrument is open or not installed on the back plate, electrical components are exposed. The following steps require the user to open the Centurion with power applied. Do not come in contact with any exposed components. 7.3 About... -
Page 19: Settings
8.1 Instrument Information The instrument information feature allows a customer to add user-specific descriptions of the instrument (e.g. “Site 13, Gate B”). This description is included in all email reports default. REF: Centurion User Manual V3.docx Page 19 © Alcolizer Technology... -
Page 20: Clock
(via the wired Ethernet connection). There is no need to manually adjust it if connected to the internet. In order for the Centurion to display the correct date and time, the time zone must be set correctly. The display format is set to YYYY-MM-DD HH:MM:SS and cannot be changed. -
Page 21: Shutdown Instrument
Off: Shutdown the instrument so that mains power can be removed. This method or the OFF button on the back of the board localised internally in the Centurion, are the only two ways to correctly power off the instrument. REF: Centurion User Manual V3.docx Page 21 ©... -
Page 22: Custom Appearance
4. Type the required text in the free text field for the highlighted screen. 5. To activate a free text of a specific screen, tick the box beside the screen name. REF: Centurion User Manual V3.docx Page 22 © Alcolizer Technology... -
Page 23: Intervals
ID entry followed by the date and time and a brief description of the logged event. By selecting an item in this panel, a more detailed view of the selected log record is presented below the list of log records REF: Centurion User Manual V3.docx Page 23 © Alcolizer Technology... -
Page 24: Export
Cleared. Data analysis enabled. 10.2 Export Logs can be exported from the instrument into USB flash drive both by using different options. • Logs / Export Menu • Functions Menu REF: Centurion User Manual V3.docx Page 24 © Alcolizer Technology... -
Page 25: Exporting
To erase the current event log records on the device, go to Logs / Export menu and use the Erase Event Log button. 11 NETWORKS 11.1 Configuration The configuration panel provide general information about the network connection and device. REF: Centurion User Manual V3.docx Page 25 © Alcolizer Technology... -
Page 26: Network Setup
The network IPv4 Configuration can be set to obtain an IP address automatically or use a static IP address. Establish an internet connection as follows: 1. Connect the Centurion to an internet receptacle via the Ethernet cable. 2. Connect a keyboard/mouse and access the User Menu in accordance with the procedures at paragraph 7.1. -
Page 27: Alcolizer Portal
NOTE Please, contact your Alcolizer Technology representative for further information about Alcolizer Portal – AlcoCONNECT. This allows you to monitor many remote sited from a single dash board, and remotely monitor compliance of your Breathalyzer testing assets. 12 EMAIL 12.1 Email Settings... -
Page 28: Settings - Template
The password characters are obscured by default; press the “eye” icon to temporarily display the password characters. REF: Centurion User Manual V3.docx Page 28 © Alcolizer Technology... -
Page 29: Test Mail
• Status: indicates the status of the email/s being sent. • Queue: emails can be seen in the queue that are ready to send; the queue can be cleared by selecting the “Clear Email Queue” tab at the bottom. REF: Centurion User Manual V3.docx Page 29 © Alcolizer Technology... -
Page 30: Email Reports
The instrument can be configured to send an email detailed results of a breath test. This can be done for both negative and positive results. If instrument authentication is enabled, the report can also include information about previous breath tests from the same authentication code. REF: Centurion User Manual V3.docx Page 30 © Alcolizer Technology... -
Page 31: Instrument Status
13 Relays The Centurion is equipped with three relay outputs on the circuit board and their outputs can be configured to trigger in response to a breath test result. To access the Relays Menu, refer to paragraph 7.1. -
Page 32: Hardware
• NO: Normally Open, the COM/NO circuit is open when the relay is not triggered and closed (passes current) when the relay is triggered. Relays x 3 REF: Centurion User Manual V3.docx Page 32 © Alcolizer Technology... -
Page 33: Configuration
3. Having the “Export logs” option selected, press FN4 to start the download. 4. Use the Menu button to select “Exit” and press FN4 to return to the operational screen. 5. On the operational screen you should see a progress bar. REF: Centurion User Manual V3.docx Page 33 © Alcolizer Technology... -
Page 34: Self-Check
One, many, or all tests can be run. Some tests require a degree of user interaction and if this occurs instructions will appear on the screen indicating how to proceed. REF: Centurion User Manual V3.docx Page 34 © Alcolizer Technology... -
Page 35: Upgrade Software
2. Copy the software file (eg. ac-13.1-rc2.software) to a USB stick. 16.2 Installing the update on your Centurion 1. Open the Centurion to have access to the hardware and verify if there is a SDHC card present. If not, contact Alcolizer to provide this card. - Page 36 2. Turn the Centurion on. 3. Ensure the device has started correctly. It should display the message “Start Blowing” on the screen. 4. Insert the USB stick with the software to any of 4 USB ports. On the main screen a message will appear “Verifying Software Upgrade Package”...
-
Page 37: Checking The Software Version In Your Centurion
6. Ensure “Apply Software Update” is highlighted. Press “Select” button (FN4 Button)” on the Centurion board to accept software update. Note: The Centurion will restart and apply the software update. It will take several minutes to complete. DO NOT REMOVE THE USB STICK DURING UPGRADE SOFTWARE PROCESS! 16.3 Checking the software version in your Centurion... -
Page 38: Calibration
ASM, the same method applies in reverse. Ensuring the thumb bolt is not screwed in too tightly. The sample module that was removed needs to be sent to your nearest Alcolizer Pty Ltd distributor in the packaging supplied as per the instructions accompanying your replacement module. -
Page 39: Epsom Tm20 Printer Setup
3. It is recommended to turn the Centurion off. 4. Carefully open the Centurion. 5. Connect printer to the Centurion using USB cable supplied with the printer. Use any available USB port located on the board. 6. Close the Centurion. Then, turn on the Centurion and the printer. - Page 40 Frequently Asked Question Suggested Action My Centurion is displaying an Out Contact Alcolizer Technology. of Order message on the screen T: 1300 789 908 after initial start-up. service@alcolizer.com www.alcolizer.com My Centurion continues to display Contact Alcolizer Technology. Out of Order message on screen T: 1300 789 908 after initial start-up.
