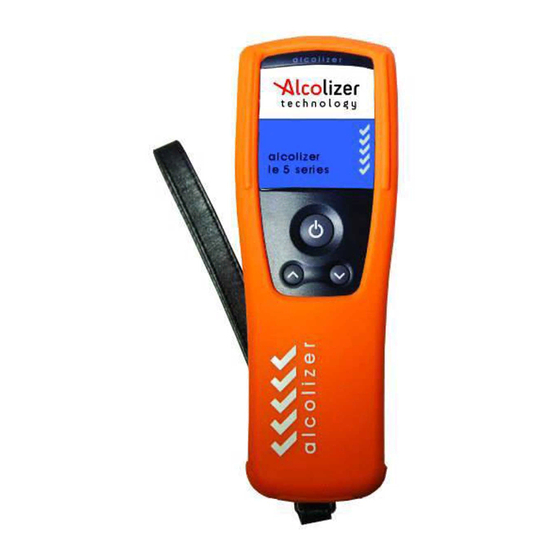

LE5 Alcohol Tester User Manual
User Manual
Disclaimer – External Documents note to reader
The g/210L BrAC reading obtained by correct use of this instrument is only considered accurate at the time
of testing. Great care has been taken to ensure the accuracy of each reading.
Neither the manufacturer, the distributor, nor the owner accepts liability or responsibility due to any action
or claim arising from the reading produced by this instrument, whether used correctly or incorrectly.
© Alcolizer Technology
Page 1
REF: Alcolizer LE5 Alcohol Tester User Manual V15 docx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LE5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alcolizer LE5

Summary of Contents for Alcolizer LE5

  • Page 1 Neither the manufacturer, the distributor, nor the owner accepts liability or responsibility due to any action or claim arising from the reading produced by this instrument, whether used correctly or incorrectly. © Alcolizer Technology Page 1 REF: Alcolizer LE5 Alcohol Tester User Manual V15 docx...

  • Page 2: Table Of Contents

    Test Refusal ............................21 Accessing the Setup Menu ..........................22 Date & Time ............................24 Test Prompts ............................27 Test Options Menu ..........................29 User Menu Setup ............................31 Enable GPS ............................31 © Alcolizer Technology Page 2 REF: Alcolizer LE5 Alcohol Tester User Manual V15 docx...
  • Page 3 Serial Instrument ..........................52 Setting the Bluetooth Serial Instrument PIN ..................54 8.10 Auto Send .............................55 8.10.1 Auto Send Standard ........................56 8.10.2 Auto Send Passive ........................56 Reading Options ............................57 © Alcolizer Technology Page 3 REF: Alcolizer LE5 Alcohol Tester User Manual V15 docx...
  • Page 4 Saving Logs ...........................68 20.2.4 Erasing Event Logs or Clearing Logs on an Instrument ..............69 20.2.5 Configuration Editor ........................69 21 About Screen ..............................70 22 Splash Screen Display .............................71 © Alcolizer Technology Page 4 REF: Alcolizer LE5 Alcohol Tester User Manual V15 docx...

  • Page 5: Introduction

    • Carry bag or protective hard case (optional) • Bluetooth printer (optional). 2.2 Instrument Overview The LE5 is a handheld instrument consisting of a hard-plastic outer case, silicon cover, wrist strap and the following user displays, buttons and adaptor sockets (refer Figure 1): a. Test Key b.

  • Page 6: Lcd Colour Graphics Display

    • BrAC levels in various formats • GPS acquisition data • Printer setup • Records information These and other displays are explained in the Operating Instructions section. © Alcolizer Technology Page 6 REF: Alcolizer LE5 Alcohol Tester User Manual V15 docx...

  • Page 7: Mouthpiece Locator And Sample Inlet Spigot

    Do not store the instrument in direct sunlight or places where extreme temperature conditions can occur. NOTE The LE5 has optional features which may or may not be active on your instrument. The screen images shown in the User Manual may differ to your instrument depending on the features enabled.

  • Page 8: Cleaning Requirements

    • Do not use harsh cleaning agents, abrasive cleaning pads or chemicals. • Rubber gloves should be used during cleaning of the instrument. 3.2 Testing Types The LE5 can perform both Mouthpiece and Passive testing: • Standard – Mouthpiece test •...

  • Page 9: Mouthpieces

    (3) hours. CAUTION The battery in the LE5 instrument is a Li-ION battery. As such, it should not be tampered with in anyway. Should any problems occur that are related to the battery, contact your local Alcolizer representative for advice.

  • Page 10: Turning On The Instrument

    To temporarily hold the display information on the screen at start-up, press and hold any key when turning the instrument on. • The display will show press to test (Refer Figure 5). © Alcolizer Technology Page 10 REF: Alcolizer LE5 Alcohol Tester User Manual V15 docx...

  • Page 11: Mouthpiece Testing

    The instrument will return to the press to test display. If a test time out does occur during a breath test, a new breath test must be performed. © Alcolizer Technology Page 11 REF: Alcolizer LE5 Alcohol Tester User Manual V15 docx...
  • Page 12 If the self-check is unsuccessful an error code will be displayed, the instrument will not accept a breath sample. Contact an Alcolizer representative if an error code is displayed. If error code 81 is present: follow onscreen prompt to restart the device.

  • Page 13: Analysing A Mouthpiece Breath Sample

    BrAC reading. This will normally take a few seconds. In cold climate conditions it may take longer to display the BrAC reading (Refer Figure 11). © Alcolizer Technology Page 13 REF: Alcolizer LE5 Alcohol Tester User Manual V15 docx...
  • Page 14 • Overrange result is if a result above 0.462g/210L is obtained the below screen will appear (Figure 12b) Figure 12b- Overrange screen display © Alcolizer Technology Page 14 REF: Alcolizer LE5 Alcohol Tester User Manual V15 docx...

  • Page 15: Passive Testing

    Passive testing is a test that is performed in a non-invasive manner and without using mouthpieces. Passive testing on the LE5 can activated in one of two ways, either button activated by the operator or pressure activated by the donor blowing.

  • Page 16: Analysing A Passive Breath Sample

    When the Passive standard reading is calculated, it will be displayed and retained until the recovering period has ended. © Alcolizer Technology Page 16 REF: Alcolizer LE5 Alcohol Tester User Manual V15 docx...
  • Page 17 After the recovery period has ended, the instrument is enabled automatically to take an Active Mouthpiece sample (Refer Figure 18). Perform an Active test in accordance with the procedures in section 3.5.1 and 3.5.2. © Alcolizer Technology Page 17 REF: Alcolizer LE5 Alcohol Tester User Manual V15 docx...

  • Page 18: Enabling Passive Only

    Figure 19). • On the Press Passive Test screen, press the Test Key. The instrument will perform a background self-test while Please wait….is displayed on the screen. © Alcolizer Technology Page 18 REF: Alcolizer LE5 Alcohol Tester User Manual V15 docx...
  • Page 19 • Blow firmly into the passive cup, listening until a long beep is heard indicating the breath collection is complete. Stop blowing. • The passive test will have 3 short beeps and clicks followed by a longer beep. © Alcolizer Technology Page 19 REF: Alcolizer LE5 Alcohol Tester User Manual V15 docx...

  • Page 20: Back Operation

    • During these three pump activations, the operator must hold the instrument steady and at the same distance from the subject. To remove the passive cup, pull the cup from the LE5 without bending the cup from the LE5 sample spigot.
