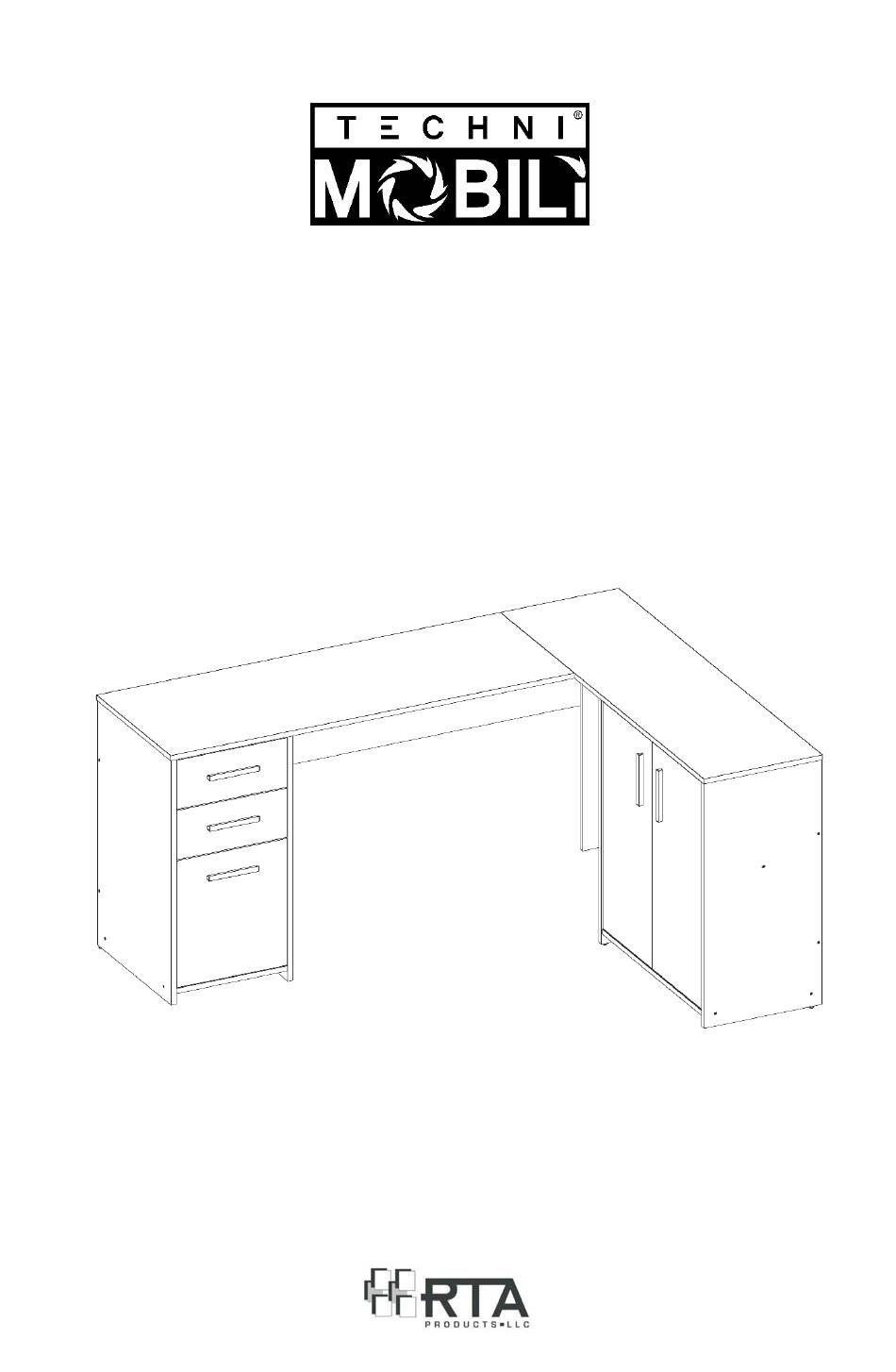

MODEL RTA-914LD
ASSEMBLY INSTRUCTIONS
Thank you for purchasing our product.
REV.022021-0

Advertisement

loading
Need help?

Need help?

Do you have a question about the RTA-914LD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Techni Mobili RTA-914LD

Summary of Contents for Techni Mobili RTA-914LD

  • Page 1 MODEL RTA-914LD ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.022021-0...
  • Page 2 RTA-914LD • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.
  • Page 3 RTA-914LD MAIN PARTS LIST Bottom panel for Left panel for left Back panel for left Right panel for left left cabinet cabinet cabinet cabinet Back-Left Right panel for Long Left tabletop Bottom panel for horizontal panel right cabinet right cabinet...
  • Page 4 RTA-914LD LIST OF HARDWARE, SCREWS AND FITTINGS PART ITEM PART ITEM M6x30 12x12x6mm Nail-in glide Wooden dowels stud M5x31 128mm Bolts Handle M12x9 Cam locks 15x15x40mm Angle bracket ST3.5x40 (Flanged head) Sliders, Set ST3.5x40 of 4 pcs Sets (Flat head) ST3.5x25...
  • Page 5 RTA-914LD ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. ☛ ☛ This unit uses cam bolts and locks. The following explains how to use them. This unit uses cam bolts and locks. The following explains how to use them.
  • Page 6 RTA-914LD BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...

  • Page 7: Assembly Steps

    RTA-914LD ASSEMBLY STEPS STEP 1 Insert the dowels A into the corresponding holes in panels 1, 2, 3, 4, 7, 8, 9, 11, 18 and 19. Hardware: Dowels (NOT INCLUDED) STEP 2 Separate all the sliders pieces N according to their shape (no assembly...
  • Page 8 RTA-914LD STEP 3 With panels 2 and 4 oriented as shown, attach to them the flat sliders N with screws H. The wheels go towards the front and facing down. For Hardware/Tools: best results, attach at the front of the panels first.
  • Page 9 RTA-914LD STEP 4 Assemble panel 2 to panel 1 with screws D as shown. Hardware/Tools: ST3.5x40 (Flanged) (NOT INCLUDED) STEP 5 Assemble panel 3 to panel 2 with screws D. Hardware/Tools: ST3.5x40 (Flanged) (NOT INCLUDED)
  • Page 10 RTA-914LD STEP 6 Assemble the panel 4 to panel 1 with one screw E on the top hole only, then use screws D to secure panels 1, 3 and 4 as shown. Finally, attach Hardware/Tools: the glides K to the bottom of the panels 2 and 4.
  • Page 11 P.10 RTA-914LD P.10 STEP 8 Assemble panel 11 to panels 8 and 9 with screws D. Hardware/Tools: ST3.5x40 This illustration shows the same parts (Flanged) from step 9 but view from the left (NOT INCLUDED) STEP 9 With the help of another person, flip over the parts assembled in step 8,...
  • Page 12 P.11 RTA-914LD P.11 STEP 10 Attach the bolts B to panels 4, 5 and 11 as shown. Hardware: In panel 5 attach to the Bolts holes closer to the edge. (NOT INCLUDED) STEP 11 Attach the glide K to the bottom of panel 14, then assemble the panel to Hardware: panel 5 with screws F as shown.
  • Page 13 P.12 RTA-914LD P.12 STEP 12 With the help of another person, join panel 5 to panel 4. Then insert the cam locks C in panel 5 making sure they are aligned, and turn the cam Hardware: locks as shown and as explained in page 4. Finally, cover the cam locks with I.
  • Page 14 P.13 RTA-914LD P.13 STEP 14 Attach the brackets M to the panels 3, 5, 10 and 12 with screws G as indicated, making sure their corner goes flushed with edge of the panels. Hardware: Then insert the door stopper Q into the corresponding hole on panel 4.
  • Page 15 P.14 RTA-914LD P.14 STEP 16 Assemble the hinges O from the small door 16 to panel 2, and from the large doors 15 to panels 7 and 11 respectively with screws G as shown. large doors to panels respectively with screws...
  • Page 16 P.15 RTA-914LD P.15 STEP 18 Place the tabletops 6 and 13 upside-down over a blanket to protect their surfaces, and attach the bolts B in the outermost holes as shown. Hardware: Bolts (NOT INCLUDED) STEP 19 With the help of another person, carefully place the tabletops 6 and 13...
  • Page 17 P.16 RTA-914LD P.16 STEP 20 Working from underneath, and using screws G, secure the brackets M to the tabletops 6 and 13, then attach the metal plates P in between the Hardware: panels as shown. ST4x12 (NOT INCLUDED) View from...
  • Page 18 P.17 RTA-914LD P.17 STEP 22 For each of the 2 small drawers, attach the bolts B to the indicated holes on panel 17. Then join the panel to panels 18 and 19. Then insert the cam Hardware/Tools: locks C into panels 18 and 19 making sure they go aligned, and turn them to lock the pieces as explained in page 4.
  • Page 19 P.18 RTA-914LD P.18 STEP 25 For each drawer, assemble the L-Shaped sliders O to the bottom of the drawer with screws H. Hardware/Tools: IMPORTANT: Please pay attention to the orientation of the sliders as indicated. ST3x12 Attach the sliders through the indicated holes “L”...
  • Page 20 P.19 RTA-914LD P.19 ALL DONE! Give yourself a nice pat on the back. You did a great job!

  • Page 21: Weight Limits

    P.20 RTA-914LD P.20 AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE FOLLOWING CARE AND MAINTENANCE WARNINGS: WEIGHT LIMITS = 33 Lbs. (15 Kg) = 6.60 Lbs. (3 Kg) = 15.40 Lbs. (7 Kg) • Do not exceed the indicated weight limits.
  • Page 22 P.21 RTA-914LD P.21 TECHNI MOBILI WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY TV Stand/Entertainment Center: 2 YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
  • Page 23 P.22 RTA-914LD P.22 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
