SMWB Series
Antenna
Port
Battery Status LED Indicator
AA batteries can be used to power the transmitter.
The LED labeled BATT on the keypad glows green when
the batteries are good. The color changes to red when
the battery voltage drops down and stays red through
most of the battery life. When the LED begins to blink
red, there will be only a few minutes remaining.
The exact point at which the LEDs turn red will vary with
battery brand and condition, temperature and power
consumption. The LEDs are intended to simply catch
your attention, not to be an exact indicator of remaining
time.
A weak battery will sometimes cause the LED to glow
green immediately after the transmitter is turned on, but
it will soon discharge to the point where the LED will turn
red or the unit will turn off completely.
Some batteries give little or no warning when they
are depleted. If you wish to use these batteries in the
transmitter, you will need to manually keep track of the
operating time to prevent interruptions caused by dead
batteries.
Start with a fully charged battery, then measure the time
it takes for the Power LED to go out completely.
NOTE: The battery timer feature in many
Lectrosonics receivers is very helpful in
measuring battery runtime. Refer to the receiver
instructions for details on using the timer.
4

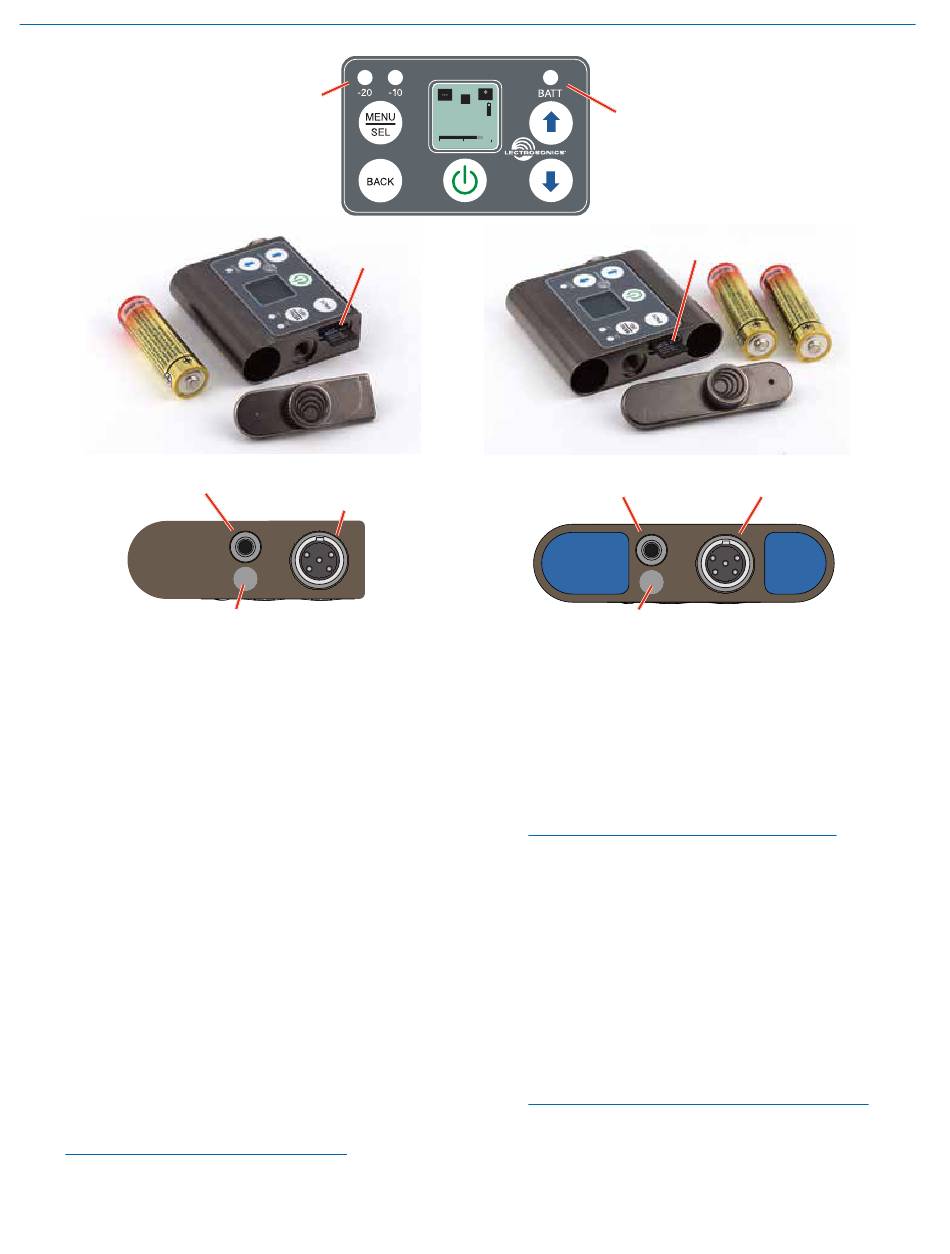

Modulation
Indicators
microSDHC
memory card
port
Audio
Input
Jack
IR (Infrared) Port
REC
Status LED
-40 -20 0
Antenna
Port
IR (Infrared) Port
Menu Shortcuts
From the Main/Home Screen, the following shortcuts are
available:
• Record: Press the MENU/SEL + UP arrow simulta-
neously
• Stop Recording: Press the MENU/SEL + DOWN
arrow simultaneously
NOTE: The shortcuts are only available from
the main/home screen AND when a microSDHC
memory card is installed.
IR (infrared) Sync
The IR port is for quick setup using a receiver with this
function available. IR Sync will transfer the settings for
frequency, step size and compatibility mode from the
receiver to the transmitter. This process is initiated by
the receiver. When the sync function is chosen on the
receiver, hold the IR port of the transmitter near the IR
port of the receiver. (There is no menu item available on
the transmitter to initiate the sync.)
NOTE: If a mismatch exists between the receiver
and transmitter, an error message will appear on
the transmitter LCD stating what the problem is.
Battery
microSDHC
memory card
port
Audio
Input
Jack
