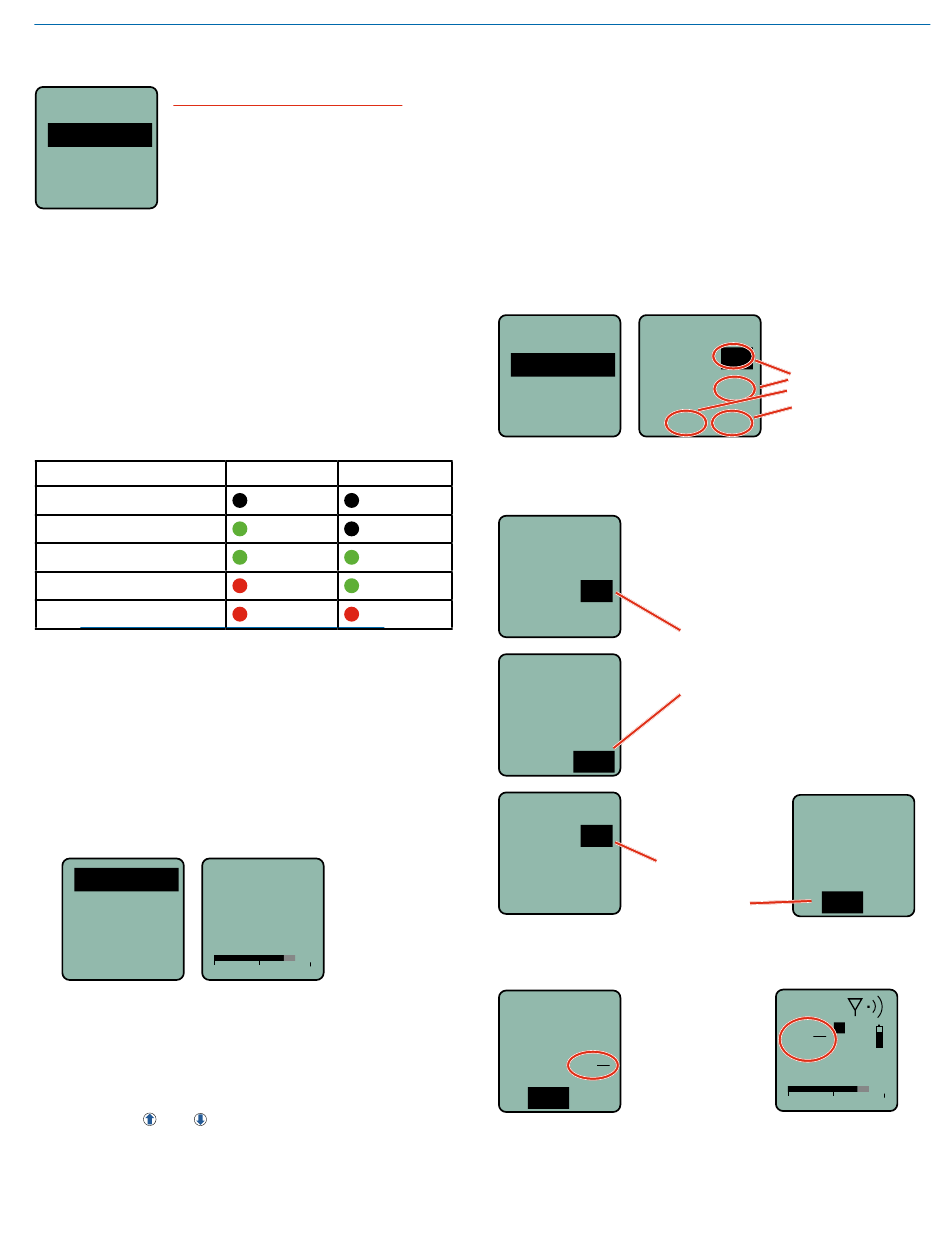

Lectrosonics SMWB/E06 Instruction Manual page 11

Format
Formats the microSDHC memory card.
Files
WARNING: This function erases
any content on the microSDHC
For mat
memory card.
Record
Gain
Record or Stop
Begins recording or stops recording. (See page 7.)
Adjusting the Input Gain
The two bicolor Modulation LEDs on the control panel
provide a visual indication of the audio signal level enter-
ing the transmitter. The LEDs will glow either red or green
to indicate modulation levels as shown in the following
table.
Signal Level
Less than -20 dB
-20 dB to -10 dB
-10 dB to +0 dB
+0 dB to +10 dB
Greater than +10 dB
NOTE: Full modulation is achieved at 0 dB,
when the "-20" LED first turns red. The limiter
can cleanly handle peaks up to 30 dB above this
point.
It is best to go through the following procedure with the
transmitter in the standby mode so that no audio will
enter the sound system or recorder during adjustment.
1) With fresh batteries in the transmitter, power the
unit on in the standby mode (see previous section
Turning Power ON and OFF).
2) Navigate to the Gain setup screen.
Gain
Freq
Rolloff
Compat
-40
3) Prepare the signal source. Position a microphone
the way it will be used in actual operation and have
the user speak or sing at the loudest level that will
occur during use, or set the output level of the in-
strument or audio device to the maximum level that
will be used.
4) Use the
and arrow buttons to adjust the gain
until the –10 dB glows green and the –20 dB LED
starts to flicker red during the loudest peaks in the
audio.
5) Once the audio gain has been set, the signal can
be sent through the sound system for overall level
Rio Rancho, NM
-20 LED -10 LED
Off Off
Green Off
Green Green
Red Green
Red Red
Gain
25
-20
0
Digital Hybrid Wireless Belt-Pack Transmitters
adjustments, monitor settings, etc.
6) If the audio output level of the receiver is too high
or low, use only the controls on the receiver to
make adjustments. Always leave the transmitter
gain adjustment set according to these instruc-
tions, and do not change it to adjust the audio
output level of the receiver.
Selecting Frequency
The setup screen for frequency selection offers several
ways to browse the available frequencies.
Freq.
Gain
Freq
Rolloff
Compat
494.500
Each field will step through the available frequencies in a
different increment. The increments are also different in
the 25 kHz mode from the 100 kHz mode.
Freq.
b 19
51
494.500
These two fields step in 25 kHz
increments when the step size is 25
kHz and 100 kHz increments when
Freq.
the step size is 100 kHz.
b 19
51
494.500
These two fields
Freq.
always step in the
same increments
b 19
1 block steps
51
494.500
1 MHz steps
A fraction will appear next to the hex code in the setup
screen and in the main window when the frequency ends
in .025, .050 or .075 MHz.
Freq.
b 19
Fraction appears
next to hex code
51 1
in 25 kHz mode
4
494.525
All Lectrosonics Digital Hybrid Wireless
a scanning function to quickly and easily find prospec-
tive frequencies with little or no RF interference. In other
cases, a frequency may be specified by officials at a
large event such as the Olympics or a major league ball
Press MENU/
b 19
SEL to select
one of four
51
fields to make
adjustments
Freq.
b 19
51
494.500
b 470
1
51
4
474.525
-40
-20 0
receivers provide
®
