3080/3080 Ti Version
Thermal Pad F 2 mm
F2
3080/3080 Ti Version
F2
G1.5
Thermal Pad G 1.5 mm
G1.5
Thermal Pad F 2 mm
F2
F2
F2 F2
F2
F2
STEP 3
STEP 3

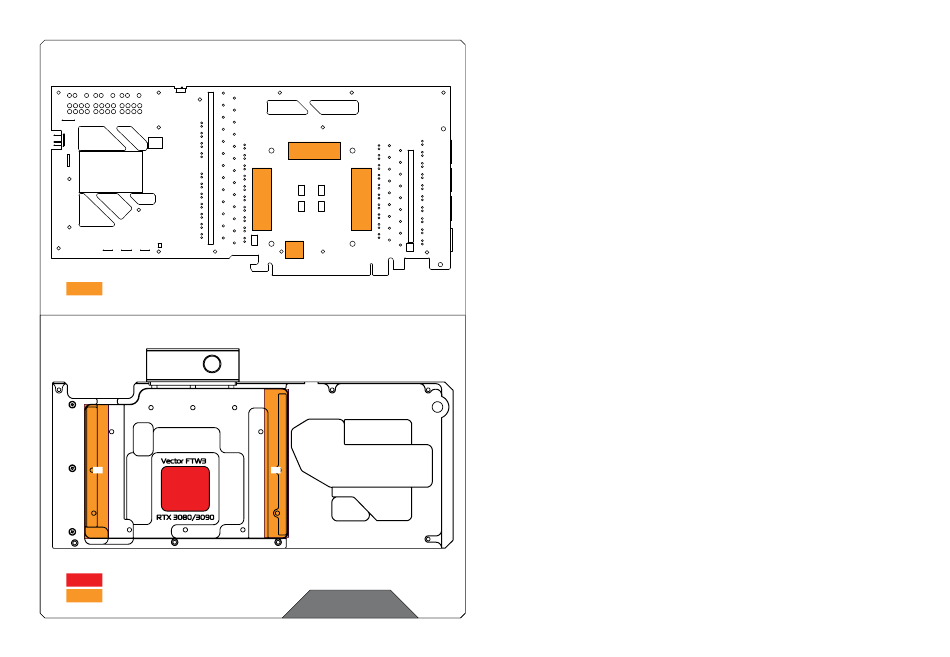

Once cut to size, thermal pads should be placed on the backplate/
PCB, as illustrated below.
First, place the thermal pads on to the PCB as illustatrated.
After placing the thermal pads on to the PCB, a few more needs to
be placed on to the Backplate, as illustrated.
