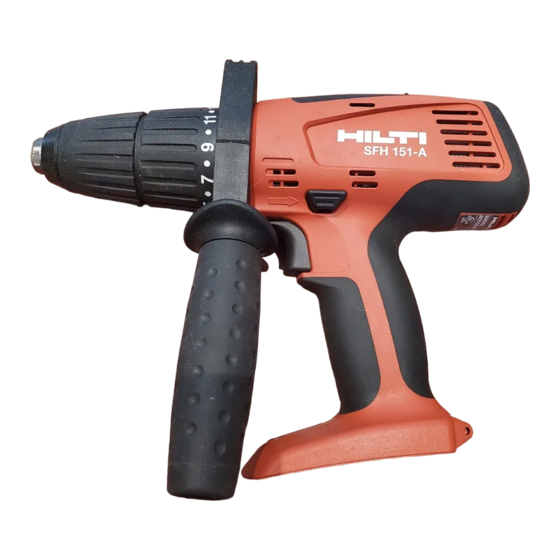

Hilti SF 151-A Operating Instructions Manual

Cordless drill/driver or cordless hammer drill/driver
Hide thumbs Also See for SF 151-A:
Table of Contents

Advertisement

Quick Links

Download this manual
00_Cover_SF151_A_P1.qxd
15.9.2005
08:35
Seite 3
SF 151-A /
SFH 151-A
Bedienungsanleitung
Operating instructions
Mode d'emploi
Manual de instrucciones
Istruzioni d'uso
Gebruiksaanwijzing
Brugsanvisning
Bruksanvisning
Bruksanvisning
Käyttöohje
Manual de instruções
Οδηγιες χρησεως
Kasutusjuhend
Lietoßanas pamåcîba
Instrukcija
Инструкция по зксплуатации
de
en
fr
es
it
nl
da
sv
no
fi
pt
el
et
lv
lt
ru

Advertisement

Table of Contents
loading

Related Manuals for Hilti SF 151-A

Summary of Contents for Hilti SF 151-A

  • Page 1 00_Cover_SF151_A_P1.qxd 15.9.2005 08:35 Seite 3 SF 151-A / SFH 151-A Bedienungsanleitung Operating instructions Mode d’emploi Manual de instrucciones Istruzioni d’uso Gebruiksaanwijzing Brugsanvisning Bruksanvisning Bruksanvisning Käyttöohje Manual de instruções Οδηγιες χρησεως Kasutusjuhend Lietoßanas pamåcîba Instrukcija Инструкция по зксплуатации...
  • Page 2 00_Cover_SF151_A_P1.qxd 15.9.2005 08:35 Seite 4 +≠...
  • Page 3 00_Cover_SF151_A_P1.qxd 15.9.2005 08:35 Seite 6 STOP...

  • Page 4: Table Of Contents

    SF 151-A / SFH 151-A cordless drill/driver or cordless hammer drill/driver Operating controls and parts 1 It is essential that the operating instructions Quick-release chuck are read before the tool is operated for the Torque and operating mode setting ring first time.

  • Page 5: Description

    2. Description 2.1 Use of the product as directed To avoid the risk of injury, use only genuine Hilti accessories and insert tools. The SF 151-A is a hand-held, cordless drill/driver for Observe the information printed in the operating in-...

  • Page 6: Insert Tools, Accessories

    2 SFB 150 or SFB 155 battery 2.3 Switch 1 Charger Speed-control switch 1 Operating instructions Function selector switch 1 Hilti toolbox Forward / reverse switch 2.7 The items supplied include (cardboard box 2.4 Grip versions): Pivotable side handle with depth gauge...

  • Page 7: Safety Rules

    Tool SF 151-A SFH 151-A Speed in 3rd gear 0 to 2,000 r.p.m. Torque (driving screw in soft material) set to Max. 33 Nm Max. 33 Nm drilling symbol Torque (driving screw in hard material) set Max. 70 Nm Max. 70 Nm...
  • Page 8 b) Do not operate power tools in explosive atmo- attached to a rotating part of the power tool may spheres, such as in the presence of flammable result in personal injury. liquids, gases or dust. Power tools create sparks e) Do not overreach. Keep proper footing and bal- which may ignite dust or fumes.
  • Page 9 the power tool for operations different from those f) Avoid touching rotating parts. Switch the tool on intended could result in a hazardous situation. only after bringing it into position at the work- piece. Touching rotating parts, especially rotating 5.1.5 Battery tool use and care drill bits, discs or blades, etc.

  • Page 10: Before Use

    (forward/reverse switch in the middle position). Use 6.2 Charging the battery only the Hilti batteries intended for use with this tool (SFB 150 or SFB 155). 1. Push the battery into the tool from below until it is heard to engage with a click.
  • Page 11 2. Turn the torque and operating mode setting ring 7.2.2 Speed selection using the 3-speed switch (SFH 151-A) 5 to the drilling symbol. NOTE 7.4.4 Removing the drill bit The mechanical 3-speed gear switch can be used to CAUTION select the speed range required. Speeds with fully- Wear protective gloves when changing drill bits as charged battery: 1st gear: 0-370 r.p.m., 2nd gear: the drill bit will get hot during use.

  • Page 12: Care And Maintenance

    Do not operate the tool if parts are dam- Before beginning cleaning, remove the battery from aged or when the controls do not function faultlessly. If necessary, your tool should be repaired at a Hilti the tool in order to avoid accidental starting. repair center.

  • Page 13: Troubleshooting

    10. Disposal Most of the materials from which Hilti tools or machines are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old tools for recycling.

  • Page 14: Warranty

    Send the product and/or related parts immediately i.e. only genuine Hilti consumables, accessories and upon discovery of a defect to the local Hilti marketing spare parts are used with the product. organization for repair or replacement.
  • Page 16 Tel.: +423 / 234 21 11 Fax: +423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan W3088 0905 00-Pos. 1 Printed in Liechtenstein © 2005 Right of technical and programme changes reserved S. E. & O.
