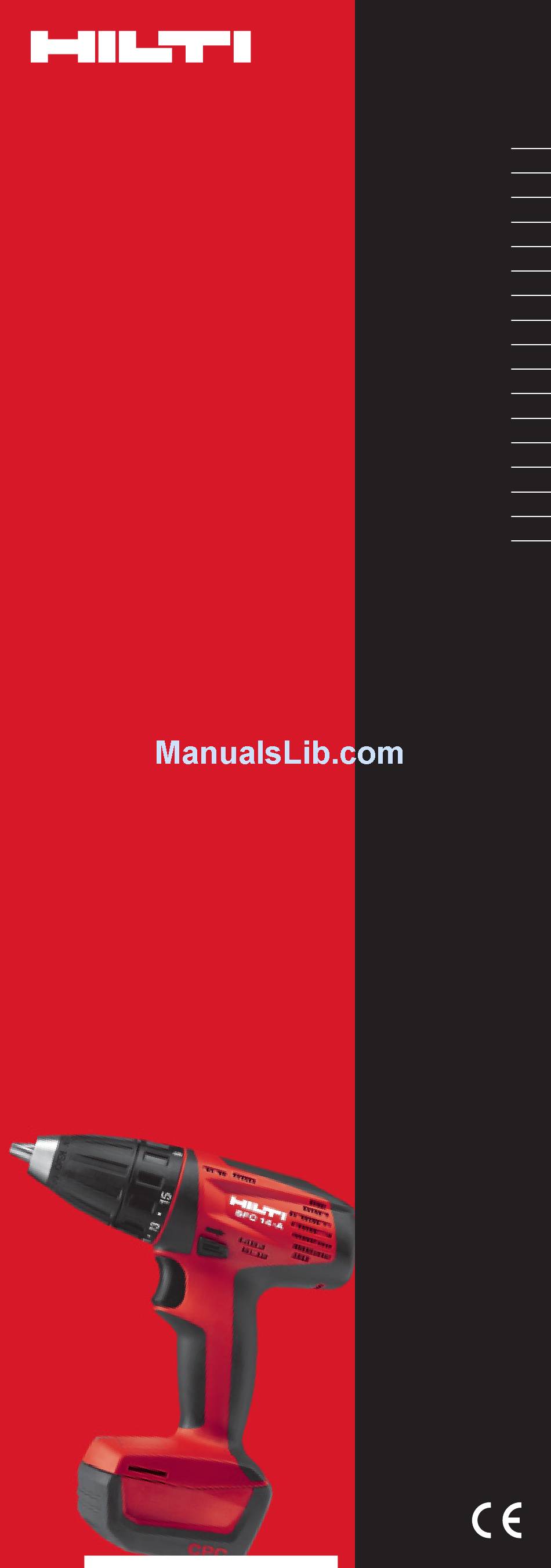

  • Page 1 SFC22-A/ SFC 14-A Bedienungsanleitung Operating instructions Mode d’emploi Istruzioni d’uso Manual de instrucciones Manual de instruções Gebruiksaanwijzing Οδηγιες χρησεως Használati utasítás Instrukcja obsługi Инструкция по зксплуатации Návod k obsluze Návod na obsluhu Upute za uporabu Navodila za uporabo Ръководство за обслужване...
  • Page 2 SFC 14-A SFC 22-A Printed: 05.09.2013 | Doc-Nr: PUB / 5071565 / 000 / 01...
  • Page 3 Printed: 05.09.2013 | Doc-Nr: PUB / 5071565 / 000 / 01...
  • Page 4 Printed: 05.09.2013 | Doc-Nr: PUB / 5071565 / 000 / 01...

  • Page 5: Table Of Contents

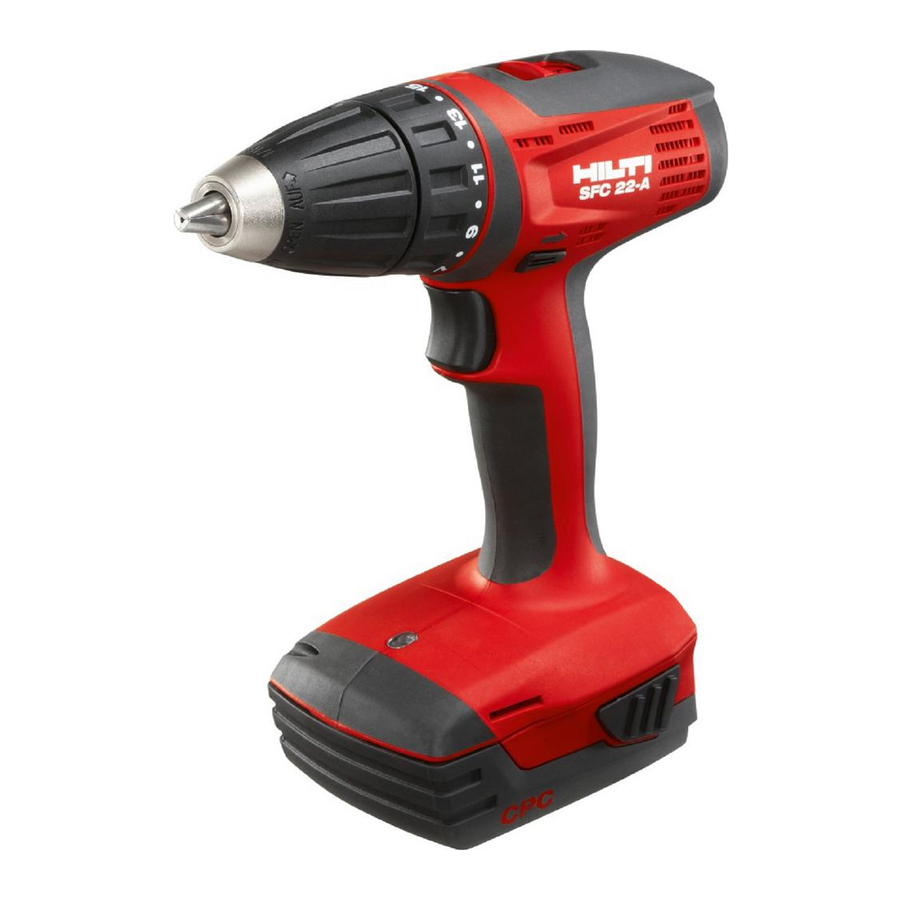

    ORIGINAL OPERATING INSTRUCTIONS SFC 22-A/SFC 14­A cordless drill / driver It is essential that the operating instructions are read before the power tool is operated for the first time. Always keep these operating instructions together with the power tool. Ensure that the operating instructions are with the power tool when it is given to other persons.

  • Page 6: Description

    Modification of the power tool or tampering with its parts is not permissible. To avoid the risk of injury, use only genuine Hilti accessories and insert tools. Observe the information printed in the operating instructions concerning operation, care and maintenance.

  • Page 7: Insert Tools, Accessories

    Grease lubrication 2.6 The items supplied include (toolbox versions): 1 Power tool 1 Operating instructions 1 Hilti toolbox 2.7 The items supplied include (cardboard box versions): 1 Power tool 1 Operating instructions 2.8 Additional items required for operating the tool B 22/1.6 Li­Ion, B 22/2.6 Li­Ion, B 22⁄3.3 Li­Ion, B 14/1.6 Li­Ion...

  • Page 8: Technical Data

    Designation Short designation Battery B 14/3.3 Li­Ion Belt hook (optional) Designation Description Keyless chuck clamping range ∅ 1.5…13 mm Drilling diameter range in wood ∅ 1.5…20 mm (soft) Drilling diameter range in wood ∅ 1.5…12 mm (hard) Drilling diameter range in metal ∅ 1.5…10 mm Wood screws (max.

  • Page 9: Safety Instructions

    Typical A-weighted emission 69 dB (A) sound pressure level for the SFC 14-A. Uncertainty for the given sound 3 dB (A) level Triaxial vibration values (vibra- measured in accordance with tion vector sum) EN 60745­2­2 For the SFC 22­A: Screwdriving 1 m/s²...
  • Page 10 c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. 5.1.2 Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.
  • Page 11 Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
  • Page 12 Place the tool in a location where it can be kept under observation, well away from flammable materials, and allow it to cool down. Contact Hilti Service after the battery has been allowed to cool. 5.3.4 Electrical safety Before beginning work, check the working area (e.g.

  • Page 13: Before Use

    6.2 Charging the battery DANGER Use only the Hilti batteries and Hilti chargers listed under “Accessories”. 6.2.1 Charging a new battery for the first time Charge the battery fully before using it for the first time.

  • Page 14: Operation

    6.4 Removing the battery 1. Press one or both release buttons. 2. Pull the battery out of the power tool toward the rear. 6.5 Transport and storage of battery packs Pull the battery pack out of the locked position (working position) and move it into the first click-stop position (transport position).

  • Page 15: Care And Maintenance

    2. Check that the connection end of the drill bit is clean. Clean the connection end if necessary. 3. Insert the drill bit in the keyless chuck and then turn the chuck firmly by hand until several clicks are heard. 4.

  • Page 16: Troubleshooting

    NOTE If use of the power tool continues, battery discharge is stopped automatically (indicated by LED 1 blinking) before the battery cells suffer damage. Charge the battery with the Hilti charger approved for use with Li-ion batteries. NOTE – A conditioning charge (as is required with NiCd or NiMH batteries) is not necessary.

  • Page 17: Disposal

    Dispose of the batteries in accordance with national regulations or return them to Hilti. Most of the materials from which Hilti power tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back your old power tools or appliances for recycling.

  • Page 18: Manufacturer's Warranty - Tools

    For repair or replacement, send the tool or related parts immedi- ately upon discovery of the defect to the address of the local Hilti marketing organization provided. This constitutes Hilti’s entire obligation with regard to warranty and supersedes all prior or contemporaneous comments and oral or written agreements concerning warranties.
  • Page 19 LI-9494 Schaan Tel.: +423 / 234 21 11 Fax: +423 / 234 29 65 www.hilti.com Hilti = registered trademark of Hilti Corp., Schaan W 3911 I 0713 I 00-Pos. 1 I 1 Printed in China © 2013 440881 / A3 Right of technical and programme changes reserved S.
