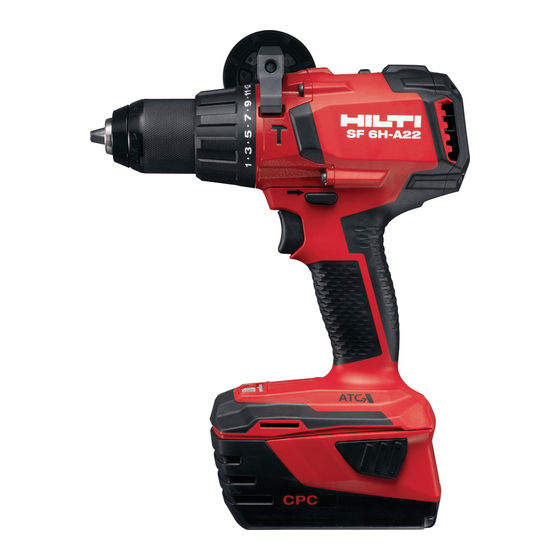

SF 6H-A22
English
Printed: 01.02.2017 | Doc-Nr: PUB / 5329076 / 000 / 00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF 6H-A22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hilti SF 6H-A22

  • Page 1 SF 6H-A22 English Printed: 01.02.2017 | Doc-Nr: PUB / 5329076 / 000 / 00...
  • Page 2 Printed: 01.02.2017 | Doc-Nr: PUB / 5329076 / 000 / 00...
  • Page 3: Table Of Contents

    Contents Information about the documentation ..... . 2 1.1 About this documentation ....... . 2 1.2 Explanation of symbols used .
  • Page 4: Information About The Documentation

    Transport and storage ....... . . 18 7.1 Transport and storage ........18 Troubleshooting .
  • Page 5: Product-Dependent Symbols

    Revolutions per minute 1.4 Product information Hilti products are designed for professional use and may be operated, ser- viced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product described and its ancillary equipment may present hazards when used incorrectly by untrained personnel or when used not as directed.
  • Page 6 Work area safety ▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents. ▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
  • Page 7 ▶ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. ▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
  • Page 8: Additional Safety Precautions For Screwdrivers

    ▶ When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
  • Page 9: Careful Handling And Use Of Batteries

    Contact Hilti Service after the battery has cooled down. English Printed: 01.02.2017 | Doc-Nr: PUB / 5329076 / 000 / 00...
  • Page 10 English Printed: 01.02.2017 | Doc-Nr: PUB / 5329076 / 000 / 00...
  • Page 11 English Printed: 01.02.2017 | Doc-Nr: PUB / 5329076 / 000 / 00...
  • Page 12: Description

    3 Description 3.1 Overview of the product English Printed: 01.02.2017 | Doc-Nr: PUB / 5329076 / 000 / 00...
  • Page 13: Intended Use

    ▶ Use this product only with Hilti Li­ion batteries of the B18 / B22 series. ▶ Use only Hilti battery chargers of the C4/36 series with these batteries.
  • Page 14: Indication Of Overloading And Overheating

    After releasing the control switch, the power tool may not restart immediately when the switch is pressed again (while the power tool is cooling down). 4 Technical data 4.1 Drill/driver SF 6H-A22 Rated voltage 21.6 V Weight 4.4 lb (2.0 kg)
  • Page 15: Operation

    Ø drilling in con- 5/32 in …1/2 in crete/masonry (hammer drilling) Ø drilling in con- 4 mm …12 mm crete/masonry (hammer drilling) 5 Operation 5.1 Inserting the battery CAUTION Risk of injury. The drill/driver may start inadvertently. ▶ Before fitting the battery, check that the drill/driver is switched off and that the switch safety lock is activated.
  • Page 16: Removing The Battery

    5.2 Removing the battery ▶ Remove the battery. 5.3 Fitting and adjusting the side handle ▶ Fit the side handle. 5.4 Fitting the belt hook (optional) WARNING Risk of injury. A falling power tool may present a risk of injury to yourself and others.
  • Page 17: Fitting Or Removing The Drill Bit

    ▶ Fit the mounting plate into the guides provided. 5.5 Fitting or removing the drill bit ▶ Fit the drill bit into the chuck or remove it from the chuck. 5.6 Fitting or removing the bit adapter / bit ▶ Insert the bit adapter in the chuck and then turn the chuck sleeve until tight.
  • Page 18: Drilling

    5.7 Drilling CAUTION Risk of injury. The accessory tool may suddenly stall, causing the power tool to rotate about its own axis. ▶ Use the power tool with the side handle fitted and always hold it securely with both hands. ▶...
  • Page 19: Screwdriving

    5.9 Screwdriving ▶ Set the torque and operating mode selector ring to the required torque. 5.10 Selecting the gear ▶ Select the gear. 5.11 Setting forward or reverse rotation ▶ Set the forward / reverse selector switch to forward or reverse rotation. English Printed: 01.02.2017 | Doc-Nr: PUB / 5329076 / 000 / 00...
  • Page 20: Care And Maintenance

    To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Center or online at: www.hilti.com 7 Transport and storage 7.1 Transport and storage...
  • Page 21 ▶ Check the tool and batteries for damage before use after long periods of storage. 8 Troubleshooting If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by yourself, please contact Hilti Service. Trouble or fault Possible cause Action to be taken...
  • Page 22 The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appli- ances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
  • Page 23 10 Manufacturer’s warranty ▶ Please contact your local Hilti representative if you have questions about the warranty conditions. English Printed: 01.02.2017 | Doc-Nr: PUB / 5329076 / 000 / 00...
  • Page 24 Printed: 01.02.2017 | Doc-Nr: PUB / 5329076 / 000 / 00...
  • Page 25 Printed: 01.02.2017 | Doc-Nr: PUB / 5329076 / 000 / 00...
  • Page 26 Hilti = registered trademark of Hilti Corp., Schaan 20170201 Printed: 01.02.2017 | Doc-Nr: PUB / 5329076 / 000 / 00...
