CC1021 Single-Chip Low-Power RF Transceiver for Narrowband Systems
1 Device Overview
1.1
Features
1
• True Single-Chip UHF RF Transceiver
• Frequency Range 402 MHz to 470 MHz and
804 MHz to 930 MHz
• High Sensitivity
– Up to –112 dBm for 38.4 kHz Receiver Channel
Filter Bandwidth
– Up to –106 dBm for 102.4 kHz Receiver
Channel Filter Bandwidth
• Programmable Output Power
• Low Current Consumption
– RX: 19.9 mA
• Low Supply Voltage
– From 2.3 V to 3.6 V
• Very Few External Components Required
• Small Size
– QFN 32 Package
1.2
Applications
•
Low-Power UHF Wireless Data Transmitters and
Receivers With Channel Spacings
of 50 kHz or Higher
•
433-, 868-, 915-, 930-MHz ISM/SRD Band
Systems
1.3
Description

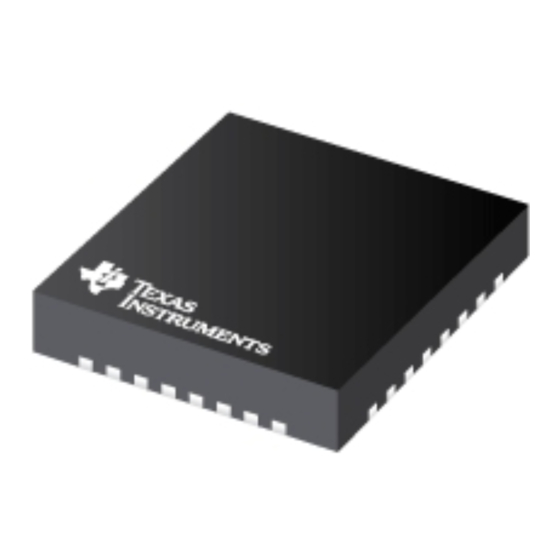

The CC1021 device is a true single-chip UHF transceiver designed for very low power and very low
voltage wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical)
and SRD (Short Range Device) frequency bands at 433 MHz, 868 MHz, and 915 MHz, but can easily be
programmed for multichannel operation at other frequencies in the 402- to 470-MHz and 804- to 930-MHz
range.
The CC1021 device is especially suited for narrowband systems with channel spacing of 50 kHz and
higher complying with EN 300 220 and CC CFR47 part 15.
The CC1021 device main operating parameters can be programmed through a serial bus, thus making the
CC1021 device a very flexible and easy to use transceiver.
In a typical system, the CC1021 device is used together with a microcontroller and a few external passive
components.
PART NUMBER
CC1021
(1) For more information, see
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
Order
Product
Technical
Folder
Now
Documents
Not Recommended for New Designs NRND
Table 1-1. Device Information
VQFNP (32)
Section
8, Mechanical Packaging and Orderable Information.
Tools &
Software
SWRS045F – JANUARY 2006 – REVISED NOVEMBER 2018
• Pb-Free Package
• Digital RSSI and Carrier Sense Indicator
• Data Rate Up to 153.6 kBaud
• OOK, FSK, and GFSK Data Modulation
• Integrated Bit Synchronizer
• Image Rejection Mixer
• Programmable Frequency
• Automatic Frequency Control (AFC)
• Suitable for Frequency Hopping Systems
• Suited for Systems Targeting Compliance With
EN 300 220 and FCC CFR47 Part 15
• Easy-to-Use Software for Generating the CC1021
Configuration Data
• Fully Compatible With CC1020 for Receiver
Channel Filter Bandwidths of 38.4 kHz and Higher
•
AMR – Automatic Meter Reading
•
Wireless Alarm and Security Systems
•
Home Automation
•
Low-Power Telemetry
•
Automotive (RKE/TPMS)
(1)
PACKAGE
Support &
Community
BODY SIZE (NOM)
7.00 mm × 7.00 mm
CC1021
