Outback Trooper THG2302A Assembly And Operating Instructions Manual page 2

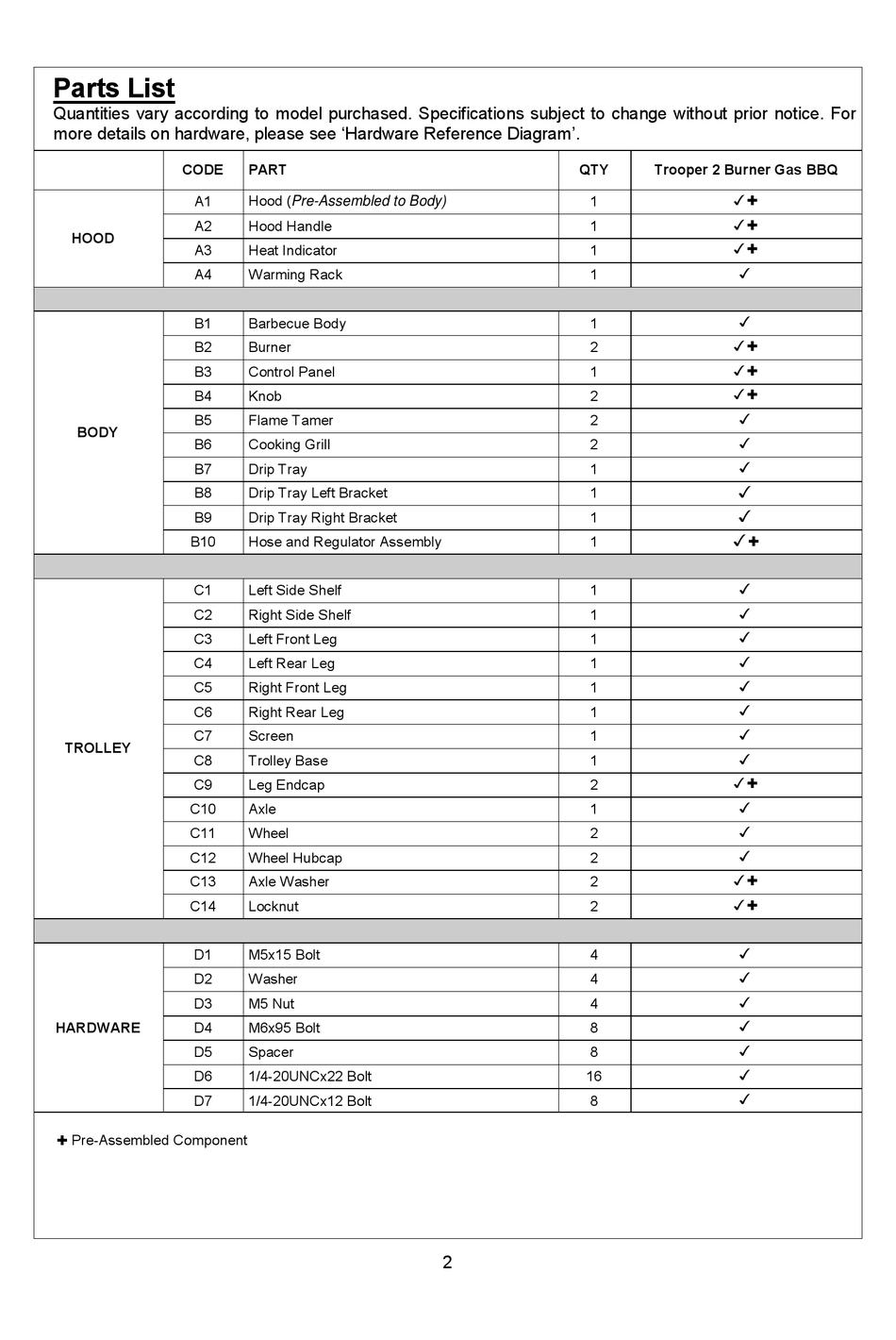

Parts List
Quantities vary according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see 'Hardware Reference Diagram'.
CODE
A1
A2
HOOD
A3
A4
B1
B2
B3
B4
B5
BODY
B6
B7
B8
B9
B10
C1
C2
C3
C4
C5
C6
C7
TROLLEY
C8
C9
C10
C11
C12
C13
C14
D1
D2
D3
HARDWARE D4
D5
D6
D7
 Pre-Assembled Component

PART
Hood (Pre-Assembled to Body)
Hood Handle
Heat Indicator
Warming Rack
Barbecue Body
Burner
Control Panel
Knob
Flame Tamer
Cooking Grill
Drip Tray
Drip Tray Left Bracket
Drip Tray Right Bracket
Hose and Regulator Assembly
Left Side Shelf
Right Side Shelf
Left Front Leg
Left Rear Leg
Right Front Leg
Right Rear Leg
Screen
Trolley Base
Leg Endcap
Axle
Wheel
Wheel Hubcap
Axle Washer
Locknut
M5x15 Bolt
Washer
M5 Nut
M6x95 Bolt
Spacer
1/4-20UNCx22 Bolt
1/4-20UNCx12 Bolt
QTY
1
1
1
1
1
2
1
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
2
1
2
2
2
2

4
4
4
8
8
16
8
2
Trooper 2 Burner Gas BBQ




































