CSAFE Port
The CSAFE standard defi nes a communication protocol and low-voltage DC power source specifi c to the
Fitness Equipment Industry. These RJ-45 phone jacks are provided for use ONLY within the CSAFE protocol.
For more information on CSAFE standard, visit www.fi tlinxx.com/csafe.
NOTE: The CSAFE port inside the console, accessible through the back cover, is the only port that carries
BOTH the CSAFE communication lines and the 8.0v DC CSAFE power supply. If attaching a CSAFE
compliant device that requires power, this connection must be used. Power is present only when the
unit is in use or when a power supply is attached.

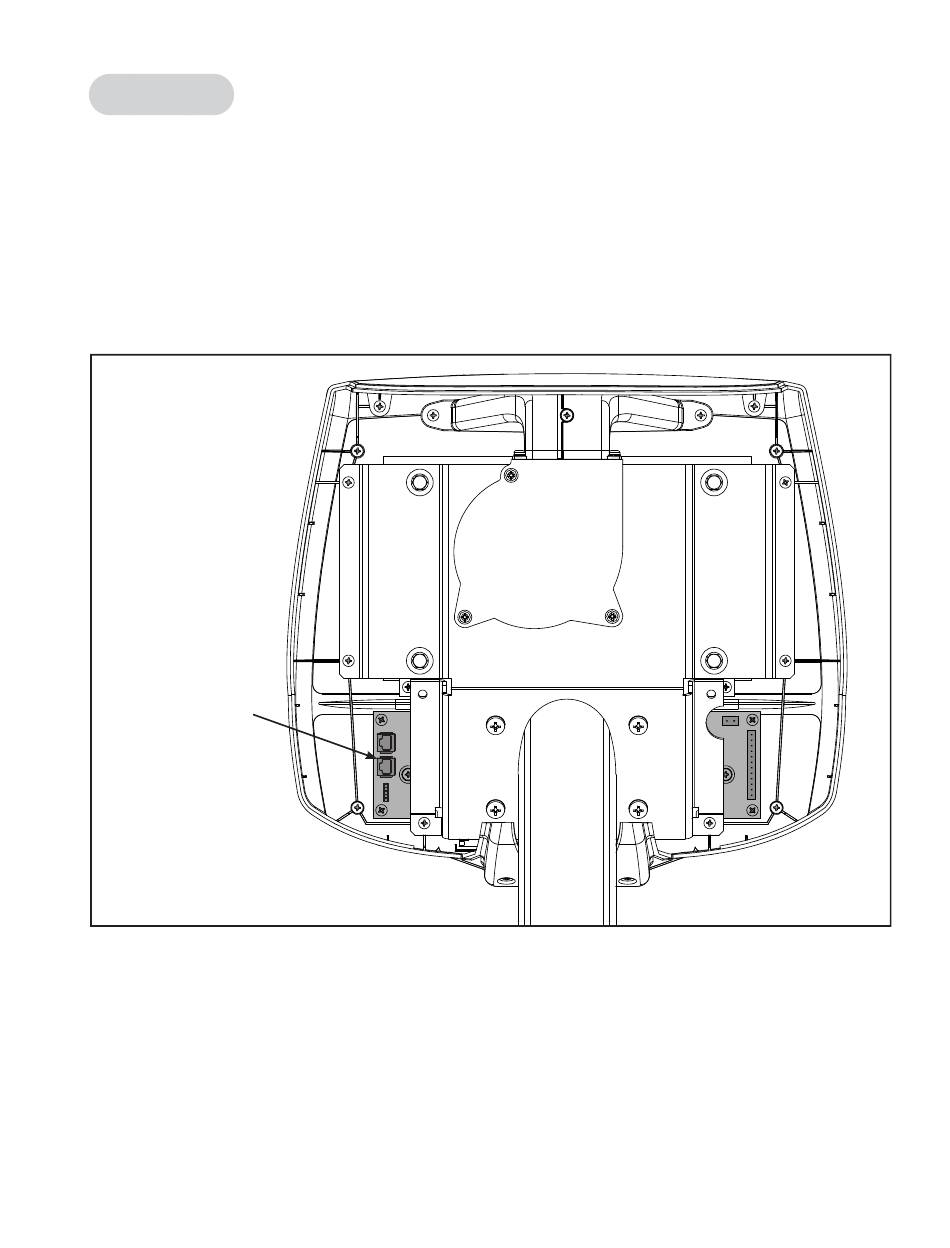

Back of Console
CSAFE Port (J9)
Communication
8V DC/100 MA
Power Supply
Cybex 750A/750AT Arc Trainer
J7
J9
J5
®
Service Manual
J10
J8
Safety
Page 1-7
