Location and Function of Parts

Camera Head

Before attaching/detaching peripheral equipment to/
from the camera head, be sure to turn off the camera.
Otherwise, the camera may not function properly.

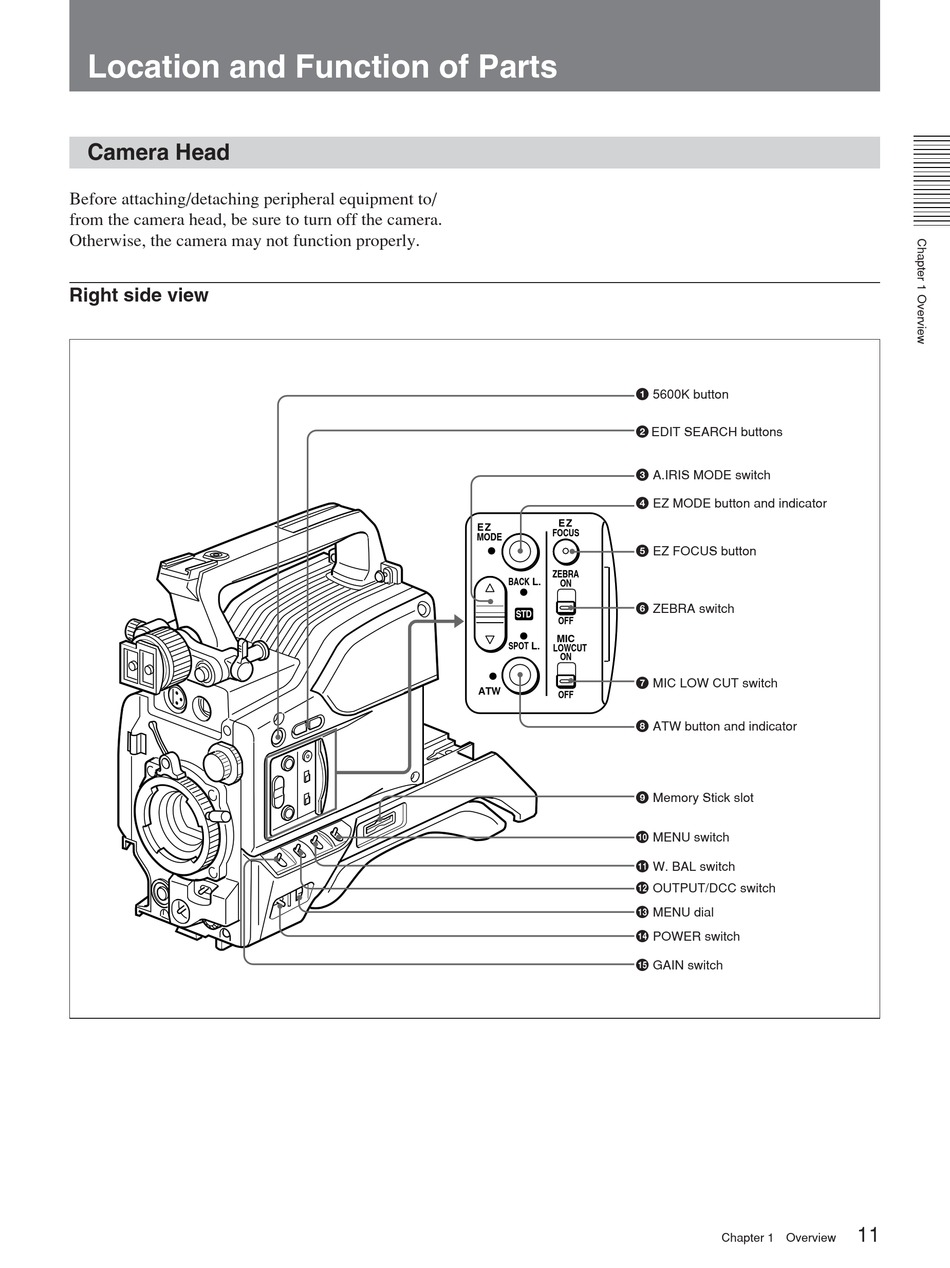

Right side view
1 5600K button
2 EDIT SEARCH buttons
3 A.IRIS MODE switch
4 EZ MODE button and indicator
E Z
E Z
FOCUS
MODE
5 EZ FOCUS button
ZEBRA
BACK L.
ON
6 ZEBRA switch
STD
OFF
MIC
SPOT L.
LOWCUT
ON
7 MIC LOW CUT switch
ATW
OFF
8 ATW button and indicator
9 Memory Stick slot
0 MENU switch
qa W. BAL switch
qs OUTPUT/DCC switch
qd MENU dial
qf POWER switch
qg GAIN switch
11
Chapter 1 Overview
