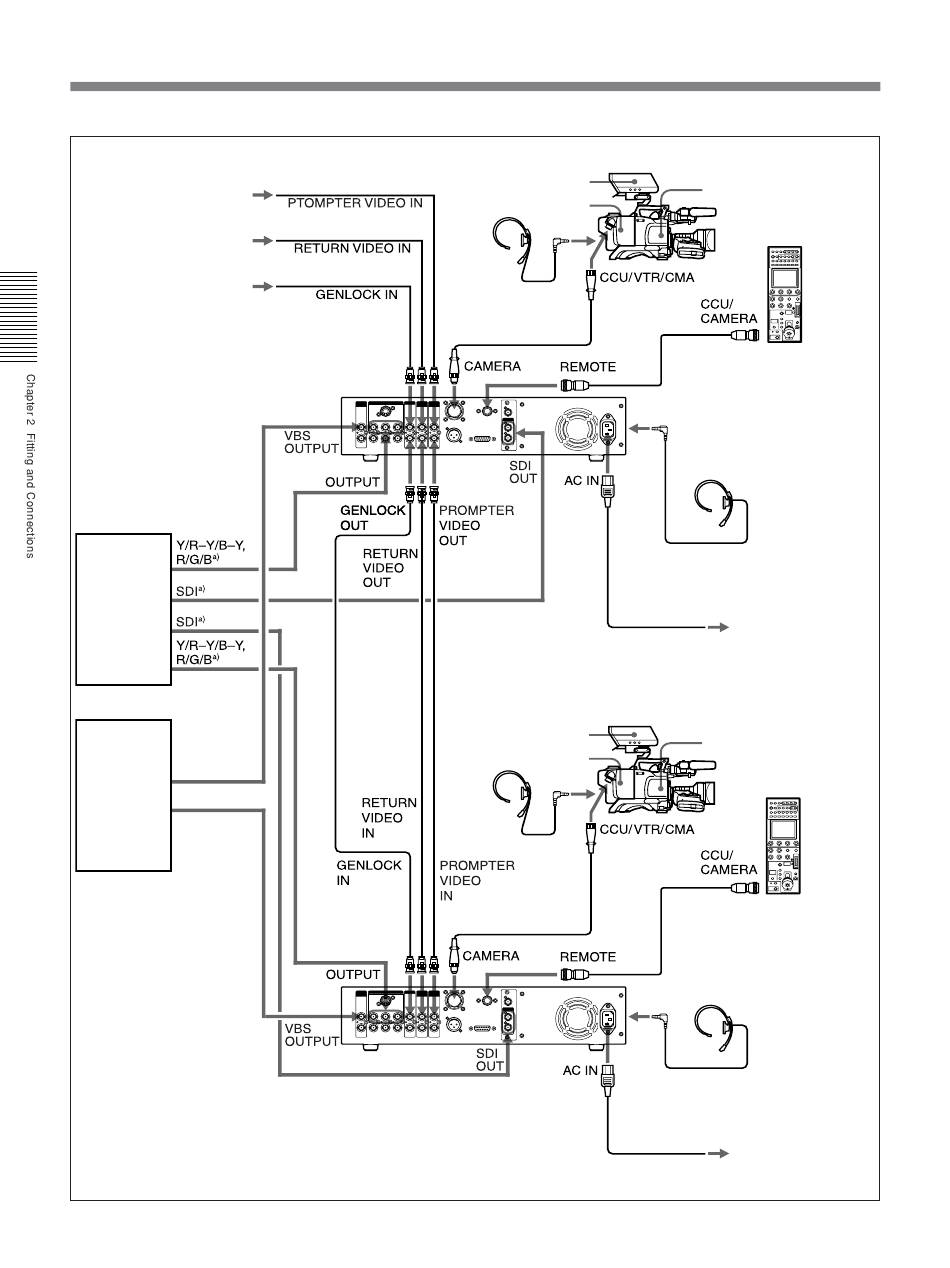

Connections
Prompter video signal
Return video signal
Reference sync signal
CCU-D50/D50P Camera Control Unit
VTR,
chroma keyer,
etc.
Switcher,
video
monitor,
etc.
a) Switching of the SDI, Y/R-Y/B-Y, R/G/B signals can be done
with the System Setting switch located on the front panel of the
CCU and by changing wiring of the SDI unit.
36
Chapter 2 Fitting and Connections
DXF-51
CA-D50/D50P
Headset
DXF-51
CA-D50/D50P
Headset
DXC-D55/D55P/
D55WS/D55WSP
RCP-D50/D51
Remote Control
Panel
INTERCOM
(on the front)
Headset
to AC power supply
DXC-D55/D55P/
D55WS/D55WSP
RCP-D50/D51
Remote Control
Panel
CCU-D50/D50P Camera Control Unit
Headset
INTERCOM
(on the front)
to AC power supply
