215-152E Rev. S; ECN 17-05-039
© 2017 Bradley
Page 1 of 4
7/18/2017
Installation
E19-130

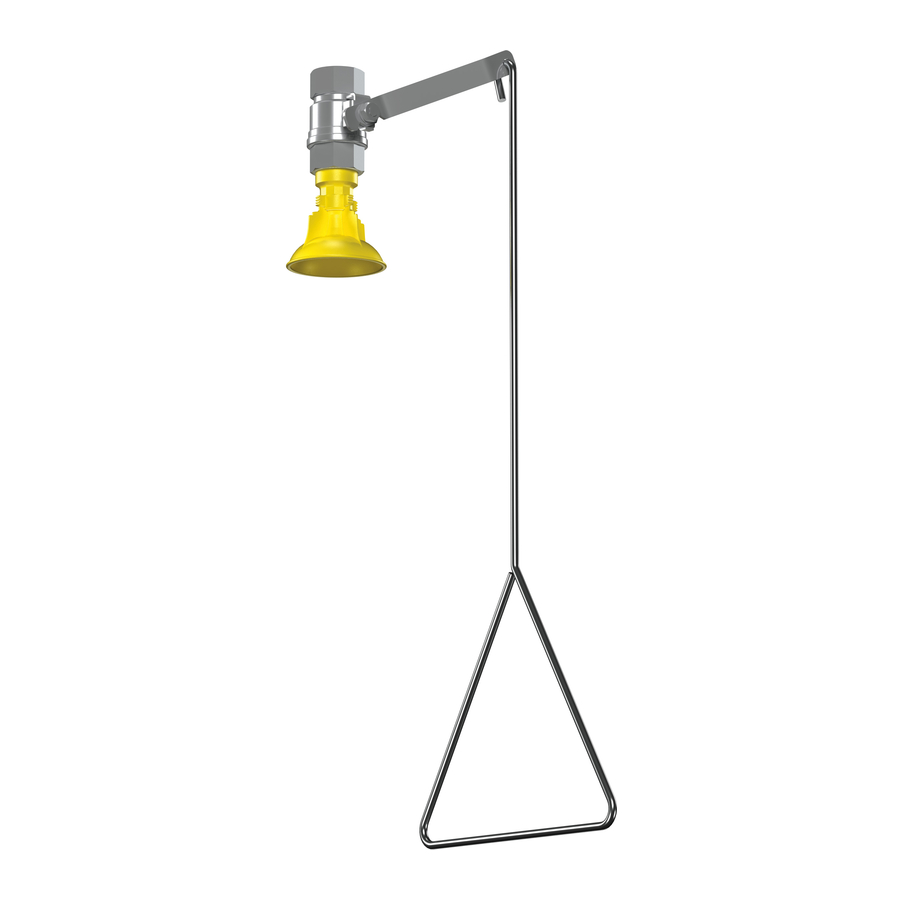

Drench Shower Vertical Supply
Table of Contents
Pre-Installation Information ............................................................ 2
Supplies Required: ..........................................................................3
Assemble Components ....................................................................3
Connect Water Supply ......................................................................3
Assembly Of Components And Parts List ........................................4
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
P.O. Box 309
bradleycorp.com
Advertisement
Table of Contents
Related Manuals for Bradley E19-130
Summary of Contents for Bradley E19-130
- Page 1 Connect water supply ..............3 Assembly of Components and Parts List ........4 P.O. Box 309 Menomonee Falls, WI 53052 USA 215-152E Rev. S; ECN 17-05-039 800 BRADLEY (800 272 3539) © 2017 Bradley +1 262 251 6000 Page 1 of 4 7/18/2017...
- Page 2 If any parts are missing, do not begin installation until you obtain the missing parts. The ANSI/ISEA Z358.1 standard requires an uninterrupted supply of flushing fluid. Bradley plumbed emergency fixtures require a minimum of 30 PSI (0.21MPa) flowing pressure.
- Page 3 4. The bottom edge of the showerhead should be 2134mm (7'-0") from the floor. Connect water supply NOTICE! Do not rely on Bradley’s Drench Shower to support supply piping. 1. Connect water supply piping to 1" BSP inlet on unit (piping supplied by installer). Provide adequate...
- Page 4 Pull Rod - 24" Long 128-202 Handle S30-060B Stay-Open Ball Valve 124-048 Washer Assembly 1" BSP 204-421 Emergency Tag S27-278B Ball Valve with Jam Nut 114-050E Safety Sign 3.11 110-214 Jam Nut (only) Bradley • 215-152E Rev. S; ECN 17-05-039 7/18/2017...
