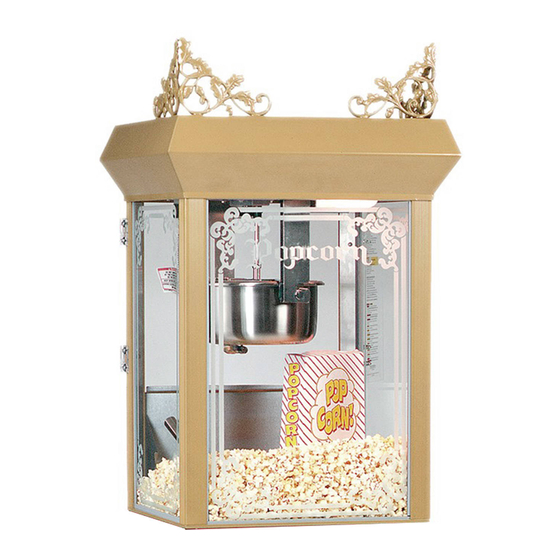

- Page 1 Instruction Manual Antique Deluxe 60 Special Model No. 2660GT, 2660GTSV, 2660GV Model 2660GT Model 2660GTSV Model 2660GV 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2016 Gold Medal Products Co. Part No. 49397...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 3 Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions. (Gold Medal Products Co. does not assume any liability for injury due to careless handling and/or reckless operation of this equipment.) gmpopcorn.com...
-
Page 4: Installation Instructions
Antique Deluxe 60 Special Poppers Model No. 2660GT, 2660GTSV, 2660GV INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). - Page 5 Antique Deluxe 60 Special Poppers Model No. 2660GT, 2660GTSV, 2660GV Setup This unit has been tested at the factory. 1. Remove all packaging and tape prior to operation. 2. Place the unit on a sturdy, level base. 3. The popper unit has 4 glide feet preinstalled at the factory (see image below). Install a Black Crutch Tip on each of the 4 glide feet.
-
Page 6: Electrical Requirements
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install the unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614 gmpopcorn.com... -
Page 7: Controls And Their Functions
Antique Deluxe 60 Special Poppers Model No. 2660GT, 2660GTSV, 2660GV OPERATING INSTRUCTIONS Controls and Their Functions KETTLE HEAT SWITCH Two position, ON/OFF lighted rocker switch - supplies power to the heating elements in the popping kettle. The green switch light ON indicates there is power to the kettle heating element. -
Page 8: Amount Of Popcorn And Oil
Antique Deluxe 60 Special Poppers Model No. 2660GT, 2660GTSV, 2660GV Popping Corn This section describes instructions for popping Standard (salted popcorn). Amount of Popcorn and Oil The popper is equipped with a corn, salt, and oil measure. We recommend flavored and colored coconut oil. -
Page 9: Care And Cleaning
2. Every night, mix Gold Medal’s Heat’n Kleen solution (Item No. 2095), 2 tablespoons per gallon of water. It is not necessary to use the entire gallon at once; only use enough to fill the kettle 1/2 inch deep. - Page 10 DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine. 5. Clean the glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. Ammonia cleaners will damage the plastic doors. Use only non-ammonia cleaners, such as Gold Medal Watchdog Glass Cleaner (Item No.
-
Page 11: Troubleshooting
Antique Deluxe 60 Special Poppers Model No. 2660GT, 2660GTSV, 2660GV Troubleshooting Issue Possible Cause Solution Power to the Unit A. Power to the Unit A. Make sure the unit’s power cord is plugged in. Kettle Does Not Heat A. Power to the Kettle A. - Page 12 Antique Deluxe 60 Special Poppers Model No. 2660GT, 2660GTSV, 2660GV Agitator Set Collar Adjustment The following instructions describe how to properly adjust set collars on an agitator assembly with a floating stir rod. Steps to Adjust Set Collars Step 1: Make sure machine is OFF and unplugged, then allow unit to cool completely Agitator’s Spur Gear before attempting to adjust the agitator height.
-
Page 13: Maintenance Instructions
Antique Deluxe 60 Special Poppers Model No. 2660GT, 2660GTSV, 2660GV MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. -
Page 14: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:... -
Page 15: Replacing Broken Glass
Model No. 2660GT, 2660GTSV, 2660GV Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop, always purchase tempered glass. GLASS DIMENSIONS (Height x Width x Thickness) Front Glass: 22 1/2”... - Page 16 Antique Deluxe 60 Special Poppers Model No. 2660GT, 2660GTSV, 2660GV Kettle Assembly – 56000 560 00 S ho wn Complete Agitator Assembly (Includes Lids) **Apply Loctite 246 to bottom of set screws before installing. Kettle Model 56000 shown *See Parts List note.
- Page 17 Antique Deluxe 60 Special Poppers Model No. 2660GT, 2660GTSV, 2660GV Kettle Assembly – 56000 – Parts List Part Number Item Part Description 56000 8-32 TALL ACORN NUT 47702 8-32 X 1/2 PHIL PAN M/S 47141 KETTLE SHELL 49431 KETTLE LEAD ASSY 49328 DUMP HANDLE RH 49314...
- Page 18 Antique Deluxe 60 Special Poppers Model No. 2660GT, 2660GTSV, 2660GV Cabinet Exterior – Front View 2, 3 See Kettle Assembly Section For Glass Panels, see Replacing Glass section. 7, 8 5, 6 Model 2660GT Shown Part Number Item Parts Description 2660GT 2660GTSV 2660GV...
- Page 19 For Labels, see Safety Label Section. * CAUTION: If supply cord is damaged, it must 7, 8 be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. Model 2660GT shown Part Number...
- Page 20 Antique Deluxe 60 Special Poppers Model No. 2660GT, 2660GTSV, 2660GV Door Hardware Kit 61380 – Individual Component Breakdown Complete Door Hardware Kit (P/N 61380) (contains all parts shown above) Part Number Item Part Description 61380 KNOB LID LIFT 47120 TEE BOLT 75267 8-32 X 5/16 SLOTTED HEX 49594...
- Page 21 Antique Deluxe 60 Special Poppers Model No. 2660GT, 2660GTSV, 2660GV Cabinet Interior – Hanger Assembly For Labels, see Safety Label Section. 11, 12 9*, 10 Data *See Parts Plate List note. See Kettle Assembly section for Kettle parts breakdown. Model 2660GT shown Part Number Item Part Description...
- Page 22 Antique Deluxe 60 Special Poppers Model No. 2660GT, 2660GTSV, 2660GV Cabinet Interior – Bottom View 1, 2 3, 4 5, 4 1, 2 8, 9 See Safety Label Section. Model 2660GT shown Part Number Item Part Description All Models GLASS RETAIN STRIP,REAR 49215 8-32 X 1 UNSL NON-IND HWH (holds retainer) 39008...
- Page 23 Antique Deluxe 60 Special Poppers Model No. 2660GT, 2660GTSV, 2660GV Dome Interior – Electrical Components 266 0G T See Safety Label Section. General image shown for PowerOff Control parts reference only. (Available on Model 2660GT only.) Part Number Item Parts Description 2660GT 2660GTSV 2660GV...
- Page 24 Antique Deluxe 60 Special Poppers Model No. 2660GT, 2660GTSV, 2660GV Safety Labels Label used on units with the Unit Labels PowerOff Control feature. Kettle Lead In Label Power Cord Labels Part Number Item Part Description 2660GTSV, 2660GT 2660GV WARNING, MAX LAMP 75W 41452 41452 LABEL UNPLUG TO CLEAN...
- Page 25 Antique Deluxe 60 Special Poppers Model No. 2660GT, 2660GTSV, 2660GV Accessories Part Number Item Part Description All Models STAMPED ALUMINUM SCOOP 2071 6.5 CC MEASURE 47678 6 OZ MEASURE 49049 gmpopcorn.com Page 25...
-
Page 26: Wiring Diagram
Antique Deluxe 60 Special Poppers Model No. 2660GT, 2660GTSV, 2660GV Wiring Diagram Model No. 2660GTSV, 2660GV gmpopcorn.com Page 26... - Page 27 Antique Deluxe 60 Special Poppers Model No. 2660GT, 2660GTSV, 2660GV Model No. 2660GT gmpopcorn.com Page 27...
- Page 28 © 2016 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
