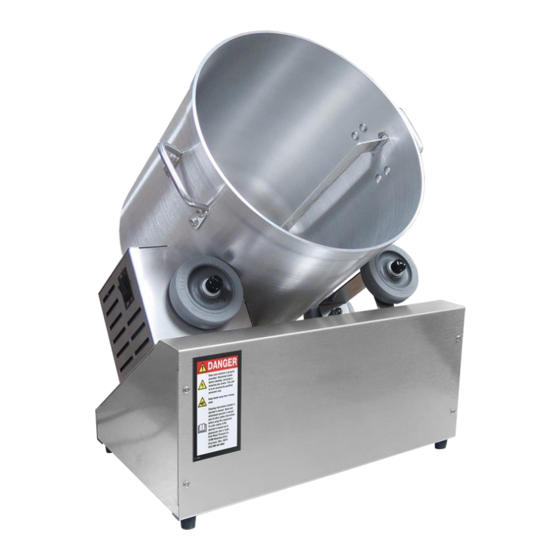

- Page 1 Instruction Manual Cheddar Easy Deluxe Tumbler Export Model No. 2704-01-000 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2017 Gold Medal Products Co. Part No. 110032...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215... - Page 3 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 4: Installation Instructions
Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. Model Description 2704-01-000: Export Cheddar Easy Deluxe Tumbler, 4 gallon capacity. This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed and breakfast or other residential type environments. -
Page 5: Electrical Requirements
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install the unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614 gmpopcorn.com... -
Page 6: Controls And Their Functions
Cheddar Easy Deluxe Tumbler Export Model No. 2704-01-000 OPERATING INSTRUCTIONS Controls and Their Functions POWER SWITCH Two position, ON/OFF lighted rocker switch - supplies power to the tumbler drive motor. With this switch in the ON position, the blending pot will continually roll. Power Switch Operating Instructions... -
Page 7: Care And Cleaning
Wipe the stainless steel parts with a clean cloth and cleaner designed for stainless steel, such as Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine. -
Page 8: Maintenance Instructions
Cheddar Easy Deluxe Tumbler Export Model No. 2704-01-000 MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. -
Page 9: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:... - Page 10 Cheddar Easy Deluxe Tumbler Export Model No. 2704-01-000 Cabinet Exterior Front and Controls View 270 4- 00 -0 00 See Safety Labels section. General images shown for parts reference only. Part Number Item Part Description 2704-01-000 BLENDING POT WELDMENT 111245 ROCKER SW.
- Page 11 Drive/Idler Wheels for Parts Breakdown 2, 3, 4 19, 20, 21 *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. Bottom View General images shown for parts reference only.
- Page 12 Cheddar Easy Deluxe Tumbler Export Model No. 2704-01-000 Cabinet Rear and Bottom View – Parts List Part Number Item Part Description 2704-01-000 ROLLER BRACKET 111239 1/4-20 X 5/8 P/H PHIL 12472 1/4 FLAT WASHER ST. STL. 42989 HEX NUT 1/4-20 ESLOK 42361 COVER PLATE 111241...
- Page 13 Cheddar Easy Deluxe Tumbler Export Model No. 2704-01-000 Motor and Drive/Idler Wheels 270 4- 00 -0 00 6, 7, 8 General images shown for parts reference only. Part Number Item Part Description 2704-01-000 IDLER WHEEL 17506 111230 1/2"X1-1/2" SHOULDER BOLT 111210 3/8"...
-
Page 14: Safety Labels
Cheddar Easy Deluxe Tumbler Export Model No. 2704-01-000 Safety Labels Unit Labels Power Cord Label Part Number Item Part Description 2704-01-000 WARNING LABEL 111246 MAIN GROUND LABEL 42375 WARNING LABEL CORD 68720 gmpopcorn.com Page 14... -
Page 15: Wiring Diagram
Cheddar Easy Deluxe Tumbler Export Model No. 2704-01-000 Wiring Diagram Model No. 2704-01-000 gmpopcorn.com Page 15... - Page 16 © 2017 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
