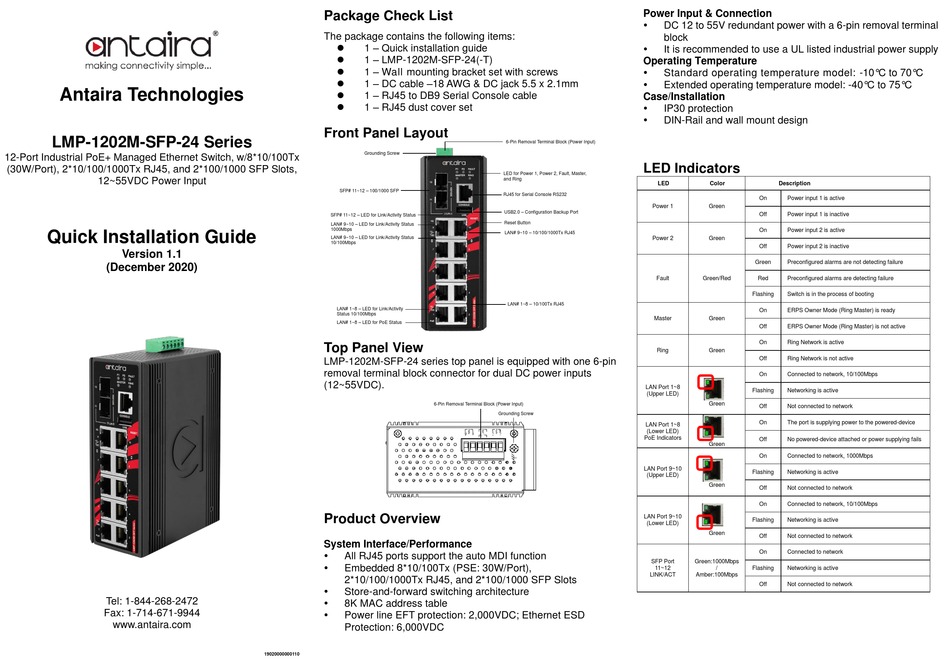

ANTAIRA LMP-1202M-SFP-24 Series Quick Installation Manual

Antaira Technologies
LMP-1202M-SFP-24 Series
12-Port Industrial PoE+ Managed Ethernet Switch, w/8*10/100Tx
(30W/Port), 2*10/100/1000Tx RJ45, and 2*100/1000 SFP Slots,
12~55VDC Power Input
Quick Installation Guide
Version 1.1
(December 2020)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com

Package Check List

The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LMP-1202M-SFP-24(-T)
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – RJ45 to DB9 Serial Console cable
⚫ 1 – RJ45 dust cover set

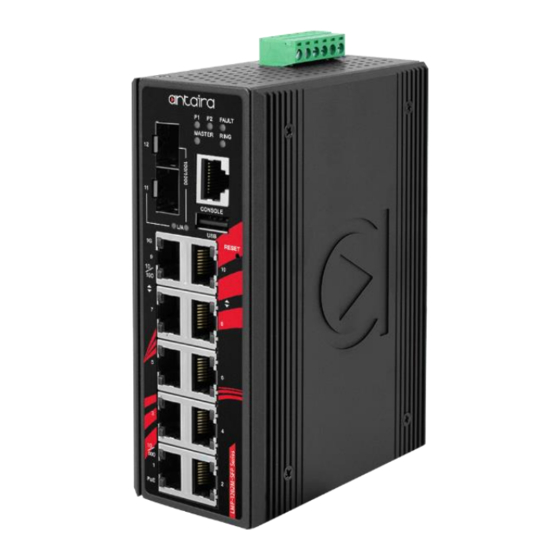

Front Panel Layout

Grounding Screw
SFP# 11~12 – 100/1000 SFP
SFP# 11~12 – LED for Link/Activity Status
LAN# 9~10 – LED for Link/Activity Status
1000Mbps
LAN# 9~10 – LED for Link/Activity Status
10/100Mbps
LAN# 1~8 – LED for Link/Activity
Status 10/100Mbps
LAN# 1~8 – LED for PoE Status

Top Panel View

LMP-1202M-SFP-24 series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~55VDC).
6-Pin Removal Terminal Block (Power Input)

Product Overview

System Interface/Performance


All RJ45 ports support the auto MDI function

Embedded 8*10/100Tx (PSE: 30W/Port),
2*10/100/1000Tx RJ45, and 2*100/1000 SFP Slots

Store-and-forward switching architecture

8K MAC address table

Power line EFT protection: 2,000VDC; Ethernet ESD
Protection: 6,000VDC
19020000000110
Power Input & Connection

DC 12 to 55V redundant power with a 6-pin removal terminal
block

It is recommended to use a UL listed industrial power supply

Operating Temperature


Standard operating temperature model: -10°C to 70°C

Extended operating temperature model: -40°C to 75°C

Case/Installation


IP30 protection

DIN-Rail and wall mount design
6-Pin Removal Terminal Block (Power Input)

LED Indicators

LED for Power 1, Power 2, Fault, Master,
and Ring
LED
RJ45 for Serial Console RS232
Power 1
USB2.0 – Configuration Backup Port
Reset Button
LAN# 9~10 – 10/100/1000Tx RJ45
Power 2
Fault
LAN# 1~8 – 10/100Tx RJ45
Master
Ring
LAN Port 1~8
(Upper LED)
Grounding Screw
LAN Port 1~8
(Lower LED)
PoE Indicators
LAN Port 9~10
(Upper LED)
LAN Port 9~10
(Lower LED)
SFP Port
11~12
LINK/ACT
Color Description
On Power input 1 is active
Green
Off Power input 1 is inactive
On Power input 2 is active
Green
Off Power input 2 is inactive
Green Preconfigured alarms are not detecting failure
Green/Red Red Preconfigured alarms are detecting failure
Flashing Switch is in the process of booting
On ERPS Owner Mode (Ring Master) is ready
Green
Off ERPS Owner Mode (Ring Master) is not active
On Ring Network is active
Green
Off Ring Network is not active
On Connected to network, 10/100Mbps
Flashing Networking is active
Green
Off Not connected to network
On The port is supplying power to the powered-device
Off No powered-device attached or power supplying fails
Green
On Connected to network, 1000Mbps
Flashing Networking is active
Green
Off Not connected to network
On Connected to network, 10/100Mbps
Flashing Networking is active
Green
Off Not connected to network
On Connected to network
Green:1000Mbps
/ Flashing Networking is active
Amber:100Mbps
Off Not connected to network
