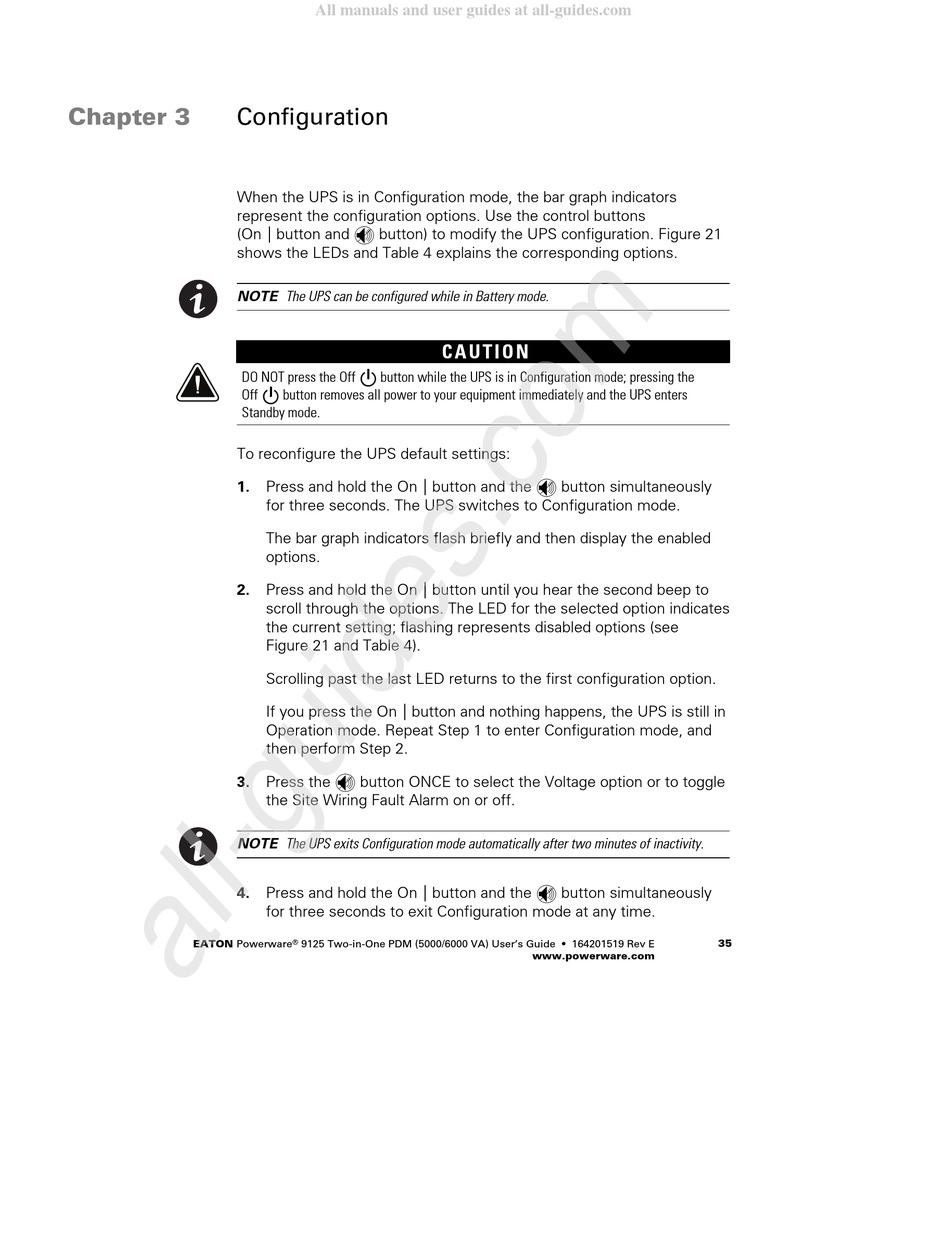

Chapter 3

Configuration

When the UPS is in Configuration mode, the bar graph indicators
represent the configuration options. Use the control buttons
(On button and
shows the LEDs and Table 4 explains the corresponding options.
NOTE The UPS can be configured while in Battery mode.
DO NOT press the Off
Off
Standby mode.
To reconfigure the UPS default settings:
1.
2.
3.
NOTE The UPS exits Configuration mode automatically after two minutes of inactivity.
4.
EATON Powerware
All manuals and user guides at all-guides.com
button) to modify the UPS configuration. Figure 21
C A U T I O N
button while the UPS is in Configuration mode; pressing the
button removes all power to your equipment immediately and the UPS enters
Press and hold the On button and the
for three seconds. The UPS switches to Configuration mode.
The bar graph indicators flash briefly and then display the enabled
options.
Press and hold the On button until you hear the second beep to
scroll through the options. The LED for the selected option indicates
the current setting; flashing represents disabled options (see
Figure 21 and Table 4).
Scrolling past the last LED returns to the first configuration option.
If you press the On button and nothing happens, the UPS is still in
Operation mode. Repeat Step 1 to enter Configuration mode, and
then perform Step 2.
Press the button ONCE to select the Voltage option or to toggle
the Site Wiring Fault Alarm on or off.
Press and hold the On button and the
for three seconds to exit Configuration mode at any time.
®
9125 Two-in-One PDM (5000/6000 VA) User's Guide
button simultaneously
button simultaneously
S
164201519 Rev E
www.powerware.com
35
