PDM Input Cord (to UPS)
PDM Output Cord (to UPS)
Input Connector
Output Receptacle (L14-30)
PDM Input Cord (to UPS)
PDM Output Cord (to UPS)
Output Receptacle (L6-30)
Input Connector
Output Receptacle (L14-30)
EATON Powerware
All manuals and user guides at all-guides.com
Neutral-to-Ground Bonding Screw

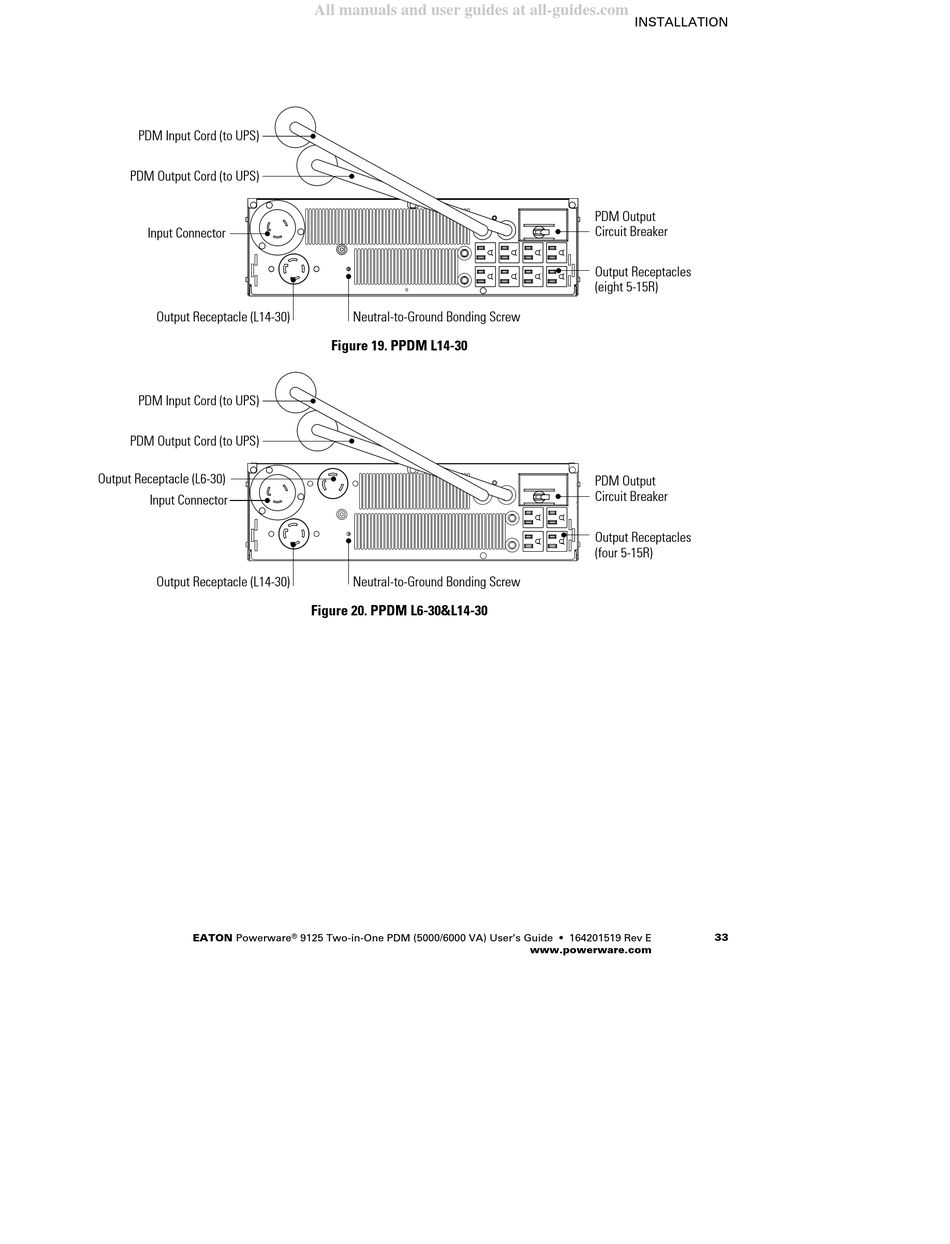

Figure 19. PPDM L14-30
Neutral-to-Ground Bonding Screw
Figure 20. PPDM L6-30&L14-30
®
9125 Two-in-One PDM (5000/6000 VA) User's Guide
INSTALLATION
PDM Output
Circuit Breaker
Output Receptacles
(eight 5-15R)
PDM Output
Circuit Breaker
Output Receptacles
(four 5-15R)
