INSTALLATION

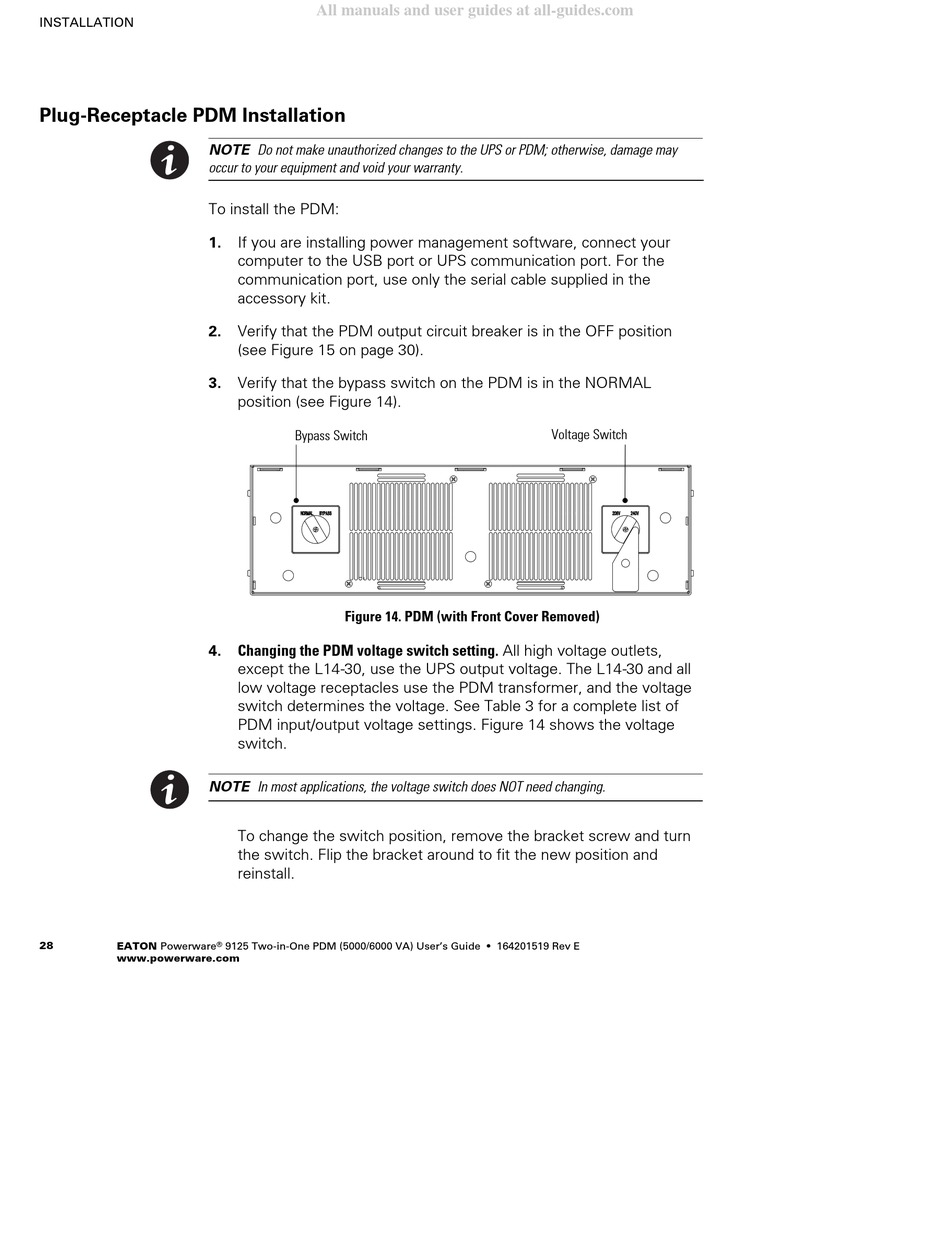

Plug-Receptacle PDM Installation

NOTE Do not make unauthorized changes to the UPS or PDM; otherwise, damage may
occur to your equipment and void your warranty.
To install the PDM:
1.
2.
3.
4.
NOTE In most applications, the voltage switch does NOT need changing.
28 ®
EATON Powerware
www.powerware.com
All manuals and user guides at all-guides.com
If you are installing power management software, connect your
computer to the USB port or UPS communication port. For the
communication port, use only the serial cable supplied in the
accessory kit.
Verify that the PDM output circuit breaker is in the OFF position
(see Figure 15 on page 30).
Verify that the bypass switch on the PDM is in the NORMAL
position (see Figure 14).
Bypass Switch
Figure 14. PDM (with Front Cover Removed)
Changing the PDM voltage switch setting. All high voltage outlets,
except the L14-30, use the UPS output voltage. The L14-30 and all
low voltage receptacles use the PDM transformer, and the voltage
switch determines the voltage. See Table 3 for a complete list of
PDM input/output voltage settings. Figure 14 shows the voltage
switch.
To change the switch position, remove the bracket screw and turn
the switch. Flip the bracket around to fit the new position and
reinstall.
9125 Two-in-One PDM (5000/6000 VA) User's Guide
Voltage Switch
S
164201519 Rev E
