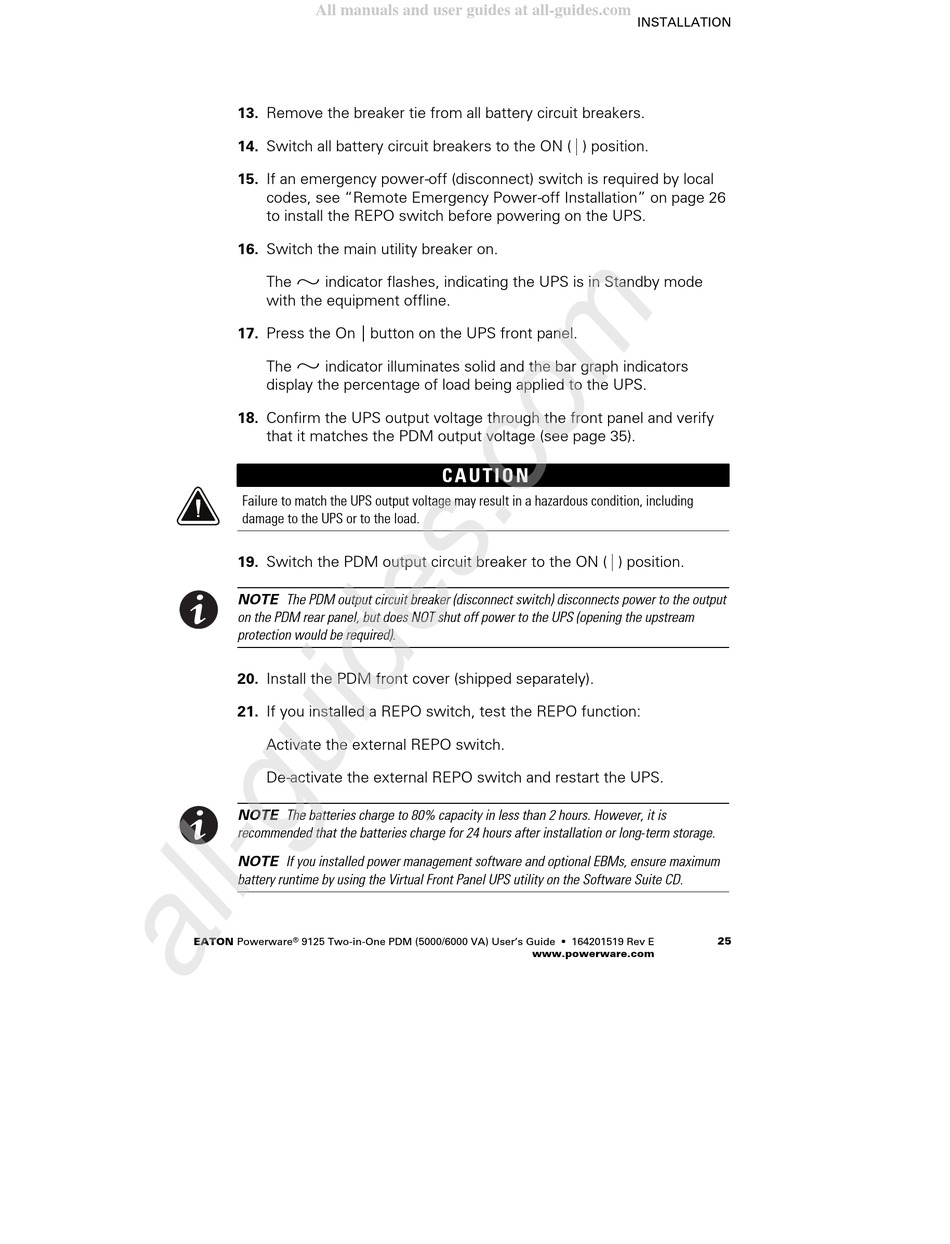

13. Remove the breaker tie from all battery circuit breakers.
14. Switch all battery circuit breakers to the ON (
15. If an emergency power-off (disconnect) switch is required by local
codes, see "Remote Emergency Power-off Installation" on page 26
to install the REPO switch before powering on the UPS.
16. Switch the main utility breaker on.
μ
The indicator flashes, indicating the UPS is in Standby mode
with the equipment offline.
17. Press the On button on the UPS front panel.
μ
The indicator illuminates solid and the bar graph indicators
display the percentage of load being applied to the UPS.
18. Confirm the UPS output voltage through the front panel and verify
that it matches the PDM output voltage (see page 35).
Failure to match the UPS output voltage may result in a hazardous condition, including
damage to the UPS or to the load.
19. Switch the PDM output circuit breaker to the ON (
NOTE The PDM output circuit breaker (disconnect switch) disconnects power to the output
on the PDM rear panel, but does NOT shut off power to the UPS (opening the upstream
protection would be required).
20. Install the PDM front cover (shipped separately).
21. If you installed a REPO switch, test the REPO function:
Activate the external REPO switch.
De-activate the external REPO switch and restart the UPS.
NOTE The batteries charge to 80% capacity in less than 2 hours. However, it is
recommended that the batteries charge for 24 hours after installation or long-term storage.
NOTE If you installed power management software and optional EBMs, ensure maximum
battery runtime by using the Virtual Front Panel UPS utility on the Software Suite CD.
®
EATON Powerware 9125 Two-in-One PDM (5000/6000 VA) User's Guide
|
) position.
C A U T I O N
|
) position.
S
164201519 Rev E
www.powerware.com
INSTALLATION
25
