ICON PRO-FORM 8.0 EX User Manual page 10

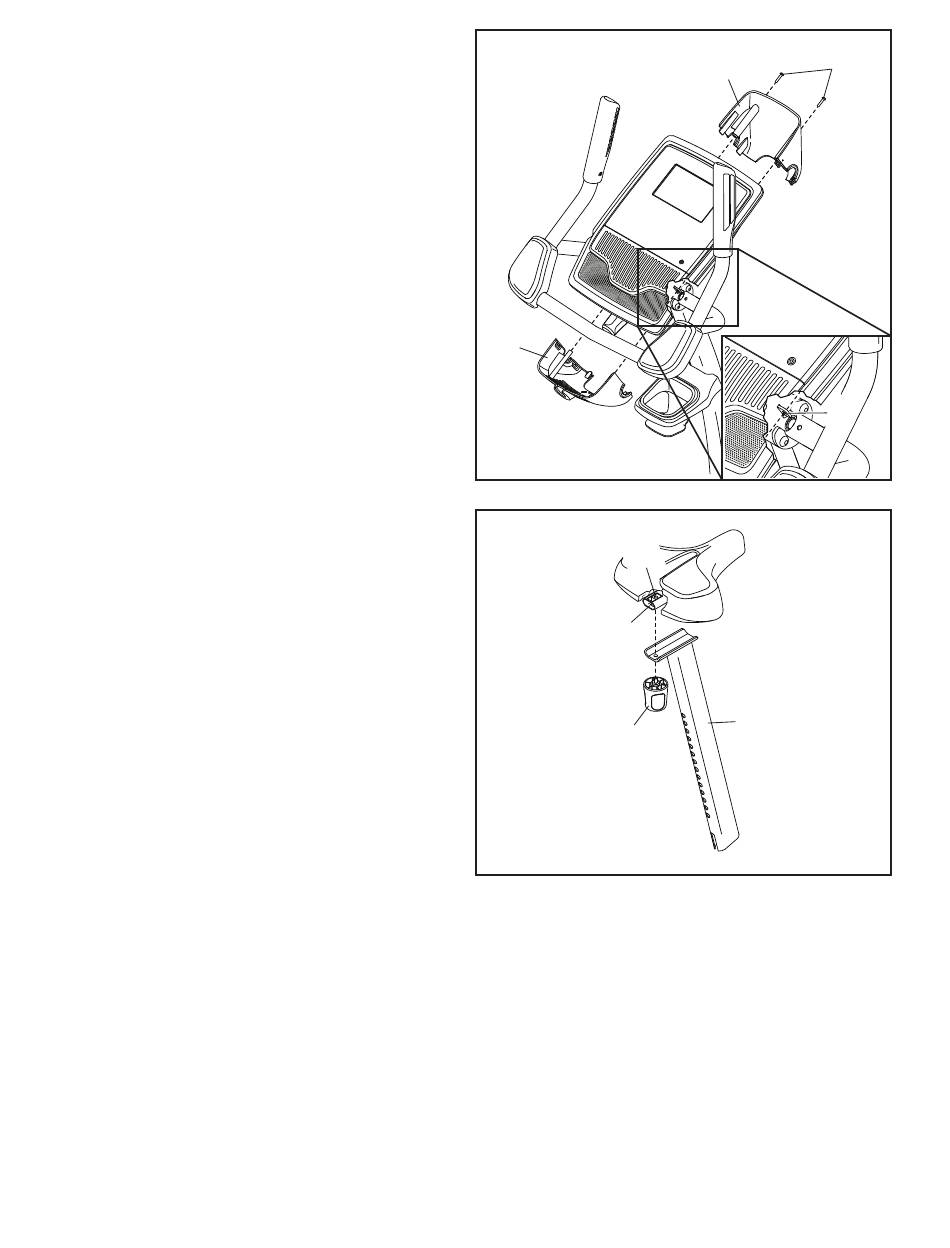

9. Tip: Avoid pinching the wires. Press the Front
Pivot Cover (12) and the Rear Pivot Cover (15)
together around the Pivot Bracket (71).
Attach the Front and Rear Pivot Covers (12, 15)
to the Pivot Bracket (71) with two M4 x 22mm
Screws (84).
10. Remove the Seat Knob (26) from the Seat
Bracket (30) inside the Seat Carriage (24).
Next, hold the Seat Carriage (24) on the Seat
Post (6). Insert the Seat Knob (26) upward into
the Seat Post, and tighten the Seat Knob into the
Seat Bracket (30) inside the Seat Carriage.
