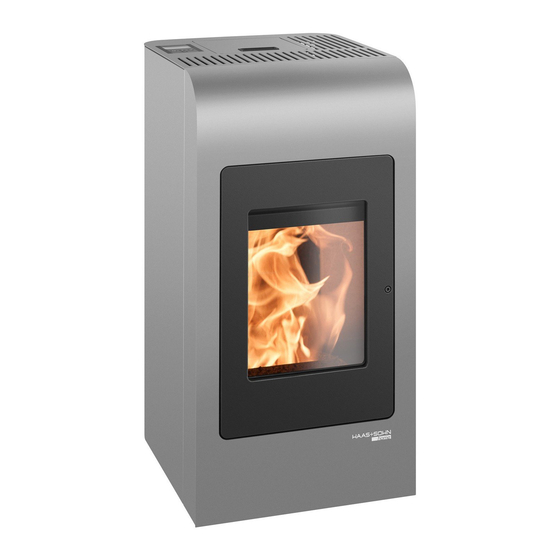

- Page 1 HSP 2 Home II 714.07 Technical documentation HSP 2 Home II 714.07 HSP 2.17 Selina-ST Geräteblatt Pelletofen Fiche technique Poêle à pellets Scheda tecnica Stufe pellet Equipment sheet Pellet stove Tehnički list Kotel na pelete Tehnični list Kotel na pelete...
- Page 2 Notes in the text Of utmost importance there are the notes entitled WARNING. The notes entitled WARNING advise you on serious danger of damage to the heating device or of an injury. The note entitled Notice advises you on possible damage to your heating device. The note entitled Important calls your attention to the information important for the operation of your heating device.
-
Page 3: Table Of Contents
4. Maintenance work........................5 4.1. Cleaning the flue gas passes - annual maintenance............5 4.2. Cleaning the pellet container - annual maintenance ............7 5. Replacement parts list....................... 9 5.1. Replacement parts list HSP 2.17 Selina-ST............9 6. Circuit diagram .......................... 11... -
Page 5: Technical Data
1. Technical data HSP 2.17 Selina-ST Heat output range: 2,4 – 8,6 kW Nominal heat output: 8,0 kW Height: 967 mm Width: 498 mm Depth: 525 mm Weight: 90 kg Diameter of flue elbow: 80 mm Flue gas temperature: 198°C... -
Page 6: Dimensions
2. Dimensions... -
Page 7: Cleaning Work
3. Cleaning work WARNING Before starting any cleaning work, the stove must be cool down and set to "Off"! Once the cleaning work is completed, the correct operating status of the device must be re- established: Put the combustion pot in correctly, close the combustion chamber door. 3.1. - Page 8 WARNING If this is not done, the clinker will continue to accumulate. Then the device will no longer be able to ignite properly. Pellets can pile up in the combustion pot. In extreme cases, this can reach all the way back to the pellet chute.
-
Page 9: Maintenance Work
4. Maintenance work WARNING During the maintenance tasks, the mains plug must be pulled out of the power supply socket (always in advance)! The frequency of maintenance in turn depends to a large extent on the pellet quality (ash content). Quality pellets have a low ash content of about 0.2-0.3%. - Page 10 Figure 8b: Removing the side wall CAUTION After completion of the cleaning make sure that when putting back the covers, the seals are seated in the right positions. It is essential to replace defective seals.
-
Page 11: Cleaning The Pellet Container - Annual Maintenance
4.2. Cleaning the pellet container - annual maintenance • Heat the pellet stove until the storage tank is completely empty. • Then the protective grille (1) in the pellet tank may be removed. • Then clean the tank and the intake of the screw conveyor housing with a vacuum cleaner. •... -
Page 13: Replacement Parts List
5. Replacement parts list 5.1. Replacement parts list HSP Selina-ST... -
Page 15: Circuit Diagram
6. Circuit diagram Circuit diagram IO 33.3... - Page 16 Description Circuit diagram: No.: Description Cable harness Mains plug / mains filter Electric ignition Screw conveyor motor Induced draught 8.IX Flue gas temperature sensor 35/36 Flame temperature sensor 37/38 Room temperature sensor 39/40 Bottom flame temperature sensor 41/42 43/44 Door contact switch Flue gas fan rotation speed 48-50 Fuse T 3,15A ignition, induced draught fan, screw...
