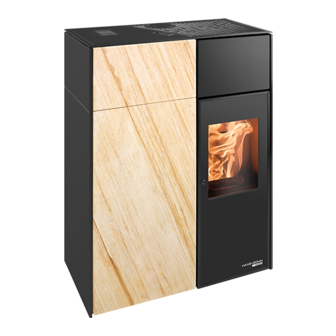

HSP 8 Catania-II 444.08–ST
HSP 8 Lucca-II 445.08–ST
Technical documentation
HSP 8 Catania-II 444.08–ST
HSP 8 Lucca-II 445.08–ST
HSP 8 Catania-II 444.08–ST
HSP 8 Lucca-II 445.08–ST
Geräteblatt
Pelletofen
Fiche technique
Poêle à pellets
Scheda tecnica
Stufe pellet
Equipment sheet
Pellet stove
Tehnički list
Kotel na pelete
Tehnični list
Kotel na pelete
V16 C17
DE
FR
IT
GB
HR
SLO
0544408009037
Advertisement
Table of Contents
Related Manuals for HAAS + SOHN HSP 8 Catania-II 444.08-ST HSP 8 Lucca-II 445.08-ST
Summary of Contents for HAAS + SOHN HSP 8 Catania-II 444.08-ST HSP 8 Lucca-II 445.08-ST
- Page 1 HSP 8 Catania-II 444.08–ST HSP 8 Lucca-II 445.08–ST Technical documentation HSP 8 Catania-II 444.08–ST HSP 8 Lucca-II 445.08–ST HSP 8 Catania-II 444.08–ST HSP 8 Lucca-II 445.08–ST Geräteblatt Pelletofen Fiche technique Poêle à pellets Scheda tecnica Stufe pellet Equipment sheet Pellet stove Tehnički list Kotel na pelete Tehnični list...
- Page 2 Notes in the text Of utmost importance there are the notes entitled WARNING. The notes entitled WARNING advise you on serious danger of damage to the heating device or of an injury. The note entitled Notice advises you on possible damage to your heating device. The note entitled Important calls your attention to the information important for the operation of your heating device.
-
Page 3: Table Of Contents
Contents 1. Technical data..........................1 2. Dimensions........................... 2 3. Cleaning work ..........................3 3.1. Cleaning the surface ......................... 3 3.2. Cleaning the glass panel ......................3 3.3. Clean combustion chamber “function instruction” error F040 ..........3 3.4. Cleaning the combustion pot -weekly ..................3 4. -
Page 5: Technical Data
1. Technical data HSP 8 Catania-II HSP 8 Lucca-II 444.08–ST 445.08–ST Heat output range: 2,5 – 8,5 kW 2,5 – 8,5 kW Nominal heat output: 8,0 kW 8,0 kW Height: 1082 mm 1082 mm Width: 795 mm 795 mm Depth: 434 mm 434 mm Weight:... -
Page 6: Dimensions
2. Dimensions... -
Page 7: Cleaning Work
3. Cleaning work WARNING Before starting any cleaning work, the stove must be cool down and set to "Off"! Once the cleaning work is completed, the correct operating status of the device must be re- established: Put the combustion pot in correctly, close the combustion chamber door. 3.1. - Page 8 WARNING If this is not done, the clinker will continue to accumulate. Then the device will no longer be able to ignite properly. Pellets can pile up in the combustion pot. In extreme cases, this can reach all the way back to the pellet chute.
-
Page 9: Maintenance Work
4. Maintenance work WARNING During the maintenance tasks, the mains plug must be pulled out of the power supply socket (always in advance)! The frequency of maintenance in turn depends to a large extent on the pellet quality (ash content). Quality pellets have a low ash content of about 0.2-0.3%. -
Page 10: Cleaning The Flue Gas Passes - Annual Maintenance
4.2. Cleaning the flue gas passes - annual maintenance CAUTION We therefore recommend checking and/or cleaning the flue gas passes after 1,000 kg of pellets at the latest. To clean the flue gas passes, proceed as follows: • Disconnect the flue baffle (1) from the guide by lifting it. Draw the right cladding (2) down out of the guide and place it down in the ash space. - Page 11 Figure 8b: Removing the side wall CAUTION After completion of the cleaning make sure that when putting back the covers, the seals are seated in the right positions. It is essential to replace defective seals.
-
Page 12: Cleaning The Induced Draught Housing And Fan
4.3. Cleaning the induced draught housing and fan • This housing is made accessible for cleaning by undoing the 4 nuts shown in Figure 9. (See arrows). • Remove the induced draught motor by pulling it out. • Now clean the flue gas passes, the induced draught fan and the flue tubes with a brush and an ash vacuum cleaner. -
Page 13: Replacement Parts List
5. Replacement parts list 5.1. Replacement parts list HSP 8 Lucca-II-RLU 442.08–ST, HSP 8 Catania-II-RLU 443.08–ST (without trim parts) - Page 14 Description Pos. Piece No. PR Replacement parts list HSP 8 Lucca-II-RLU 442.08–ST, HSP 8 Catania-II-RLU 443.08–ST (without trim parts) Complete combustion chamber door/pearly- 0544208005300 1 piece black 1 piece 0544208006762 Burner cast Protection grate 1 piece 0544208006713 Combustion chamber cladding left 1 piece 0544208005507 Combustion chamber cladding back...
-
Page 15: Replacement Parts List Hsp 8 Lucca-Ii-Rlu 442.08-St, Hsp 8 Catania-Ii-Rlu 443.08-St
5.2. Replacement parts list HSP 8 Lucca-II-RLU 442.08–ST, HSP 8 Catania-II-RLU 443.08–ST Description Pos. Piece No. PR Replacement parts list HSP 8 Lucca-II-RLU 442.08–ST, HSP 8 Catania-II-RLU 443.08–ST Side wall complete left pearly-black 1 piece 0544408006123 Side wall complete right pearly-black 1 piece 0544408006122 Front part ST Woodstone Lucca... -
Page 16: Detail A1
5.3. Detail A1 Description Pos. Piece No. PR Detail A1 Screwing door 1 piece 0544208005221 A1.1. Door hinge - Set 1 piece 0544208005222 A1.2. Glass holder 1 - Set 1 piece 0544208005223 A1.3. Glass holder 2 - Set 1 piece 0544208005224 A1.4. -
Page 17: Circuit Diagram
6. Circuit diagram Circuit diagram IO 33.3... - Page 18 Description Circuit diagram: No.: Description Cable harness Mains plug / mains filter Electric ignition Screw conveyor motor Induced draught 8.IX Flue gas temperature sensor 35/36 Flame temperature sensor 37/38 Room temperature sensor 39/40 Bottom flame temperature sensor 41/42 43/44 Door contact switch Flue gas fan rotation speed 48-50 Fuse T 3,15A ignition, induced draught fan, screw...
