Summary of Contents for HAAS + SOHN HSP 8 Home 445.08

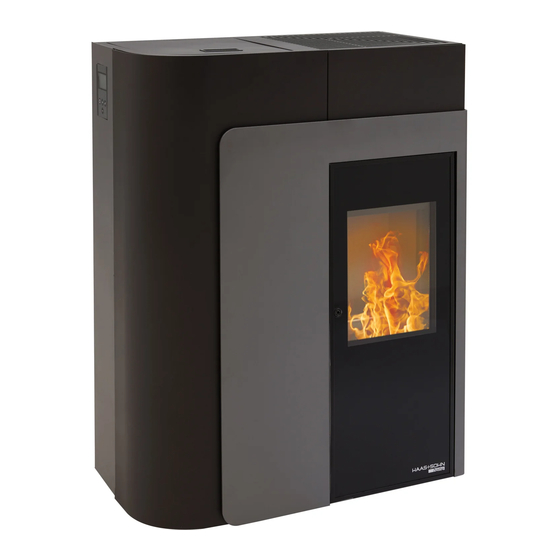

- Page 1 HSP 8 Home 445.08 Technical documentation HSP 8 Home 445.08 HSP 8 Home 445.08 Geräteblatt Pelletofen Fiche technique Poêle à pellets Scheda tecnica Stufe pellet Equipment sheet Pellet stove Tehnički list Kotel na pelete Tehnični list Kotel na pelete V17 J31...
- Page 2 Notes in the text Of utmost importance there are the notes entitled WARNING. The notes entitled WARNING advise you on serious danger of damage to the heating device or of an injury. The note entitled Notice advises you on possible damage to your heating device. The note entitled Important calls your attention to the information important for the operation of your heating device.
-
Page 3: Table Of Contents
4.3.1. Cleaning the vent fan ......................15 4.3.2. Cleaning annual Chimneys ....................15 5. Replacement parts list......................16 5.1. Replacement parts list HSP 8 Home 445.08 (without trim parts) ........16 5.2. Replacement parts list HSP 8 Home 445.08 ............... 18 5.3. Detail A1............................ 19... -
Page 5: Technical Data
1. Technical data HSP 8 Home 445.08 Heat output range: 2,5 – 8,5 kW Nominal heat output: 8,0 kW Height: 1082 mm Width: 813,5 mm Depth: 417 mm Weight: 123 kg Diameter of flue elbow: 80 mm Flue gas temperature: 201°C... -
Page 6: Dimensions
2. Dimensions... -
Page 7: Cleaning Work
3. Cleaning work WARNING Before starting any cleaning work, the stove must be cool down and set to "Off"! Once the cleaning work is completed, the correct operating status of the device must be re- established: Put the combustion pot in correctly, close the combustion chamber door. 3.1. - Page 8 WARNING If this is not done, the clinker will continue to accumulate. Then the device will no longer be able to ignite properly. Pellets can pile up in the combustion pot. In extreme cases, this can reach all the way back to the pellet chute.
-
Page 9: Maintenance Work
4. Maintenance work WARNING During the maintenance tasks, the mains plug must be pulled out of the power supply socket (always in advance)! The frequency of maintenance in turn depends to a large extent on the pellet quality (ash content). Quality pellets have a low ash content of about 0.2-0.3%. -
Page 10: Cleaning The Flue Gas Passes - Annual Maintenance
4.2. Cleaning the flue gas passes - annual maintenance CAUTION We therefore recommend checking and/or cleaning the flue gas passes after 1,000 kg of pellets at the latest. To clean the flue gas passes, proceed as follows: • Disconnect the flue baffle (1) from the guide by lifting it. Draw the right cladding (2) down out of the guide and place it down in the ash space. - Page 14 Figure 1a-2h: Cleaning Cover removing The following tools are required to disassemble: • Cross head screwdriver • Allen key 4 mm / 5 mm • Wrench 8 mm / 10 mm CAUTION After completion of the cleaning make sure that when putting back the covers, the seals are seated in the right positions.
-
Page 15: The Left Side Of The Device To The Unit During Dismantling Of The Enclosure Access
4.3. The left side of the device to the unit during dismantling of the enclosure access 4.3 a 4.3 b... - Page 16 4.3 c 4.3 d...
- Page 17 4.3. e 4.3.f...
- Page 18 4.3.g 4.3 h...
-
Page 19: Cleaning The Vent Fan
4.3.1. Cleaning the vent fan CAUTION Blowers house after dismantling the chimney cleaned from the back side.. If buildup occurs, - to proceed and audible noise from the fan housing, as follows: • This housing is made accessible for cleaning by undoing the 4 nuts shown in Figure 9. (See arrows). •... -
Page 20: Replacement Parts List
5. Replacement parts list 5.1. Replacement parts list HSP 8 Home 445.08 (without trim parts) - Page 21 Description Pos. Piece No. PR Replacement parts list HSP 8 Home (without trim parts) Complete combustion chamber door/pearly- 0544208005300 1 piece black 1 piece 0544208006762 Burner cast Protection grate 1 piece 0544208006713 Combustion chamber cladding left 1 piece 0544208005507 Combustion chamber cladding back 2 piece 0544208005505 Combustion chamber cladding right...
-
Page 22: Replacement Parts List Hsp 8 Home 445.08
5.2. Replacement parts list HSP 8 Home 445.08 Description Pos. Piece No. PR Replacement parts list HSP 8 Home 445.08 Side wall left white 1 piece 0544508016121 Side wall left pearly-gray 1 piece 0544508016101 Front part left pearly-black 1 piece... -
Page 23: Detail A1
5.3. Detail A1 Description Pos. Piece No. PR Detail A1 Screwing door 1 piece 0544208005221 A1.1. Door hinge - Set 1 piece 0544208005222 A1.2. Glass holder 1 - Set 1 piece 0544208005223 A1.3. Glass holder 2 - Set 1 piece 0544208005224 A1.4. -
Page 24: Circuit Diagram
6. Circuit diagram Circuit diagram IO 33.3 W-LAN Modul USB Mini erstellt: bu, 2017-10-24 8041311833_B freigegeben:... - Page 25 Description Circuit diagram: No.: Description Cable harness Mains plug / mains filter Electric ignition Screw conveyor motor Induced draught 8.IX Flue gas temperature sensor 35/36 Flame temperature sensor 37/38 Room temperature sensor 39/40 Bottom flame temperature sensor 41/42 43/44 Door contact switch Flue gas fan rotation speed 48-50 Fuse T 3,15A ignition, induced draught fan, screw...
