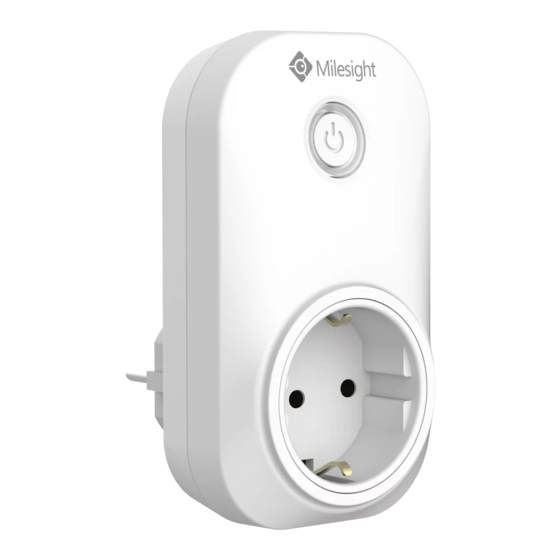

Portable Socket
Featuring LoRaWAN
®
WS523
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS523 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Milesight WS523

Summary of Contents for Milesight WS523

  • Page 1 Portable Socket Featuring LoRaWAN ® WS523 User Guide...
  • Page 2  may damage the device. Declaration of Conformity WS523 is in conformity with the essential requirements and other relevant provisions of the CE, FCC, and RoHS. Copyright © 2011-2023 Milesight. All rights reserved. All information in this guide is protected by copyright law. Whereby, no organization or individual shall copy or reproduce the whole or part of this user guide by any means without written authorization from Xiamen Milesight IoT Co., Ltd.
  • Page 3 V 1.1 2. Support RX2 configuration January 10, 2022 V 1.2 Support power outage alert 1. Add Milesight D2D Agent feature 2. Add Single Channel mode January 9, 2023 V 1.3 3. Add reboot downlink command 4. Add overcurrent protection feature...

  • Page 4: Table Of Contents

    3.2 LoRaWAN Settings ........................8 3.2.1 Basic Settings ....................... 8 3.2.2 Multicast Settings .......................10 3.3 General Settings ........................12 3.4 Milesight D2D Settings ......................14 3.5 Maintenance .......................... 14 3.5.1 Upgrade ........................14 3.5.2 Backup .........................15 3.5.3 Reset to Factory Default .....................16 4.

  • Page 5: Product Introduction

    ® appliances. Supporting a variety of international socket types, WS523 can be used to turn on or off the electronic devices locally or remotely, to measure power consumption data, and even to send alarms in case of overcurrent events.

  • Page 6: Hardware Overview

    1) Network status will only display when LED is enabled and the socket powers on. 2) If WS523 still fails to join the network after 32 join requests, the LED will stop blinking. 3) Reset operation is not affected even button lock is enabled or LED indicator is disabled.

  • Page 7: Operation Guide

    App. In order to protect the security of the device, password validation is required when configuring via smartphone. Default password is 123456. 5. Press the power button, WS523 portable socket will supply the electric power to other electronic appliances. Note: 1) Check the NFC area of your smartphone and it’s recommended to remove the phone case.

  • Page 8: Lorawan Settings

    LoRaWAN settings are used to configure the data transmission parameters in LoRaWAN ® network. 3.2.1 Basic Settings WS523 supports basic configurations like join type, App EUI, App Key and other information. You can also keep all settings by default. Parameters Description Device EUI Unique ID of the device which can also be found on the label.
  • Page 9 Select Standard-Channel mode or Single-Channel mode. When Single-Channel Channel Mode mode is enabled, only one channel can be selected to send uplinks. Please enable Single-Channel mode if you connect device to DS7610. Enable or disable the frequency to send uplinks. If frequency is one of CN470/AU915/US915, enter the index of the channel that you want to enable and make them separated by commas.

  • Page 10: Multicast Settings

    WS523 supports setting up several multicast groups to receive multicast commands from network server and users can use this feature to control devices in bulks. 1. Enable Multicast Group on WS523, set a unique multicast address and keys to distinguish other groups. You can also keep these settings by default.
  • Page 11 Multicast Group 3: 5572404C696E6B4C6F52613230313825 Multicast Group 4: 5572404C696E6B4C6F52613230313826 2. Add a multicast group on the network server. Take Milesight UG6x gateway as example, go to Network Server > Multicast Groups, click Add to add a multicast group. Fill in the multicast group information the same as WS523 settings, and select the devices which...

  • Page 12: General Settings

    3. Go to Network Server > Packets, select the multicast group and fill in the downlink command, click Send. The network server will broadcast the command to devices which belongs to this multicast group. Note: ensure all devices’ application ports are the same. 3.3 General Settings Go to Device >...
  • Page 13 Parameters Description The interval of reporting socket status and electrical parameters. Default: Reporting Interval 20 mins, Range: 1-1080 mins LED Indicator Enable or disable the light indicating in chapter 2.4. Power Record the power consumption. If disabled, the device will stop recording Consumption and the power consumption value will stop updating.

  • Page 14: Milesight D2D Settings

    Milesight D2D controller device.(Default D2D Key: 5572404C696E6B4C6F52613230313823) 3. Define a 2-byte hexadecimal control command (0x0000 to 0xffff) and command action. For example, you can configure a control command 1510 to turn on the button as below. WS523 supports at most 16 control commands.

  • Page 15: Backup

    3.5.2 Backup WS523 supports configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRaWAN ® frequency band. 1. Go to “Template” page on the App and save current settings as a template. You can also edit the template file.

  • Page 16: Reset To Factory Default

    3.5.3 Reset to Factory Default Please select one of the following methods to reset device: Via Hardware: Hold on the power button for more than 10s until LED quickly blinks. Via ToolBox App: Go to Device > Maintenance to tap Reset, then attach smartphone with NFC area to device to complete the resetting.

  • Page 17: Device Payload

    1 Byte 1 Byte M Bytes 1 Byte For decoder examples you can find at https://github.com/Milesight-IoT/SensorDecoders. 4.1 Basic Information WS523 reports basic information of device every time when it joins the network. Channel Type Description 01(Protocol Version) 01=>V1 09 (Hardware Version) 01 40 =>...

  • Page 18: Sensor Data

    00=>00 00 00 Consumption) Power) Wh=0.005kWh 01=1 W 4.3 Power Outage Alert WS523 will report an alert message when power supply of WS523 is disconnected. This feature only works with hardware version 1.2 and later. ff3fff Channel Type Value 3f (Power Outage)

  • Page 19: Downlink Commands

    4.4 Downlink Commands WS523 supports downlink commands to configure the device. Application port is 85 by default. Channel Type Description 00 00 ff-close, 01 00 ff-open 03 (Set Reporting Interval) 2 Bytes, unit: s 10 (Reboot) Byte 1: 00 Byte 2-3: delay time, unit: s...
  • Page 20 ff22003c0011 Channel Type Value Byte 1:00 (Add Delay Byte 2-3: 3c 00=>00 3c=60s=1min Task) Byte 4: 11=>open 4. Delete the delay task ff2300ff Channel Type Value 23(Delete Delay 00ff Task) 5. Enable overcurrent alarm and protection and set current threshold as 10A. ff24010a ff30010a Channel Type...
