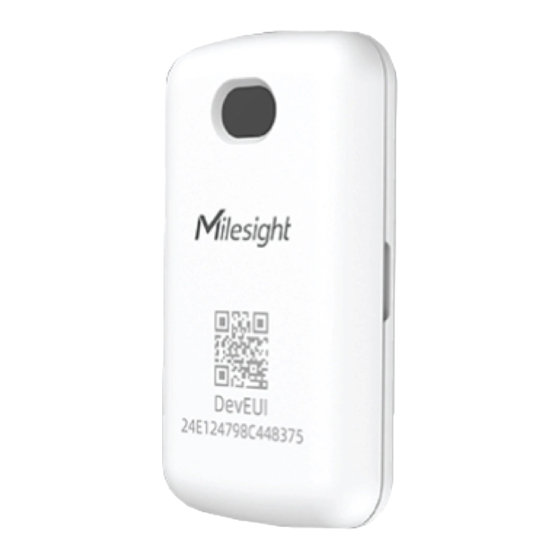

- Page 1 Smart Fill Level Monitoring Sensor Featuring LoRaWAN ® WS201 User Guide...
- Page 2 Safety Precautions Milesight will not shoulder responsibility for any loss or damage resulting from not following the instructions of this operating guide. The device must not be disassembled or remodeled in any way. To ensure the security of your device, please change the device password during the initial ...
-
Page 3: Table Of Contents
Contents 1. Product Introduction ......................... 4 1.1. Overview ..........................4 1.2. Features ..........................4 2. Hardware Introduction ........................4 2.1. Packing List ..........................4 2.2. Hardware Overview ........................ 5 2.3. Dimensions (mm) ........................5 2.4. Reset Button & LED Indicator Patterns ................. 5 3. -
Page 4: Product Introduction
Damp-proof coating inside the device to ensure it works well in various bathrooms and other scenarios Function well with standard LoRaWAN gateway and network servers ® Compliant with Milesight IoT Cloud 2. Hardware Introduction 2.1. Packing List... -
Page 5: Hardware Overview
1 × WS201 1 × CR2450 1 × 3M Tape 1 × Mirror 1 × Quick Start Device Battery Cleaning Cloth Guide If any of the above items are missing or damaged, please contact your sales representative. 2.2. Hardware Overview 2.3. -
Page 6: Power Supply
4.1. NFC Configuration WS201 can be configured via NFC. 1. Download and install “Milesight ToolBox” App from Google Play or App Store. 2. Enable NFC on the smartphone and open “Milesight ToolBox” App. 3. Attach the smartphone with the NFC area to the device to read the basic information. -
Page 7: Lorawan Settings
2) If the smartphone fails to read/write configurations via NFC, move it away and try again later. 3) WS201 can also be configured by a dedicated NFC reader provided by Milesight IoT. 4.2. LoRaWAN Settings Go to Device > Setting > LoRaWAN Settings of ToolBox App to configure join type, App EUI, App Key and other information. - Page 8 App EUI The default App EUI is 24E124C0002A0001. Application Port The port used for sending and receiving data, the default port is 85. Join Type OTAA and ABP modes are available. Application Key Appkey for OTAA mode, default is 5572404C696E6B4C6F52613230313823. Device Address DevAddr for ABP mode, default is the 5 to 12...
- Page 9 1) Please contact sales for the device EUI list if there are many units. 2) Please contact sales if you need random App keys before purchase. 3) Select OTAA mode if you use Milesight IoT Cloud to manage devices. 4) Only OTAA mode supports rejoin mode.
-
Page 10: Basic Settings
4.3. Basic Settings Go to Device > Setting > General Settings to change the reporting interval, etc. Parameters Description Reporting interval of transmitting data to the network server. Range: Reporting Interval 60~1080 mins; Default: 1080 mins Enable or disable hibernate mode. When the feature is enabled, the device Hibernate Mode will hibernate during the hibernate period and the sensor will not detect distance and not reports. -
Page 11: Maintenance
Collecting Interval 30min; Range: 1~1080min When the remaining amount changes from outside the threshold to Alarm Dismiss Report within the threshold, a alarm dismiss packet will be reported. 4.5. Maintenance 4.5.1. Upgrade 1. Download firmware from Milesight website to your smartphone. -
Page 12: Backup
2. Open Toolbox App, go to Device > Maintenance and click Browse to import firmware and upgrade the device. Note: 1) Operation on ToolBox is not supported during a firmware upgrade. 2) Only the Android version of ToolBox supports the upgrade feature. 4.5.2. -
Page 13: Reset To Factory Default
Note: Slide the template item left to edit or delete the template. Click the template to edit the configurations. 4.5.3. Reset to Factory Default Please select one of the following methods to reset the device: Via Hardware: Hold on the reset button (internal) for more than 10s. Via ToolBox App: Go to Device >... -
Page 14: Installation
5. Installation Paste 3M tape to the back of WS201, then remove the protective layer and place it on a flat surface. Installation Note In order to provide the best data transmission, please ensure the device is within the signal range of ... -
Page 15: Device Payload
1 Byte N Bytes 1 Byte 1 Byte M Bytes 1 Byte For decoder examples please find files on https://github.com/Milesight-IoT/SensorDecoders. 6.1. Basic Information WS201 reports basic information about the sensor every time it joins the network. Channel Type Description 01(Protocol Version) 01=>V1... -
Page 16: Downlink Commands
device will report this as FF. Example: 1. Periodic Packet 017564 03821b00 04d62e Channel Type Value Channel Type Value 1b 00 => 00 1b 64 => 100% (Battery) (Distance) => 27mm Channel Type Value Channel Type Value (Remaining 2e => 46% Amount) 2. - Page 17 Bit7: 0=disable alarm dismiss report 1=enable alarm dismiss report 76 (Set Tissue Box Depth ) 2 Bytes, unit: mm 6 Bytes, Enable(1B)+Start_Time(2B)+Over_Time(2B)+ Week_Day(1B) 75 (Set Hibernate Period) Week_Day: CTRL Bit0=1 Bit7~Bit1: Sunday~Monday Example: 1. Set reporting interval as 70 minutes. ff036810 Channel Type...
- Page 18 Channel Type Value 76 (Set Tissue Box Depth) f4 01=> 01 f4 => 500mm 5. Enable hibernate mode and set the time period as 8:00-21:00 from Monday to Sunday. ff75 01 e001 ec04 ff Channel Type Value 01=> Enable hibernate mode e0 01 =>...
