Clas Ohlson 01038 Quick Start Manual

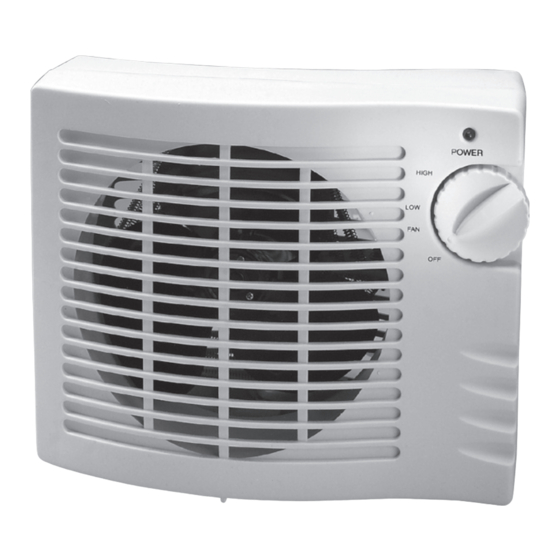

Heating fan, standing • Art.no: 36-1267 • Model: 01038
WARNING!
Carefully read through all the instructions before using the heating fan!
1. The heating fan becomes very hot during use. Do not place the heating fan close to
combustible materials such as e.g. furniture, bedclothes, paper or wood. Minimum
distance to combustible materials are: in front 100 cm, behind and to the sides 50 cm.
2. Do not ever leave children or disabled persons alone with the heating fan.
3. Pull out the plug when the heating fan is not in use.
4. Do not ever use the heating fan if the cord, plug or any other part is damaged or does
not work properly. Do not ever try to repair the heating fan yourself. Leave it to a
professional.
5. The product is only intended for use indoors.
6. Do not use the heater in humid spaces or close to bathtubs or any other container in
which it may fall into.
7. Make sure the cord is not to close to the heat exhaust which may melt it.
8. The heating fan may not in any way be covered. Make sure that no foreign objects
cover or plug ventilation openings or heat exhaust. This could lead to electric shock,
risk of fire, or damage the heating fan.
9. Do not ever use the fan in spaces where flammable liquids/materials or gases
(gasoline, solvents, natural gas etc.) are stored or used.
10. Only use the heating fan as described in the manual. Do not ever try to modify the
product in any way.
11. If an extension cord is used it should be unwound to avoid overheating. Max.
extension is 25 m and the diameter core wires must be at least 1.5mm
GREAT BRITAIN For consumer contact, please visit www.clasohlson.co.uk and click on customer service.
2 .
Indicator light
Function selector
ENGLISH
Use
1. Unpack the heating fan and make sure the product has not been damaged during
transportation and no packaging material has lodged in the exhaust.
2. Place the heating fan on a solid and fireproof surface.
3. Set the function selector in the (OFF) position and connect the plug to a wall socket.
The indicator light is lit when the fan is not in the OFF position.
4. Select a function by turning the function selector:
Off = Turned off
Fan =
Fan only
Low = Low heat (1000W)
High =
High heat (2000W)
Overheating protection
The heating fan is equipped with overheating protection to prevent fire and the product.
The heating fan is turned off automatically when overheated. By pulling out the plug and
letting the heating fan cool off for at least 20 minutes the overheating protection is reset
and the heating fan is ready to use again.
Care
1. Set the function selector to the OFF position and pull out the plug.
2. Use only a damp cloth when cleaning, never use strong cleaners or solvents. Never try
to open and clean the heating fan on the inside.
3. Use a vacuum cleaner and clean the outside through the openings to remove dust if
necessary.
4. The fan is lubricated at the factory and never needs to be lubricated or oiled.
Specifications
Voltage: 230 V AC, 50 Hz
Output Power: Max 2000W
Safety classification: IP 20
