Installation Information

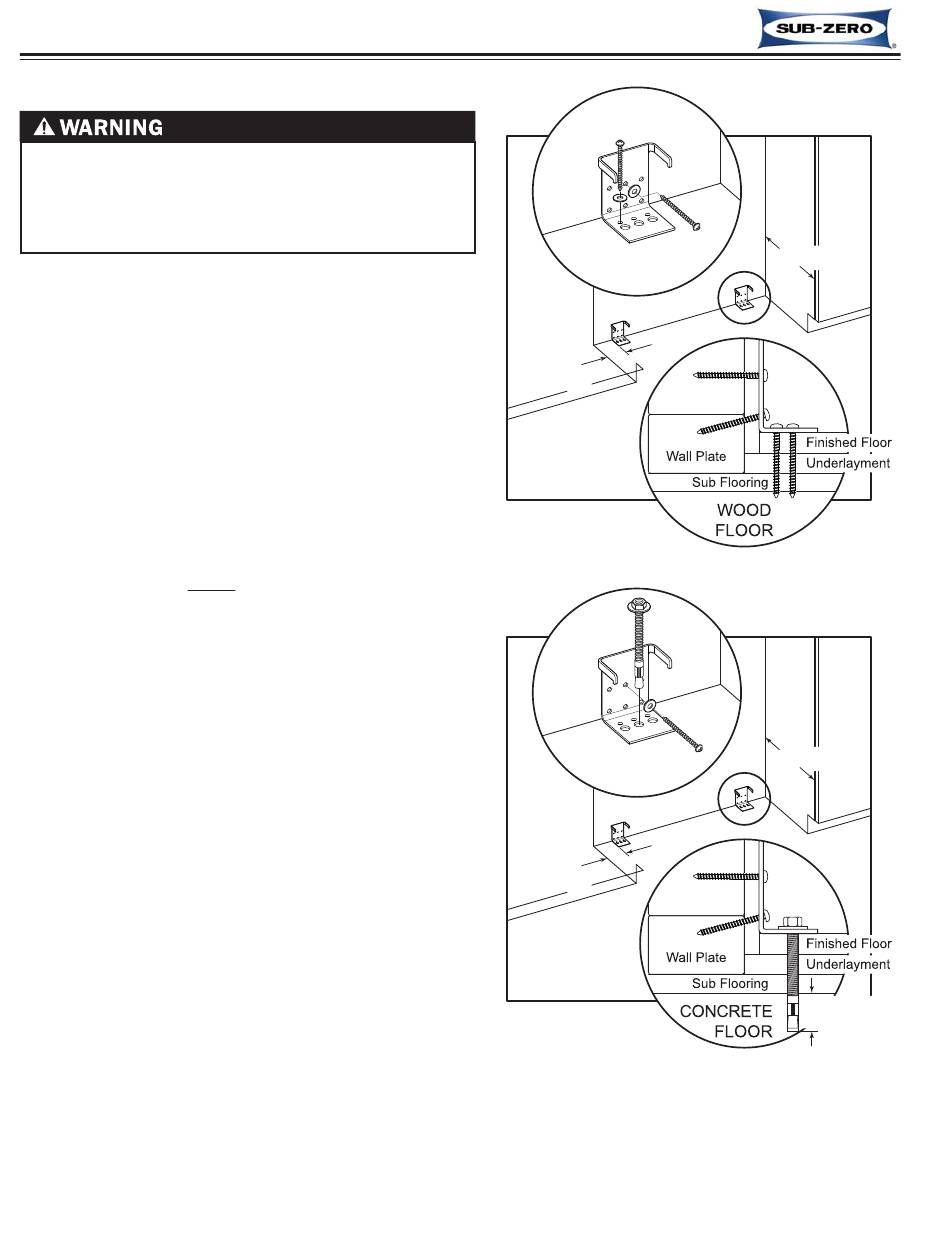

Anti-Tip Bracket Installation
THE UNIT COULD TIP FORWARD UNDER CERTAIN
LOAD CONDITIONS.
ANTI-TIP BRACKETS AND EXTEND LEVELERS TO
FLOOR ACCORDING TO INSTALLATION MANUAL
COULD RESULT IN SERIOUS INJURY OR DEATH.
IMPORTANT NOTE:
Placement of the two anti-tip brackets
is critical. They must be installed 610 mm (24'') from the
front of the opening to the back of the brackets and a mini-
mum of 102 mm (4'') from the sides of the rough opening.
This depth will increase to 665 mm (26-3/16'') for a flush
inset installation based on 19 mm (3/4'') thick decorative
panels. Failure to properly position the anti-tip brackets will
prevent them from engaging the unit should it tip forward.
Standard Installation Procedure:
The two anti-tip brackets must be located 610 mm (24'')
back from front of rough opening and a minimum of 102
mm (4'') from sides of rough opening. This will ensure that
ant-tip brackets properly engage anti-tip bar at back of unit.
NOTE:
Both brackets MUST be used.
Wood Floor Applications:
After properly locating anti-tip brackets in rough opening,
drill pilot holes 121 mm (3/16'') diameter maximum. Then,
use the #12 X 2-1/2" PH Pan HD Zinc Screws and #12 Flat
Washers to secure the brackets in place.
NOTES:
• Make sure screws penetrate flooring material and wall
stud or wall plate a minimum of 19 mm (3/4'').
• If #12 X 2-1/2'' screws do not hit a wall stud or the wall
plate in any of the brackets back holes, use the #8-18 X
1-1/4" PH Truss HD Screws and #12 Flat Washers with
the Nylon Zip-It Wall Anchors.
Concrete Floor Applications:
After properly locating anti-tip brackets in rough opening,
drill pilot holes 121 mm (3/16'') diameter maximum in the
wall studs and/or wall plate, then drill 242 mm (3/8'') diame-
ter holes into the concrete a minimum of 1/2" (13 mm)
deep. Then, use the #12 X 2-1/2" PH Pan HD Zinc Screws
and #12 Flat Washers to secure the brackets to the wall,
and use the 3/8"-16 X 3-3/4" Wedge Anchors to secure the
brackets to the floor.
NOTES:
• Make sure screws penetrate wall stud or wall plate a
minimum of 3/4'' (19 mm).
• If #12 X 2-1/2'' screws do not hit a wall stud or the wall
plate in any of the brackets back holes, use the#8-18 X
1-1/4" PH Truss HD Screws and #12 Flat Washers with
the Nylon Zip-It Wall Anchors.
7025630 - Revision A - April, 2012
International Built-In
International Built-In
FAILURE TO INSTALL BOTH
(See Figure 2-4)
(See Figure 2-5)
(ICBBI)
(ICBBI)
102 mm
MINIMUM
(4" MINIMUM)
Figure 2-4
102 mm
MINIMUM
(4" MINIMUM)
Figure 2-5
2-6
Series
Series
610 mm
(24")
610 mm
(24")
13 mm
MIN
(1/2" MIN)
