Installation Information
Door and Drawer Panels
Regardless of the installation application, it may be necessary to remove and/or install a door or drawer panel. To
do this, the handle or handle-side trim will need to be removed first. The handle or handle-side trim is attached to
the door or drawer with screws, and these screws are concealed by a screw cover. Follow the procedures below to
access the mounting screws and remove a handle or handle-side trim in order to remove and/or install a door or
drawer panel.
IMPORTANT NOTE: The weight of a door or drawer panel cannot exceed 23 kg (50 lbs).
IMPORTANT NOTE: Depending on the thickness of a wood panel used on a framed application, it may be neces-
sary to router a recessed area into the panel for proper finger clearance under the door handle. Optional extended
handles are also available that offer an additional 19 mm (3/4'') of clearance under the handle.
Door Handle / Handle-Side Trim Removal Procedure:
1. At the top of the door, insert a flat blade screwdriver into the channel of the screw cover and push the cover
away form the handle or handle-side trim, disengaging the screw cover from the clips
15B).
2. With a T-20, 6-lobe Torx type bit, extract the handle or handle-side trim mounting screws and pull the handle or
trim from the door (See Figures 2-16A and

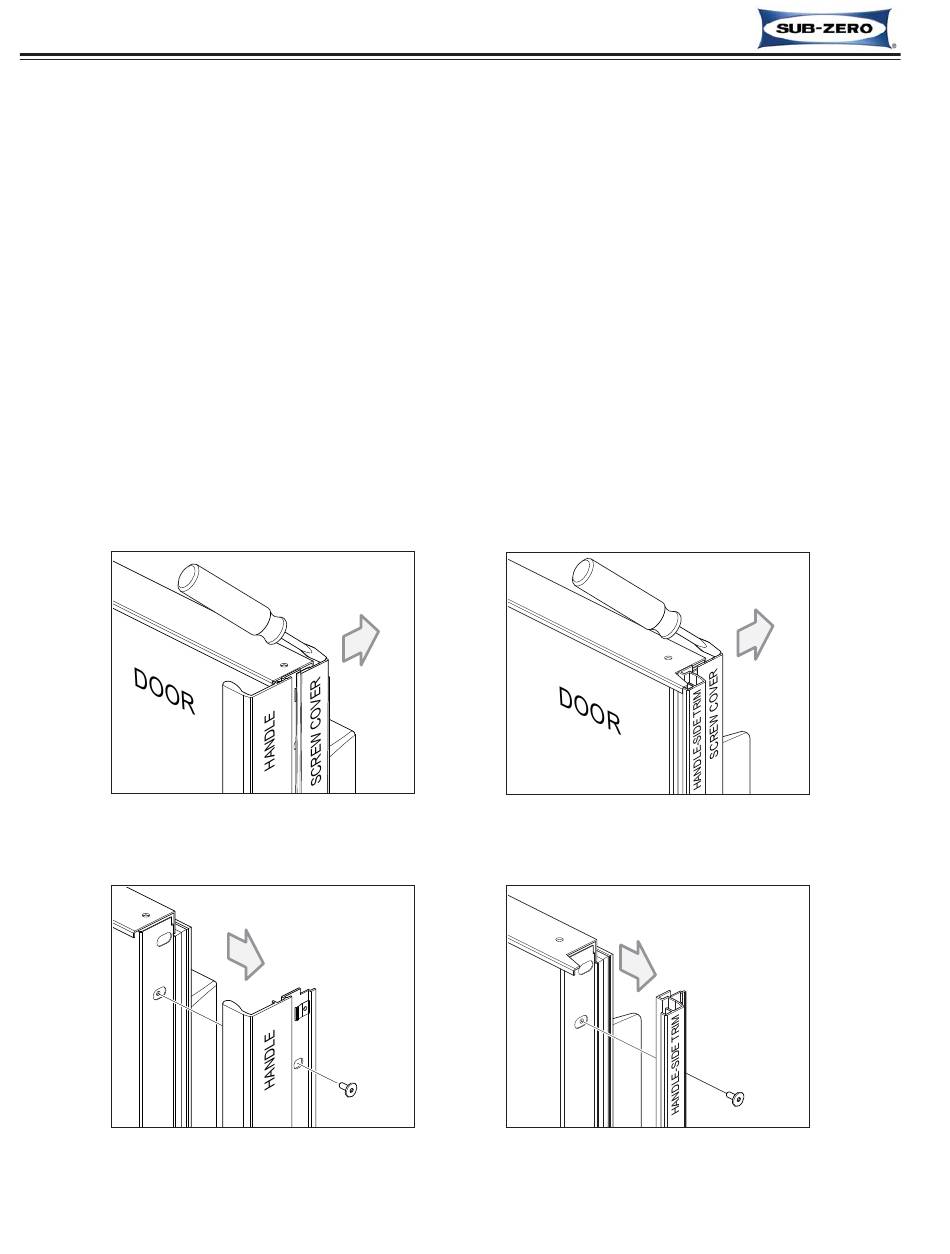

Figure 2-15A. Screw Cover Removal
Figure 2-16A. Handle Removal
7025630 - Revision A - April, 2012
International Built-In
International Built-In
2-16B).
with Handle
(ICBBI)
(ICBBI)
Figure 2-15B. Screw Cover Removal
with Handle-Side Trim
Figure 2-16B. Handle-Side Trim
Removal
2-12
Series
Series
(See Figures 2-15A and 2-
