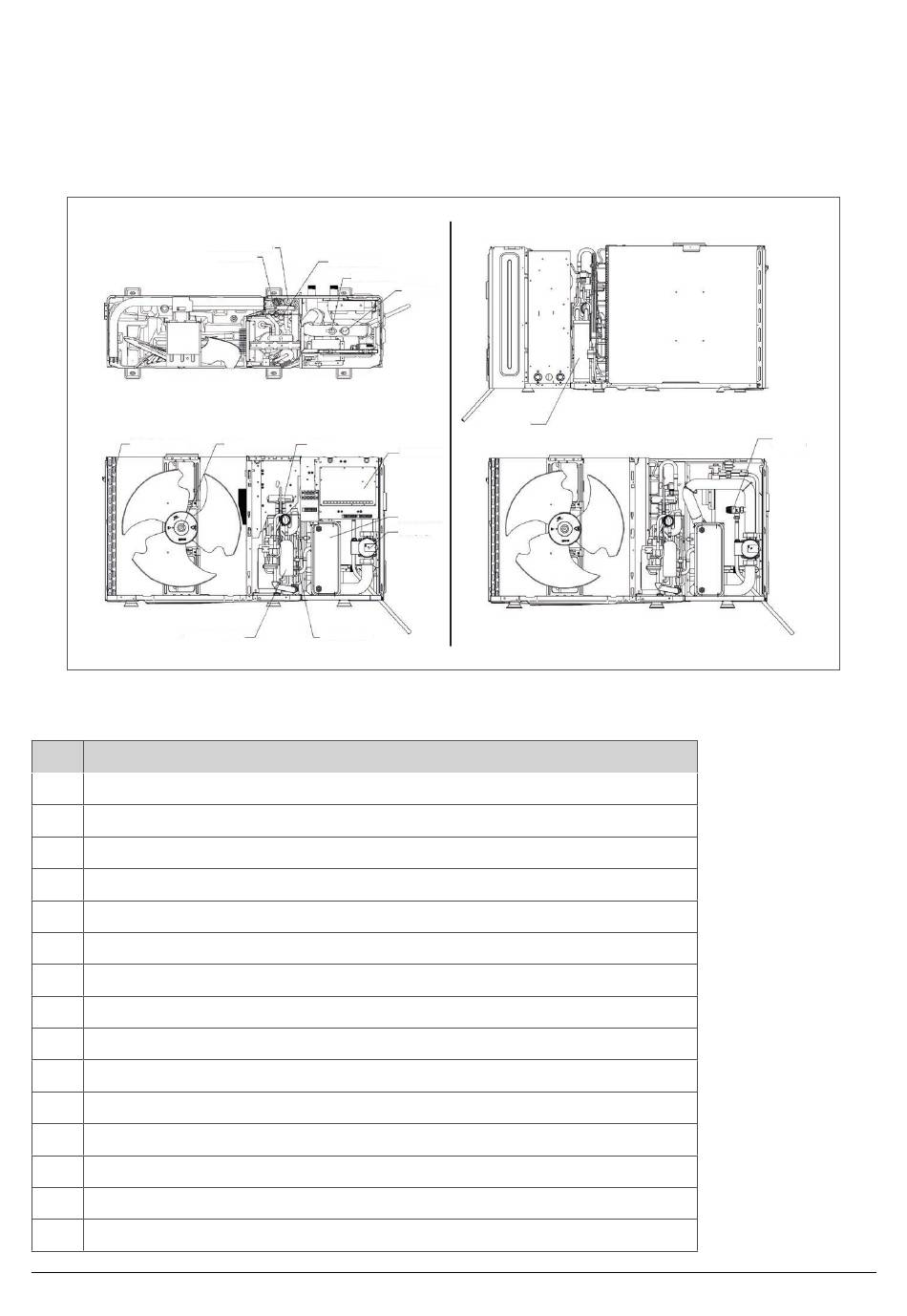

LAYOUT OF COMPONENTS

2. Layout of components

Sizes 2.1 - 3.1

2.1
6
N° Component
1 Pressure sensor
2 Electronic expansion valve
3 High pressure switch
4 Water flow switch
5 Air relief valve
6 Source exchanger: finned coil
7 Fan
8 4-way valve
9 Main board
10 Water side heat exchanger
11 Water circulator
12 Low pressure switch
13 Compressor inverter
14 Gas-suction separator
15 Water pressure relief valve
2
1
3
4
7 8
13 12
5
14
9
10
11
6
15
