REFRIGERATION CIRCUIT

3. Refrigeration circuit

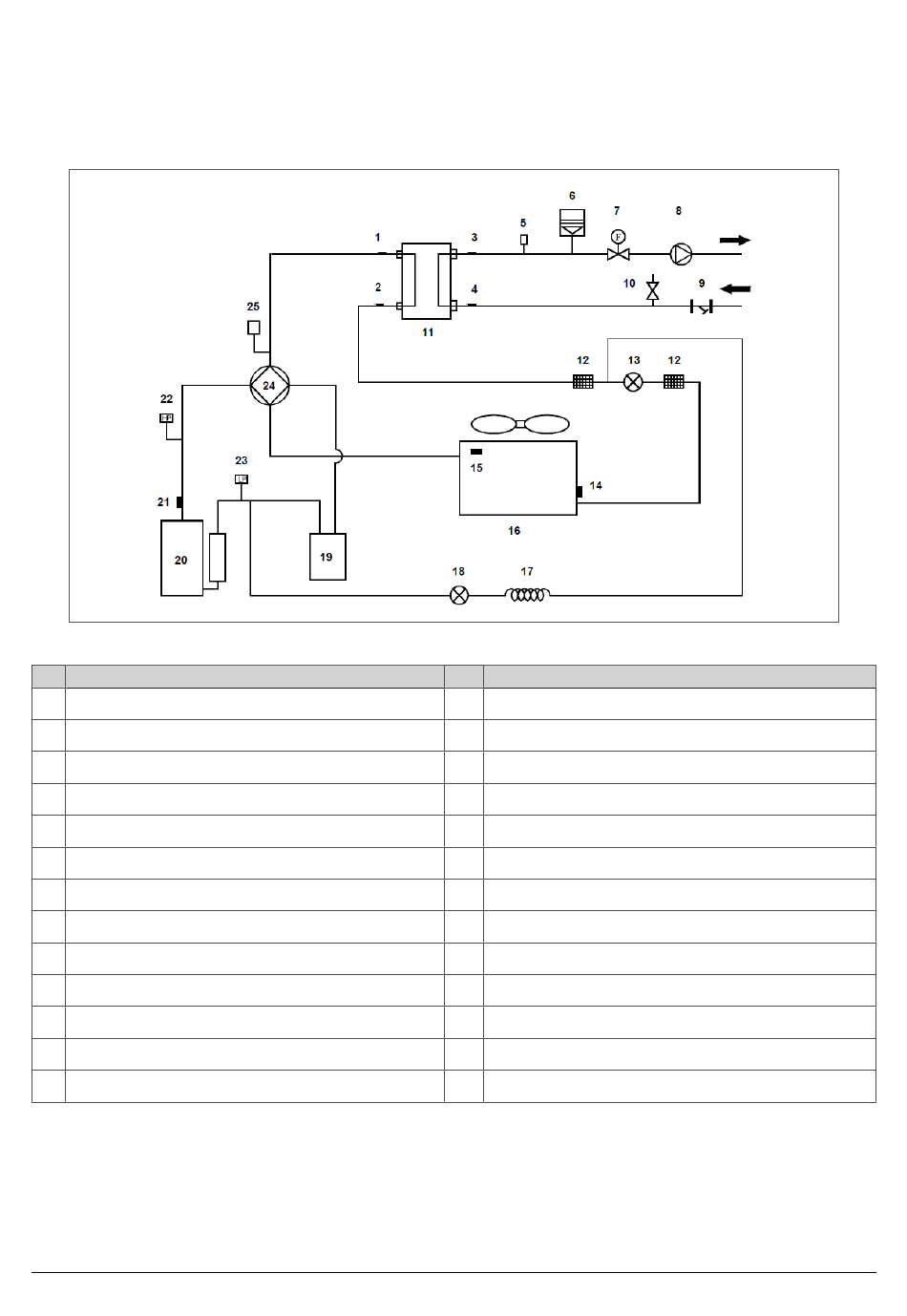

Refrigerant circuit diagram

3.1
1 Refrigerant temperature sensor - gas line
2 Refrigerant temperature sensor - liquid line
3 Water outlet temperature sensor
4 Water inlet temperature sensor
5 Automatic vent
6 Expansion vessel
7 Flow switch
8 Circulator
9 Y filter
10 Safety valve
11 Water side exchanger
12 Filter
13 Electronic expansion valve
14 Evaporation (cooling) / condensing (heating) sensor
15 Outdoor temperature sensor
16 Air side exchanger
17 Capillary
18 Solenoid valve
19 Suction separator
20 Compressor
21 Discharge temperature sensor
22 HP-pressure switch
23 LP-pressure switch
24 4-way valve
25 Pressure sensor
10
